Battery Pack Powerwall
Battery Pack Powerwall

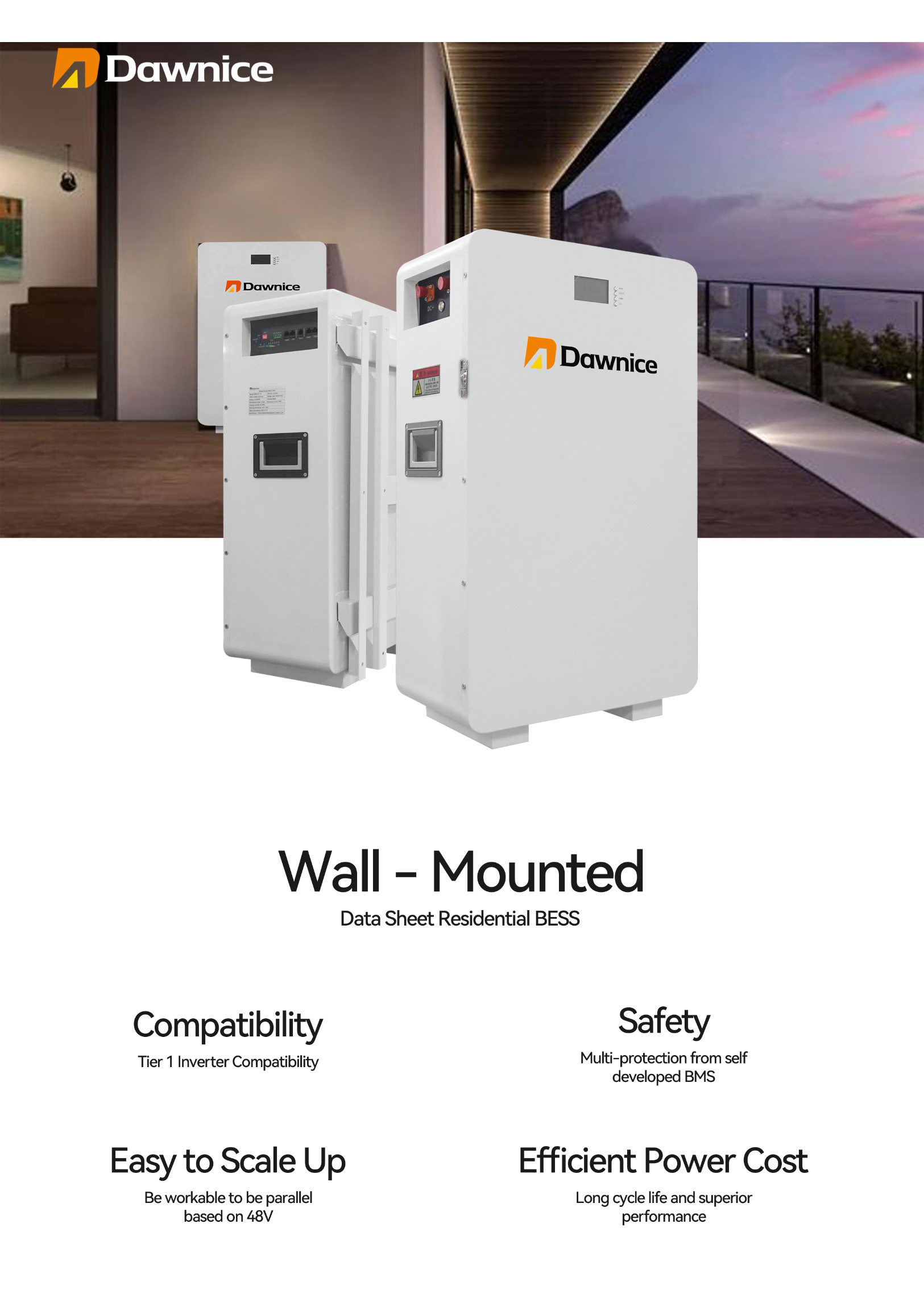

Dawnice Lithium LiFePo4 Battery Pack Powerwall Home Battery 48V 300Ah 200Ah 100Ah 15Kwh 10Kwh 5Kwh for Off-Grid / Hybrid Solar Storage System
- Product Name: Powerwall; Lithium Battery Pack; LiFePo4 Battery Pack;
Model Number: DW- PW10ESS-L
- Warranty: 10 years
- Anode Material: LFP
- Rechargeable: Yes
Application: Solar Power System Home
- Place of Origin: China
- ODM & OEM: Supported
- Certification: MSDS, UN38.3, CE, IEC62619 (Cell)
- Life Cycling(0.5C&25℃): 6000 cycles @ 0.5C；80%DOD
- Scalable (Parallel function) Yes, maximum 16 pack
- Nominal Voltage 51.2V(44.8V – 57.6V)

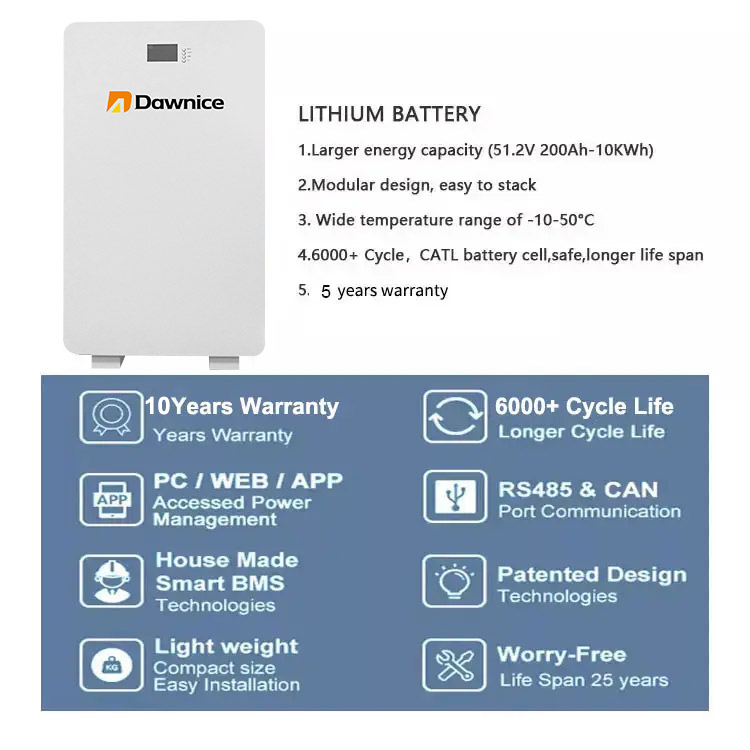

Key product features and benefits
- Larger Capacity & Higher Supporting Power: Up to 15KWh energy per unit.
- Parallel Supported:Max.16pcs parallel
- High Quality: A Grade lithium battery cell
- Widely Application: Off-Grid / Hybrid Solar Storage System; Industry Project etc.
- BMS with RS485/CAN:100% Protection, available for most inverters
- Long Service Lifespan: Up to 6000 cycles @ 0.5C；80%DOD
The Dawnice DW-48V 200Ah, a Lithium Iron Phosphate Battery, provides cutting-edge technology that is both the safest and most durable lithium chemistry. With the ability to reach over 5000 cycles, the DW-48V 200Ah can be recharged numerous times while delivering a 100% depth of discharge. This battery is ideal for various applications such as solar, Telecom, Wind, Marine RV and deep cycle applications. Furthermore, it can handle more than 200 amps of continuous charge or discharge and up to 2000 amps for starting / peak energy.
What can Dawnice do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

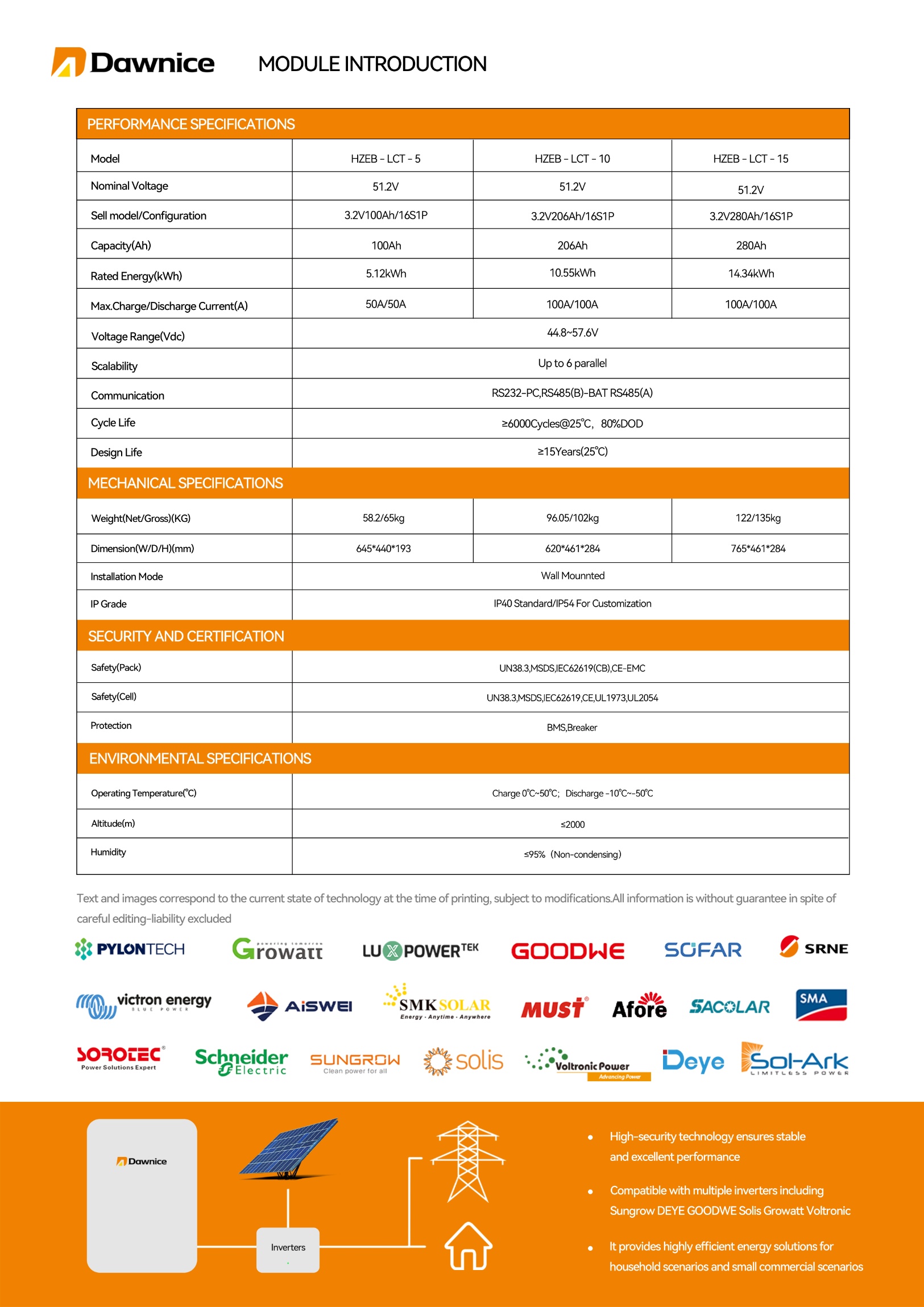

| 5-15KWH Low Voltage Powerwall Energy Storage System | |||
| Model Capacity | DW- PW5ESS-LV | DW- PW10ESS-LV | DW- PW15ESS-LV |
| Battery type | LiFePo4 | ||
| Capacity Energy | 5.12kWh | 10.24kWh | 15.36kWh |
| Model | 100Ah | 100Ah | 100Ah |
| Model | 16S1P | 16S2P | 16S3P |
| Suggested SOC | 10-100% | ||
| Nominal Voltage | 51.2V | ||
| Operation Voltage | 44.8V – 57.6V | ||
| Maximum Charging/ Discharging Current | 50A/50A | ||
| BMS | Robust Multi point monitoring BMS pre installed | ||
| Scalable (Parallel function) | Yes, maximum 16 packs | ||
| Life Cycling (0.5C&25℃) | 6000 cycles @ 0.5C；80%DOD | ||
| Warranty | 10 years | ||
| Operation Temperature | Chrage : 0 – 45℃, Dischrage : -20 – 45℃ | ||
| Storage Temperature | -20 – 45℃ | ||
| Net Weight | 44kG | 75kG | 110 |
| Dimensions (H x W x D) | 450x515x165 mm | 740x640x165 mm | 865x640x165 mm |
| Certifications | MSDS, UN38.3, CE, IEC62619 (Cell), UL(Cell) | ||
| IP Grade | IP54 | ||
| Communication | RS232, RS485, CAN (Compitable with most brand inverters in market) | ||
