Dawnice Lithium Battery Storage Container | 1000kWh & 2000kWh BESS
Model
Rated Power
Nominal Energy
Cell Type
Number of Battery Cycles
Cooling Method
Net Weight
Ingress Protection
Corrosion Protection Grade
ESS500-1045 / ESS1000-2089
500 kW / 1000 kW
1.045 MWh / 2.089 MWh
314Ah (LFP)
≥ 8000 Cycles
Intelligent air cooling
21,000 kg / 38,000 kg
IP54 (Dust and waterproof)
C5
Model:ESS500-1045 / ESS1000-2089
Rated Power:500 kW / 1000 kW
Nominal Energy:1.045 MWh / 2.089 MWh
Cell Type:314Ah (LFP)
Number of Battery Cycles:≥ 8000 Cycles
Cooling Method:Intelligent air cooling
Net Weight:21,000 kg / 38,000 kg
Ingress Protection:IP54 (Dust and waterproof)
Corrosion Protection Grade:C5
Product Introduction

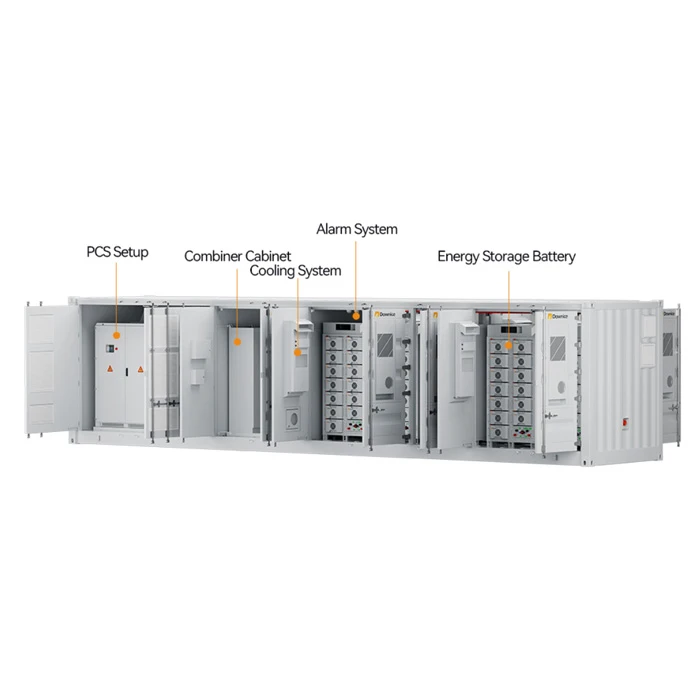

Dawnice presents an advanced fireproof lithium battery container solution, seamlessly integrating high-capacity 3.2V/314Ah LFP cells to deliver robust 1MWh (500kW) and 2MWh (1MW) turnkey battery systems. Engineered with multi-mode flexibility, it supports C&I peak shaving, emergency power, and grid regulation. The premium integrated enclosure boasts a C5 corrosion rating, IP54 protection, and smart air cooling. For maximum safety, it features a specialized FM200/NOVEC1230 fire suppression setup and an isolated layout to block thermal runaway.
Product Features
Advanced Safety Monitoring
Cloud-Based Smart Management
Eco-Friendly Operation
Grade A LiFePO4 Cells
High Cycle Life
High-Efficiency Conversion
Modular Scalability
Proactive Safety Management
Real-Time Status Monitoring
Sleek Aesthetic Design
FUNCTIONALITY

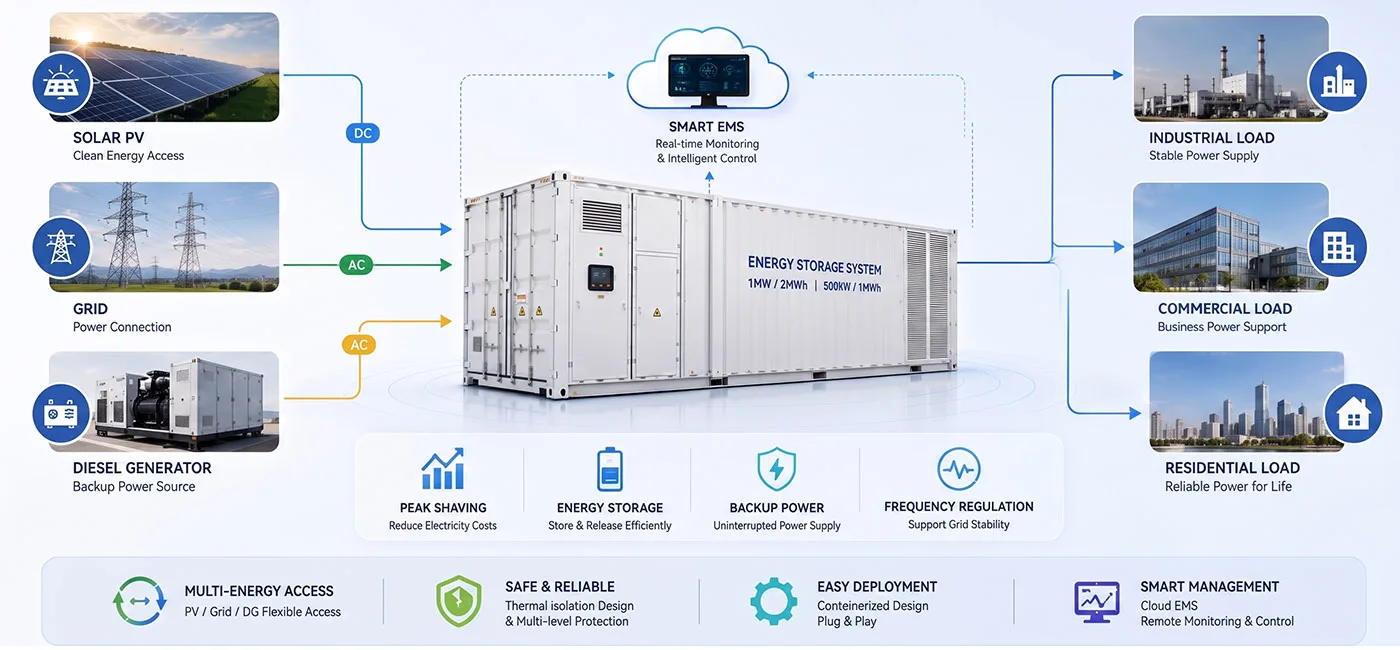

Dawnice Commercial BESS: Your Ultimate Turnkey Energy Solution
This robust 1000kW / 2000kWh containerized energy storage system powers diverse utility and industrial applications:
- C&I Peak Shaving: Reduces energy costs by balancing grid demand and filling valleys during high-tariff periods.
- Emergency Backup Power: Ensures uninterrupted grid-side and off-grid operations with intelligent multi-mode flexibility.
- Grid Regulation: Enhances stability through grid-tied peak regulation and advanced frequency modulation.
| Parameter / Specification | ESS1000-2089 (2MWh Battery) | ESS500-1045 (1MWh Battery) |
|---|---|---|
| AC Performance Data | ||
| Rated Power (kW) | 1000 kW | 500 kW |
| Rated Voltage (V) | 400 V | 400 V |
| Rated Current (A) | 1570 A | 785 A |
| Voltage Range (V) | 320V – 460V | 320V – 460V |
| Rated Frequency / Range | 50/60Hz (45-55Hz / 55-65Hz) | 50/60Hz (45-55Hz / 55-65Hz) |
| THDi (On-grid) / THDu (Off-grid) | <3% / <1% linear (<5% non-linear) | <3% / <1% linear (<5% non-linear) |
| Power Factor / Overload | 1 (0.8 leading/lagging) / 110% Long-term | 1 (0.8 leading/lagging) / 110% Long-term |
| On-grid/Off-grid Switching | Supported | Supported |
| Battery Pack Data | ||
| Cell Type / Capacity | Lithium Iron Phosphate (3.2V / 314Ah) | Lithium Iron Phosphate (3.2V / 314Ah) |
| Nominal Energy (MWh) | 2.089 MWh | 1.045 MWh |
| Nominal Voltage / Config | 665.6 V (10P208S) | 665.6 V (5P208S) |
| Working Voltage Range | 582.4 V – 748.8 V | 582.4 V – 748.8 V |
| Max. Charge/Discharge Rate | 0.5C @ 25°C | 0.5C @ 25°C |
| Number of Battery Cycles | ≥ 8000 Cycles | ≥ 8000 Cycles |
| Enclosure & System Data | ||
| Dimensions / Container Size | 12,192 x 2,438 x 2,896 mm (40Ft HQ style) | Standard 20Ft Container |
| Net Weight (kg) | 38,000 kg | 21,000 kg |
| Cooling Method | Intelligent Air Cooling | Intelligent Air Cooling |
| Fire Extinguishing System | FM200 / NOVEC1230 | FM200 / NOVEC1230 |
| Ingress / Corrosion Protect | IP54 / C5 Grade | IP54 / C5 Grade |
| Display & Communication | Touch LCD + Cloud (RS485, TCP/IP) | Touch LCD + Cloud (RS485, TCP/IP) |
Production, Delivery & Installation Support Process
- Production: Custom manufacturing based on order specifications.
- Delivery: Secure packaging and timely global shipping.
- Installation: On-site support and professional setup by certified technicians.
- Training: Comprehensive operation and maintenance guidance.
