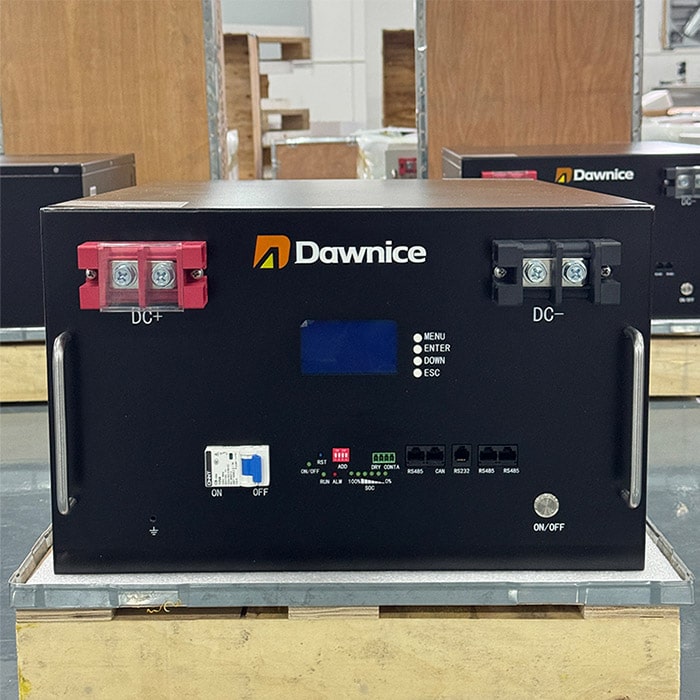

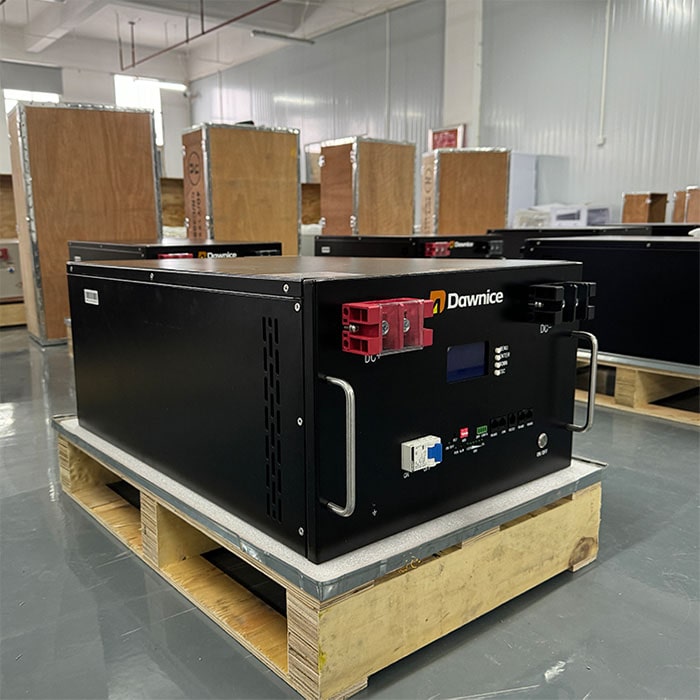

48V 300Ah Lithium Battery Introduction


- Unmatched Energy Capacity
With a 14.34 kWh energy capacity, the 48V 300Ah battery is designed for high-demand applications, making it ideal for large-scale energy storage systems. - High Power Output for Heavy-Duty Applications
Supports 150A discharge current (customizable), enabling it to power heavy machinery, data centers, and large-scale solar inverters. - Ensures stable performance even under peak load conditions.
- Modular Design for Scalability

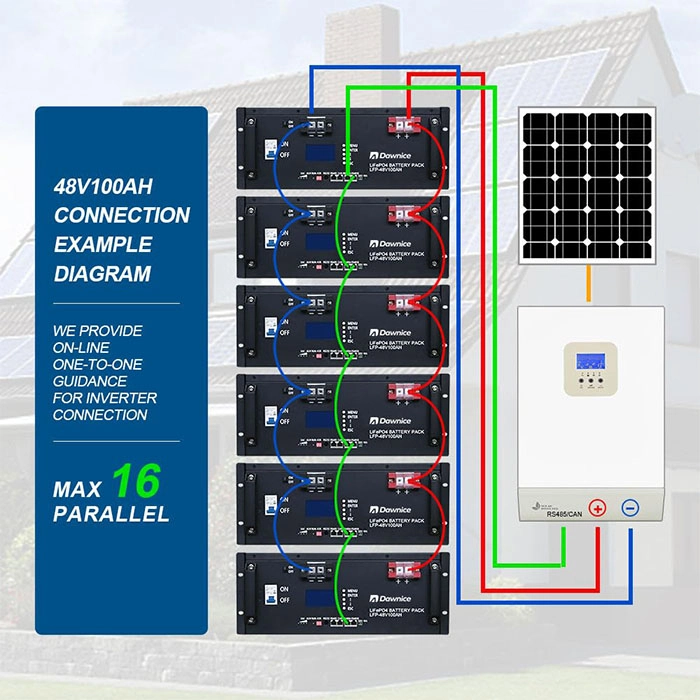

Scalable up to 6 parallel connections, allowing systems to expand up to 86.04 kWh for ultra-large energy storage needs. - Ideal for projects requiring flexible and future-proof solar energy solutions.

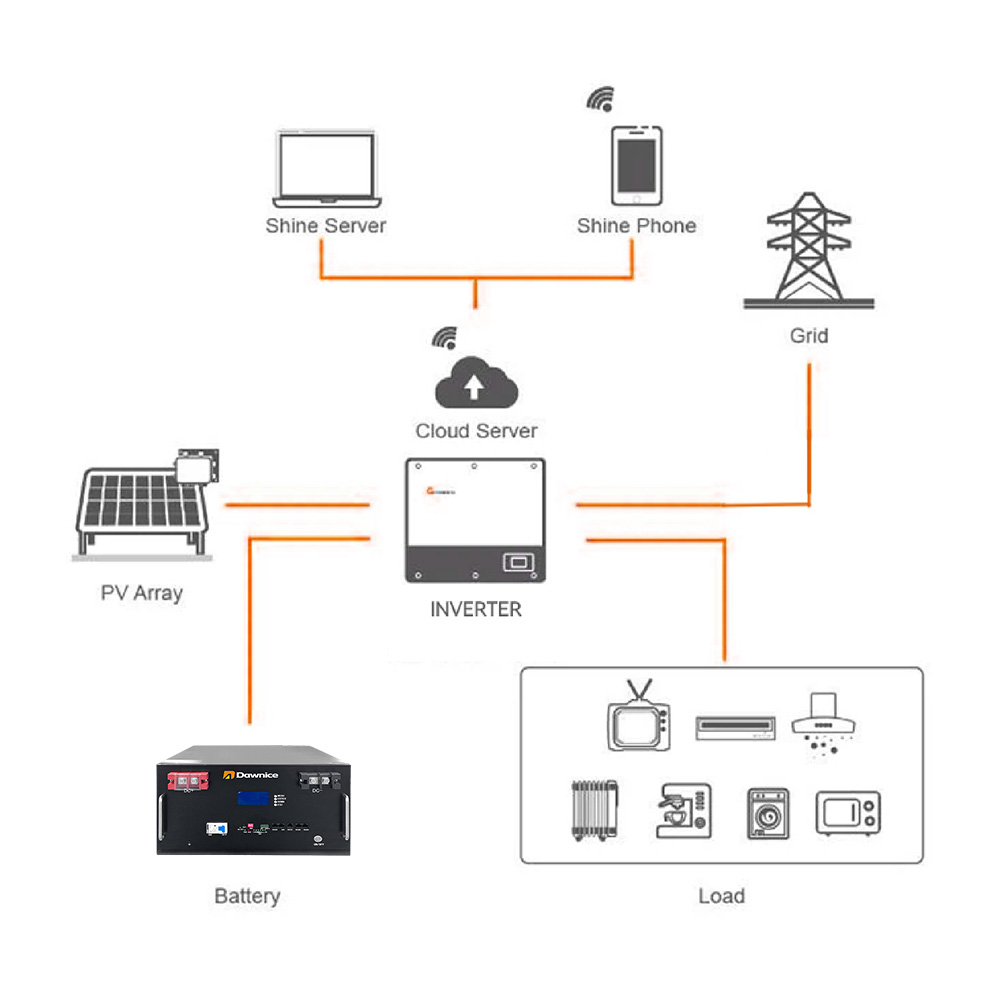

Connection

- Global Market Reach
Trusted by customers in over 150 countries, with a strong sales and after-sales network in Europe, the Americas, and Southeast Asia. - Designed to meet international standards, making it a reliable choice for global projects.
- Customizable Solutions
Offers customizable configurations to meet specific project requirements, including higher discharge currents and expanded parallel connections. - Tailored solutions for industries such as telecommunications, mining, and marine energy storage.
- Wide Operating Range
Operates efficiently in temperatures ranging from -10°C to 50°C, making it suitable for extreme climates.
Inverter Match Lists

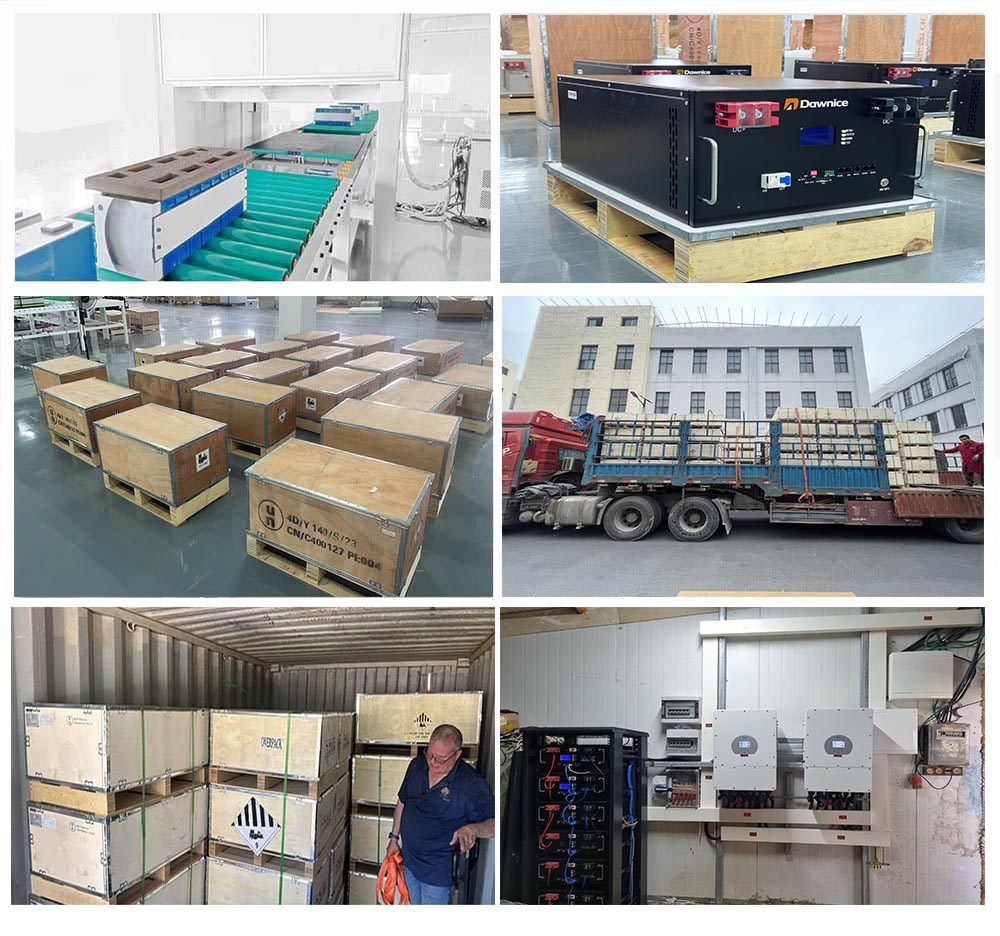

Battery From Produce to Install

| Model | HZEB-HCT-15 | |
| Nominal Voltage | 51.2V | |
| Sell model/Configuration | 3.2V280Ah/16S1P | |
| Capacity(Ah) | 280Ah | |
| Rated Energy(kWh) | 14.34kWh | |
| Max.Charge/Discharge Current(A) | 100A/150A(For customiztion) | |
| Voltage Range(Vdc) | 44.8~57.6V | |
| Scalability | 6 parallel(For customiztion) | |
| Communication | CAN/RS485 | |
| Cycle Life | ≥6000Cycles@25℃,80%DOD | |
| Design Life | ≥15Years(25°C) | |
| MECHANICAL SPECIFICATIONS | ||
| Weight(kg) | 115kg | |
| Dimension(L/W/H)(mm) | 432*795*267mm | |
| Installation Mode | On the ground | |
| IP Grade | IP20 | |
| SECURITY AND CERTIFICATION | ||
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |
| Protection | BMS,Breaker | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operating Temperature(°C) | Charge 0℃~50℃; Discharge-10℃~-50℃ | |
| Altitude(m) | ≤2000m | |
| Humidity | ≤90% (Non-condensing) | |
