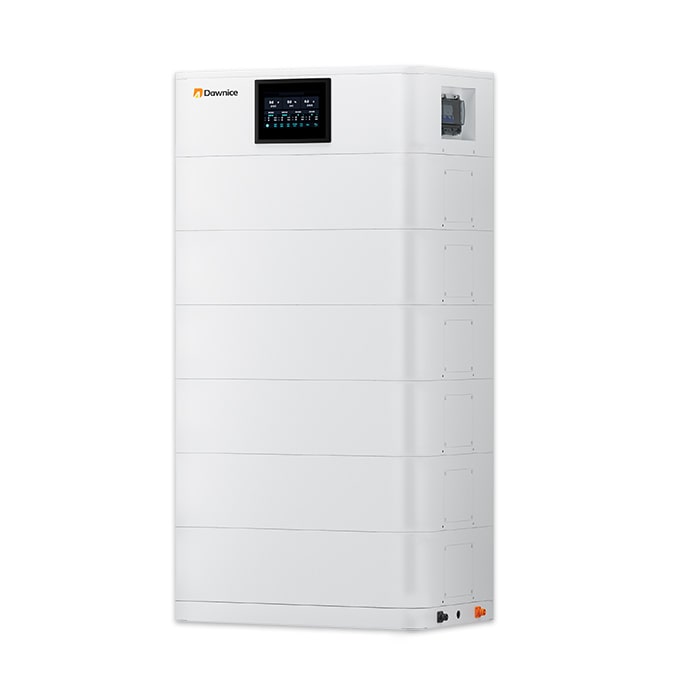

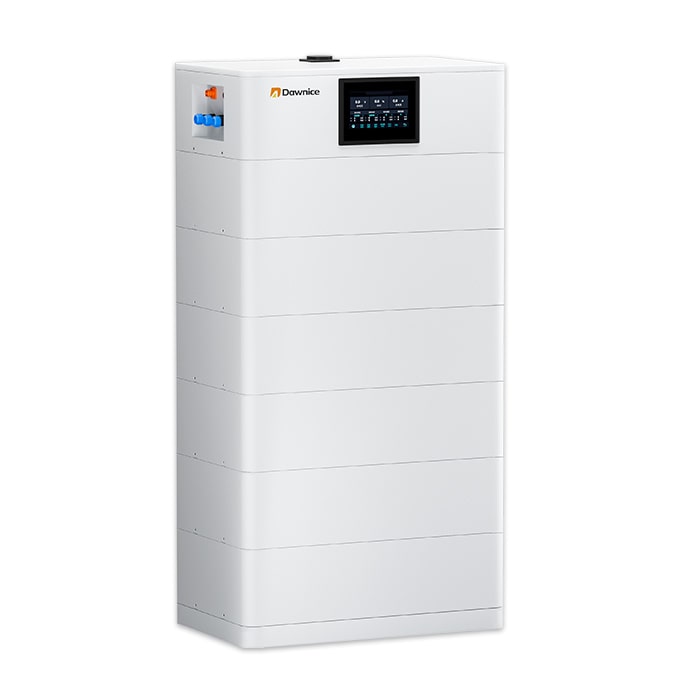

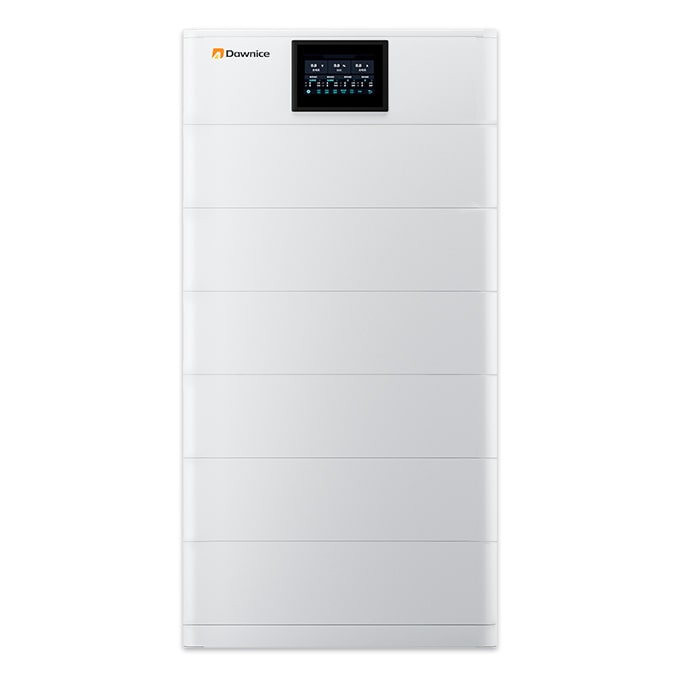

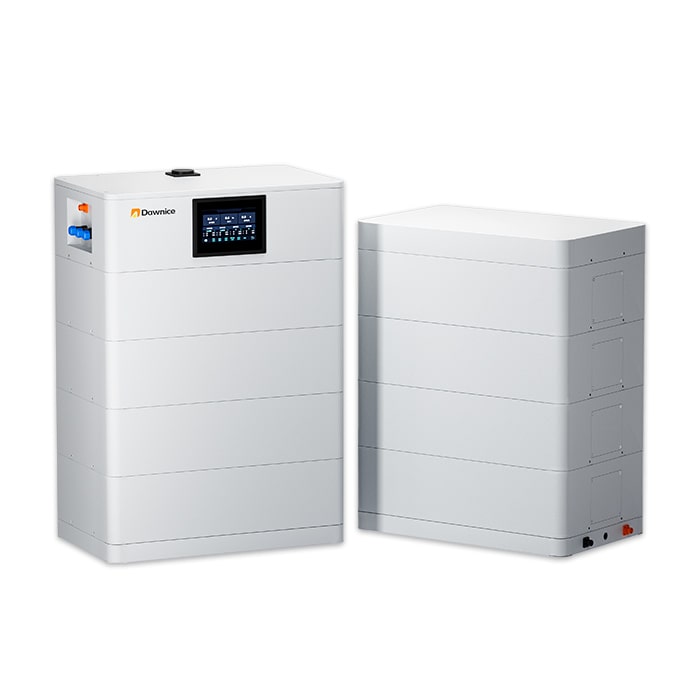

Dawnice 48v 400ah lifepo4 Stackable Battery Pack 20KW Solar Lithium Battery Bank Price

Product Name: Dawnice Stackable 20kwh lithium ion battery
Model Number: DW-lifepo4 battery 48v 400ah
Warranty: 10 years
Anode Material: Lithium Ion
Application: Solar System, Power Back Up, UPS system
Communication Port: CAN, RS232, RS485
Features: High Energy Density
Certification: MSDS, UN38.3, CE, IEC62619 (Cell)
Life Cycling(0.5C&25℃): 6000 cycles @ 0.5C；80%DOD

Inquire

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Email

Contact Us

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Email

Contact Us

Dawnice 20kwh Battery Storage Key product features

Modular Design: Light weight, small size
Larger Capacity & Higher Supporting Power: 25KWh to 100KWh
High Quality: Grade A Lithium Lifepo4 Cells
Widely Application: Off-Grid / Hybrid Solar Storage System; Industry Project etc.
BMS with RS485/CAN:100% Protection, high compatibility, available for most inverters
Long Service Lifespan: Up to 6000 cycles @ 0.5C；80%DOD

The Dawnice 20kwh battery pack, a Lithium Iron Phosphate Battery, provides cutting-edge technology that is both the safest and most durable lithium chemistry. With the ability to reach over 5000 cycles, the 20kw battery bank can be recharged numerous times while delivering a 100% depth of discharge. This 20kw home battery is ideal for various applications such as solar, Telecom, Wind, Marine RV and deep cycle applications. Furthermore, it can handle more than 200 amps of continuous charge or discharge and up to 2000 amps for starting / peak energy.

What can Dawnice do?

High Quality Products
DDP Service
Friendly and Professional Customer Service
Solar system solution design
Solar inverter, lithium battery storage system also are available.
Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

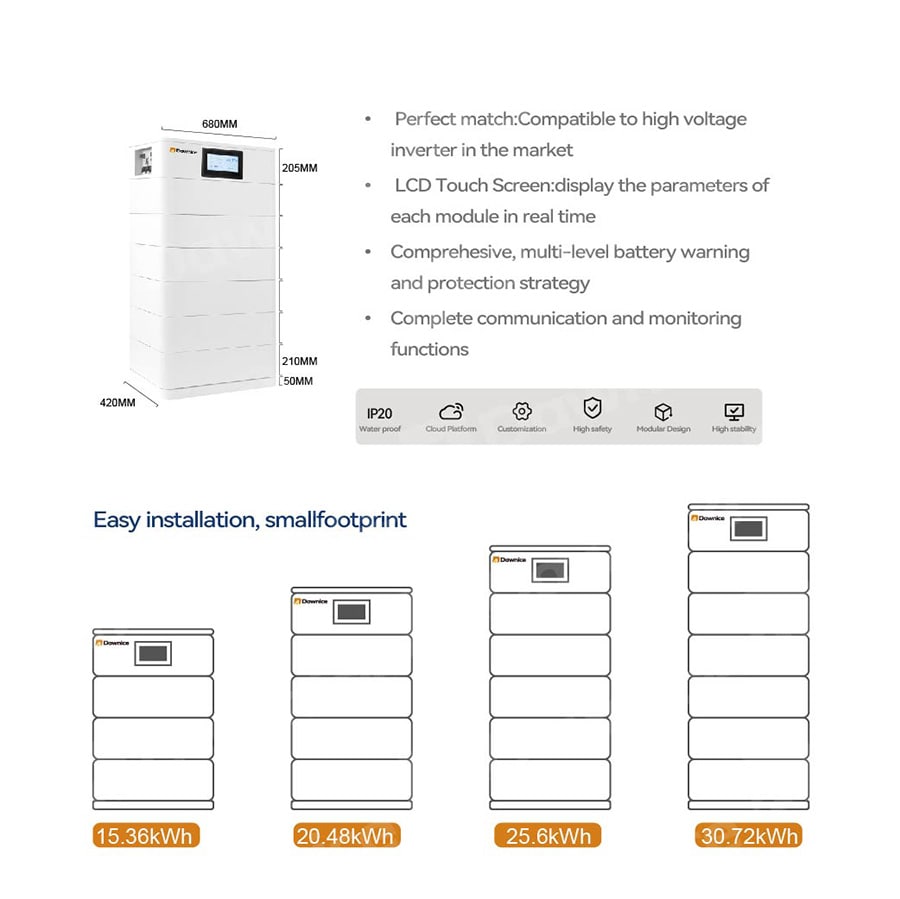

5-25KWH Ground Eco HV Battery Energy Storage System
Model Capacity	DW-Elebox5 -HV	DW-Elebox7 -HV	DW-Elebox10 -HV	DW-Elebox12 -HV	DW-Elebox15 -HV	DW-Elebox17 -HV	DW-Elebox20 -HV	DW-Elebox23 -HV	DW-Elebox25 -HV
System Demo
Battery Module	ELEBOX-HV—2.56 (2.56kWh, 51.2V, 36.3kg,593/355/146.5)
Number Of Modules	2	3	4	5	6	7	8	9	10
Energy Capability	5.12kWh	7.68kWh	10.24kWh	12.8kWh	15.36kWh	17.92kWh	20.48kWh	23.04kWh	25.6kWh
Nominal Voltage	102.4V	153.6V	204.8V	256V	307.2V	358.4V	409.6V	460.8V	512V
Operation Voltage Range	94.4-113.6V	141.6-170.4V	188.8-227.2V	236-284V	283.2-340.8V	330.4-397.6V	377.6-454.4V	424.8-511.2V	472-568V
Dimension mm (H/W/D)	424/593/355	570.5/593/355	717/593/355	863.5/593/355	1010/593/3551	1157/593/355	1303/593/355	1450/593/355	1596/593/355
Weight	105.5kgs	141.5kgs	177.5kgs	213.5kgs	249.5kgs	285.5kgs	321.5kgs	357.5kgs	393.5kgs
Battery Type	Cobalt free Lithium Iron Phosphate (LFP)
Standard Charge/ Discharge Current	25A@0.5C
IP Protection	IP 65
Installation	Wall-mounted or Floor Installation
Operation Temperature Feature	0 ℃to 45℃
DOD	80%
Cycle Life	6000 cycles @ 0.5C；80%DOD
Warranty (0.5C&25℃)	5/10 Years
Communication Port	CAN/RS485
Certification	CE, IEC62619(Cell&Pack),MSDS,ROHS,UN38.3
