48v 100ah lithium battery

Dawnice 48V 100Ah 5KWH Home Lithium Ion Batteries 5KWH Solar Power Wall Battery

  • Product Name: Powerwall; Lithium Battery Pack; LiFePo4 Battery Pack;

  • Model Number: DW- PW5ESS-L

  • Warranty: 10 years
  • Anode Material: LFP
  • Rechargeable: Yes

  • Application: Solar Power System Home

  • Place of Origin: China
  • ODM & OEM: Supported
  • Certification: MSDS, UN38.3, CE, IEC62619 (Cell)
  • Life Cycling(0.5C&25℃): 6000 cycles @ 0.5C；80%DOD
  • Scalable (Parallel function) Yes, maximum 16 pack
  • Nominal Voltage 51.2V(44.8V – 57.6V)

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Key product features and benefits

  • Larger Capacity & Higher Supporting Power: Up to 15KWh energy per unit.
  • Parallel Supported:Max.16pcs parallel
  • High Quality: A Grade lithium battery cell

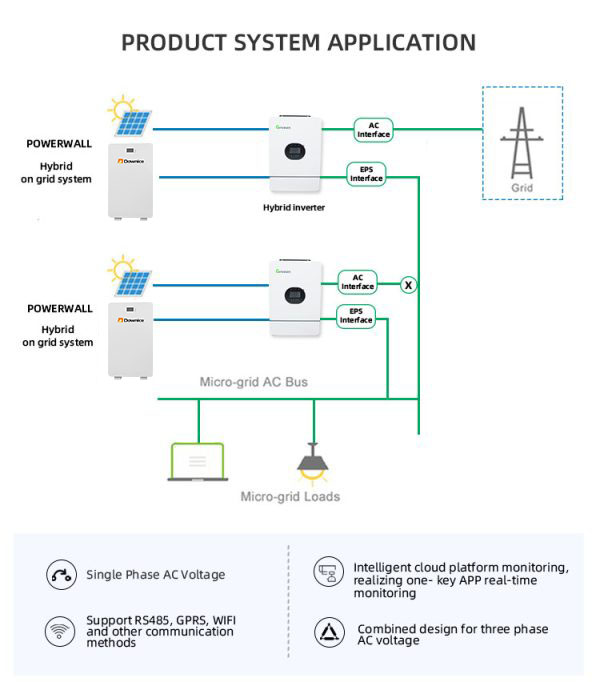

  • Widely Application: Off-Grid / Hybrid Solar Storage System; Industry Project etc.
  • BMS with RS485/CAN:100% Protection, available for most inverters
  • Long Service Lifespan: Up to 6000 cycles @ 0.5C；80%DOD

The Dawnice DW-48V 100Ah, a Lithium Iron Phosphate Battery, provides cutting-edge technology that is both the safest and most durable lithium chemistry. With the ability to reach over 5000 cycles, the DW-48V 100Ah can be recharged numerous times while delivering a 100% depth of discharge. This battery is ideal for various applications such as solar, Telecom, Wind, Marine RV and deep cycle applications. Furthermore, it can handle more than 200 amps of continuous charge or discharge and up to 2000 amps for starting / peak energy.

Battery Pack Powerwall

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
5-15KWH Low Voltage Powerwall Energy Storage System
Model Capacity DW- PW5ESS-LV DW- PW10ESS-LV DW- PW15ESS-LV
Battery type LifePo4 LifePo4 LifePo4
Capacity Energy 5.12kWh 10.24kWh 15.36kWh
Model 100Ah 100Ah 100Ah
Model 16S1P 16S2P 16S3P
Suggested SOC 10-100%
Nominal Voltage 51.2V
Operation Voltage 44.8V – 57.6V
Maximum Charging/ Discharging Current 50A/50A
BMS Robust Multi point monitoring BMS pre installed
Scalable (Parallel function) Yes, maximum 16 packs
Life Cycling (0.5C&25℃) 6000 cycles @ 0.5C；80%DOD
Warranty 10 years
Operation Temperature Chrage : 0 – 45℃, Dischrage : -20 – 45℃
Storage Temperature -20 – 45℃
Net Weight 44kG 75kG 110
Dimensions (H x W x D) 450x515x165 mm 740x640x165 mm 865x640x165 mm
Certifications MSDS, UN38.3, CE, IEC62619 (Cell), UL(Cell)
IP Grade IP54
Communication RS232, RS485, CAN (Compitable with most brand inverters in market)
