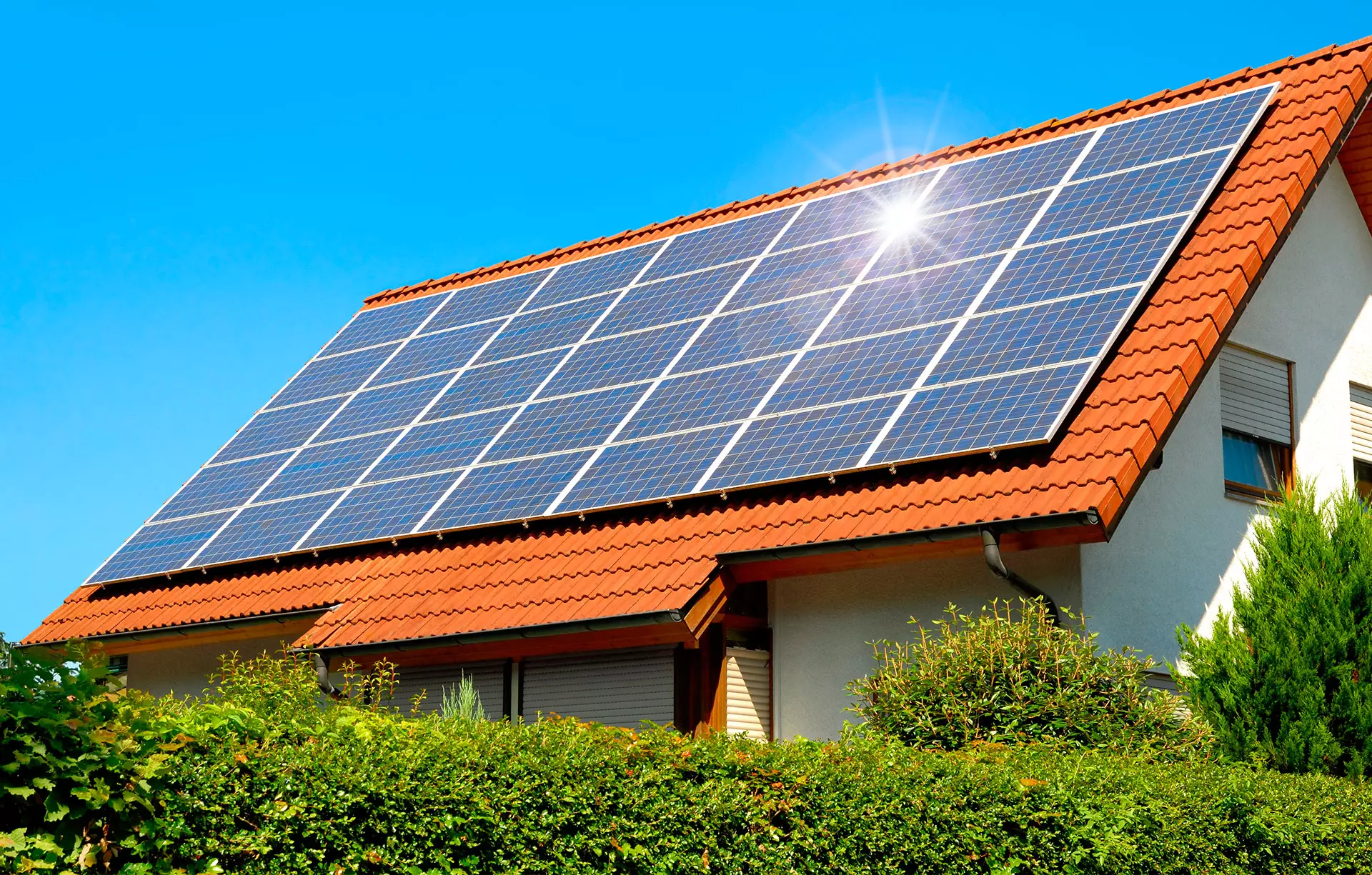

10KW Single Phase On Grid Solar Energy System
10KW Single Phase On Grid Solar Energy System
Dawnice 10KW Single Phase On Grid Solar Energy System 10000w
- Product name: Dawnice hybrid solar system
- Model Number: DW01HV-10KWKW LP1
- Application: Home
- Inverter Type: On Grid inverter with MPPT controller
- Controller Type: MPPT
- Mounting Type: Ground Mounting/Roof Mounting
- PV Power (KW): 10
- Output Frequency: 50HZ/60HZ
- Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
- Type: On Grid solar system
- Solar Solution:Customized
Solar Inverter
2 MPP trackers, Max. efficiency up to 97.7%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Low start-up voltage of 80V
All Black Solar Panel
1. 500W All Black Mono Facial
2. Half Cell
3. SIZE:2094 X 1134 X 35MM(25 Year Warranty)
4. (MOQ:1 Pallet 31pcs/Pallet)
PV system installation tools
- 1. Disassemble Tool
- 2. MC3 MC4 Crimper
- 3. Wire Cable Cutter & Stripper
- 4. MC4 Connector Assembly
MC4 Connector:
- 1. Rated Current: 30A
- 2. Rated Voltage: 1500VDC
PV Cable:
- 1. AC Cable
- 2. DC Switches
- 3. AC Breaker
- 4. AC/DC Combine Box
- 5. PV Cable 4MM2 6MM2
Mounting Structure
- 1. Ground Solar Mounting System
- 2. Residential Roof(Pitched Roof)
- 3. Car Parking Solar Mounting System
- 4. Vertical Wall Solar Mounting System
- 5. Commercial Roof(Flat Roof&Workshop Roof)
- 6. All Aluminum Structure Solar Mounting System
How to install
1. Install the brackets
2. Install the PV components
3. PV Junction Box
4. Inverter and Battery
Dawnice advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Dawnice do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
| Dawnice 10KW On Grid Solar Energy System | |||||
| Parameters | Model | DW01LV-5KW-10 LP1-EU/US | DW01LV-8KW-20 LP1-EU/US | DW01LV-12KW-30 LP1-EU/US | |
| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.68 | 11.68 | 11.68 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||
| Quantity | Pcs | 10 | 16 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
|
Model
|
SUN-7K-G | SUN-7.5K-G | SUN-8K-G | SUN-9K-G | SUN-10K-G | SUN-10.5K-G |
|
Input Side
|
||||||
|
Max. DC Input Power(kW)
|
9.1 | 9.8 | 10.4 | 11.7 | 13 | 13.7 |
|
Max. DC Input Voltage (V)
|
550 | |||||
|
Start-up DC Input Voltage(V)
|
80 | |||||
|
MPPT Operating Range(V)
|
70-500 | |||||
|
Max. DC Input Current(A)
|
13+26 | 26+26 | ||||
|
Max. Short Circuit Current (A)
|
19.5+39 | 39+39 | ||||
|
No.of MPP Trackers
|
2 | |||||
|
No.of Strings per MPP Tracker
|
1+2 | 2+2 | ||||
|
Output Side
|
||||||
|
Rated Output Power(kW)
|
7 | 7.5 | 8 | 9 | 10 | 10.5 |
|
Max. Active Power(kW)
|
7.7 | 8.25 | 8.8 | 9.9 | 11 | 11.55 |
|
Nominal Output Voltage / Range (V)
|
L/N/PE 220/230V (Optional) | |||||
|
Rated Grid Frequency(Hz)
|
50 / 60 (Optional) | |||||
|
Operating Phase
|
Single phase | |||||
|
Rated AC Grid Output Current(A)
|
31.8/30.4 | 34.1/32.6 | 36.4/34.8 | 40.9/39.1 | 45.5/43.5 | 47.7/45.7 |
|
Max. AC Output Current(A)
|
35/33.5 | 37.5/35.9 | 40/38.3 | 45/43 | 50/47.8 | 52.5/50.2 |
|
Output Power Factor
|
0.8 leading to 0.8 lagging | |||||
|
Grid Current THD
|
<3% | |||||
|
DC Injection Current(mA)
|
<0.5% | |||||
|
Grid Frequency Range
|
47-52 or 57-62 (Optional) | |||||
