Inverter Battery Connection Guide
Published by Dawnice, March 11, 2025
Introduction
Inverter systems have become indispensable in modern households and businesses, providing a reliable power backup solution during outages. At the core of these systems lies the inverter-battery connection, which ensures the seamless conversion of stored DC power into usable AC power. Whether you’re a DIY enthusiast or a professional installer, understanding how to properly connect an inverter to a battery is crucial for safety, efficiency, and the longevity of your power system.
1. Basics of Inverter and Battery Systems
An inverter is a device that converts direct current (DC) from a battery into alternating current (AC) for powering household appliances. Batteries, on the other hand, store the DC power generated by solar panels or the grid. Together, they form a robust power backup system that keeps your lights on and devices running during outages.
2. Types of Batteries Used in Inverter Systems
The most common types of batteries used in inverter systems are lead-acid and lithium-ion batteries. Lead-acid batteries are cost-effective and reliable, while lithium-ion batteries offer a longer lifespan and higher efficiency. Choosing the right battery type depends on your power needs and budget.
3. Preparing for the Connection
Before connecting your inverter to the battery, gather the necessary tools, such as insulated cables, connectors, and a multimeter. Ensure the system is powered off and take safety precautions, such as wearing gloves and safety glasses. Check the compatibility of your inverter and battery to avoid any issues during the connection process.

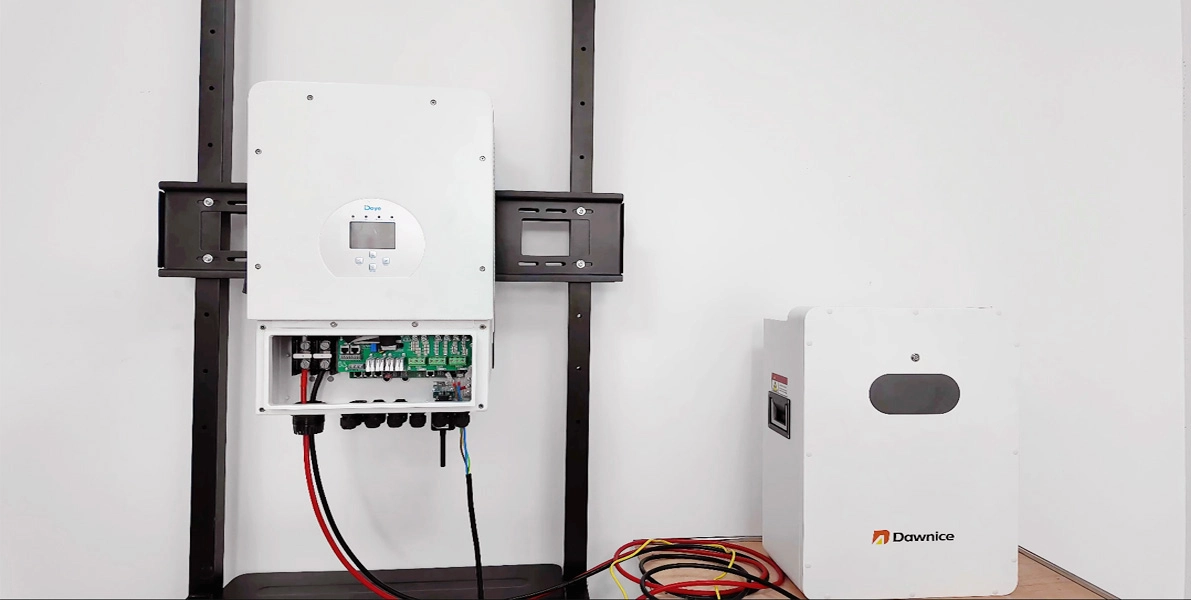

4. Step-by-Step Guide to Connecting Inverter to Battery
- Identify the Battery Terminals: Locate the positive (+) and negative (-) terminals on the battery.
- Connect the Cables: Attach the positive cable to the positive terminal of both the battery and the inverter. Repeat the process for the negative cable.
- Double-Check the Connection: Ensure all connections are secure and the polarity is correct.
- Power On the System: Turn on the inverter and test the connection to ensure it’s working properly.
5. Connecting Multiple Batteries to an Inverter
For increased power capacity, you can connect multiple batteries to your inverter. In a parallel connection, connect all positive terminals together and all negative terminals together. This setup increases capacity without changing the voltage. In a series connection, connect the positive terminal of one battery to the negative terminal of another, increasing the voltage while maintaining capacity.
6. Inverter-Battery Communication: Brand-Specific Guides
1.Solis Parallel Connection: Solis inverters are known for their efficiency and ease of use. Follow the manufacturer’s guidelines for parallel connections to ensure optimal performance.
2.Megarevo Parallel Connection: Megarevo inverters offer advanced features for hybrid systems. Learn how to set up a parallel connection with step-by-step instructions.
3.Deye Connection: Deye inverters are compatible with a wide range of batteries. Follow our detailed guide for a seamless connection.
4.SRNE Connection: SRNE inverters are reliable and cost-effective. Discover how to connect them to your battery system.
7. Testing and Maintenance
After connecting your inverter to the battery, test the system using a multimeter to ensure proper voltage and current flow. Regularly inspect the terminals for corrosion and tighten any loose connections. Address any issues promptly to maintain the system’s efficiency and longevity.
8. Conclusion
Properly connecting your inverter to a battery is essential for a reliable and efficient power backup system. By following the steps outlined in this guide, you can ensure a safe and seamless setup. Regular maintenance and monitoring will further enhance the performance and lifespan of your system. For more detailed tutorials, check out the linked videos and resources.
Please feel free to contact us for any procurement of energy storage batteries and inverters.
