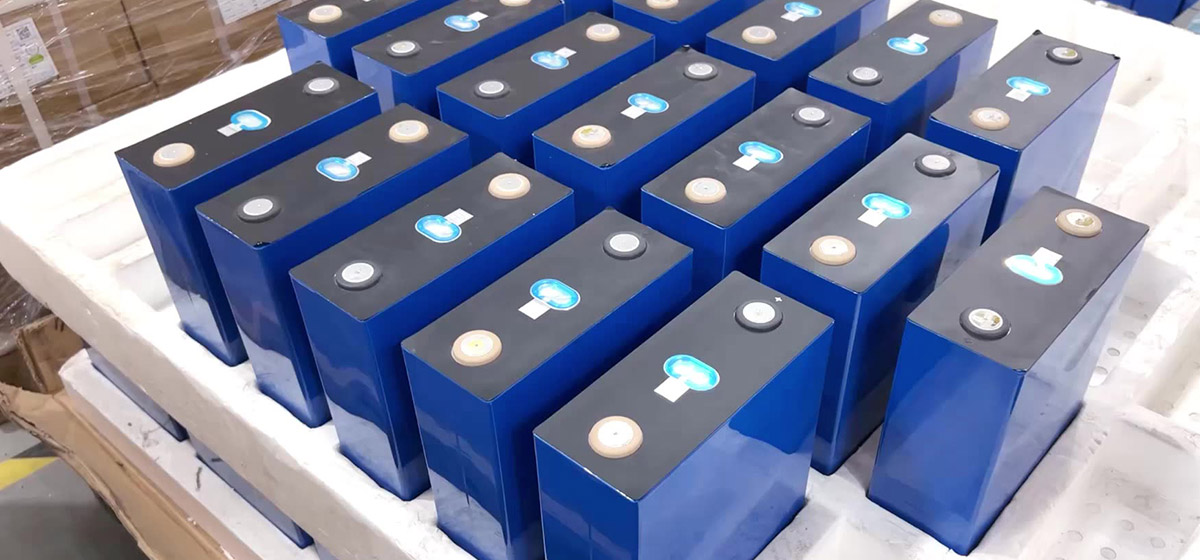

Energy Storage Battery Manufacturing Key Processes – Cell Sorting

What is Lithium Cell Sorting?

Lithium cell sorting is a crucial manufacturing process that categorizes battery cells to ensure maximum consistency in performance across a battery pack. This enhances overall efficiency, safety, and lifespan.

Key Parameters for Sorting

• Voltage: Cells with similar voltage levels are grouped to prevent uneven charging/discharging.
• Capacity: Ensures balanced energy storage to avoid overcharging or over-discharging of weaker cells.
• Internal Resistance: Matches cells with comparable resistance to minimize heat variations.
• Self-Discharge Rate: Groups cells with similar idle power loss rates.

Core Cell Sorting Process

1. Cell Production Timing

• Cells from the same production batch (ideally ≤3 months apart) are prioritized for integration.
• Aging differences in cells from varied production dates may degrade system performance.

2. Cell Appearance Inspection

• Checkpoints: Scratches, dents, deformation, swelling, or leakage on cell surfaces.
• Methods: Visual inspection or machine vision systems to reject defective cells.

3. Cell Voltage Sorting

• Open-circuit voltage (pre-formation) is measured to group cells with minimal voltage deviation.
• System integrators often conduct secondary voltage sorting for stricter consistency.

4. Internal Resistance Matching

• Types:
  • DC internal resistance (DCR)
  • AC internal resistance (ACR) – typically used for pre-formation sorting
• Critical for evaluating cell performance throughout its lifecycle.

5. Capacity Grouping

• Primary sorting criterion to ensure cells in the same system have capacity variations within tight thresholds.

6. Physical Dimensions

• Cells must comply with standardized height/width specifications to fit module assemblies.

7. Weight Tolerance

• Cell mass is monitored to maintain system energy density while preventing abnormally light or heavy cells.

8. Grading & Packaging

• Cells are classified into performance tiers based on test results.
• Identical-grade cells are assembled into standardized battery packs.

Why Consistency Matters

Mismatched cells accelerate capacity fade, reduce safety margins, and shorten pack lifespan. Advanced sorting ensures:

✅ Balanced current distribution
✅ Optimized charge/discharge cycles
✅ Minimized localized heating
✅ Extended operational lifetime
