Industrial 85-200 kWh C&I Energy Storage Solutions | Scalable 85 /120 /172 / 200 kWh Battery Systems
- ProductModels: HZEB-HCT-86/100/172/200
- Nominal Voltage: 307V~716V (corresponding to models)
- Rated Energy Capacity: 85kWh~200kWh
- Voltage Operating Range: 268V~806.4V
- Max Charge/Discharge Current: 140A (consistent across all models)
- Communication Protocol: Modbus RTU (standard for all variants)
- Lifespan: ≥6,000 cycles @ 25°C (80% DOD), ≥15-year design life
- IP Rating: IP20 enclosure protection
- Certifications: UN38.3, IEC62619, UL1973, UL2054, CE
- Protections: Short-circuit/overcurrent/over-temperature safeguards
- ProductModels: HZEB-HCT-86/100/172/200
- Nominal Voltage: 307V~716V (corresponding to models)
- Rated Energy Capacity: 85kWh~200kWh
- Voltage Operating Range: 268V~806.4V
- Max Charge/Discharge Current: 140A (consistent across all models)
- Communication Protocol: Modbus RTU (standard for all variants)
- Lifespan: ≥6,000 cycles @ 25°C (80% DOD), ≥15-year design life
- IP Rating: IP20 enclosure protection
- Certifications: UN38.3, IEC62619, UL1973, UL2054, CE
- Protections: Short-circuit/overcurrent/over-temperature safeguards
Product Introduction

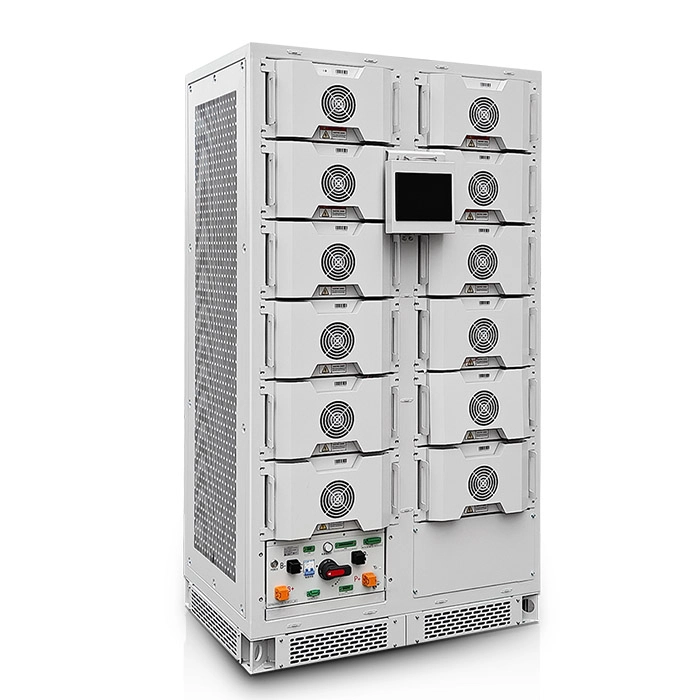

Dawnice’s next-gen rack-mounted C&I battery delivers industrial reliability with user-centric innovation. Its expanded cooling surface and high-efficiency thermal transfer enable stable 140A output, even at 55°C. Modular design features quick-connect fittings and self-adaptive BMS for flexible 85-200kWh configurations. Upgraded IP54-rated dust filters and sleek panels merge durability with aesthetics, reducing maintenance by 40%. Customizable for solar, peak shaving, or backup power.

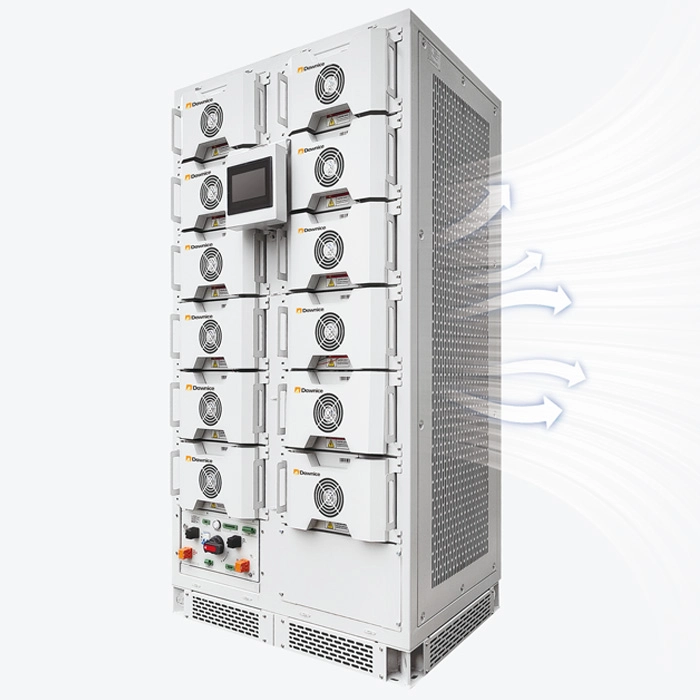

High-Efficiency Business Energy Storage
Larger heat dissipation area, high-efficiency thermal transfer, quick-connect fittings, self-adaptive BMS, dust-proof design, and sleek panels for enhanced durability and convenience.
Product Features
Smart Safety
Cloud Management
Green Power
Premium Cells
High Cycle Life
High Efficiency
Modular Design
Auto Protection
Live Monitoring
Sleek Design
APPLICATION
Dawnice C&I Energy Storage supports various applications:
- Emergency Power: Ensures continuous operations by providing backup electricity during power disruptions.
- Cost Optimization: Lowers energy expenses by reducing grid reliance during peak usage times.
- Off-Grid Solutions: Facilitates autonomous, sustainable energy systems for remote areas or green initiatives.
|
SPECIFICATIONS
|
||||
|---|---|---|---|---|
|
Model(High voltage)
|
HZEB-HCT-86/6S
|
HZEB-HCT-100/7S
|
HZEB-HCT-172/12S
|
HZEB-HCT-200/14S
|
|
Nominal Voltage (V)
|
307.2V
|
358.4V
|
512.0V
|
716.8V
|
|
Cell mode/Configuration
|
3.2V280Ah/1651P
|
|||
|
Capacity(Ah) Cell
|
280Ah
|
|||
|
Rated Energy(kWh)
|
86.02kWh
|
100.35kWh
|
172.03kWh
|
200.70kWh
|
|
Max. Charge/Discharge Current (A)
|
140A
|
|||
|
Voltage Range (Vdc)
|
268.8-345.6V
|
313.6-403.2V
|
573.6-619.2V
|
627.2-806.4V
|
|
Communication
|
Modbus RTU
|
|||
|
Cycle Life
|
≥6000 Cycles @ 25°C, 80% DOD
|
|||
|
Design Life
|
≥15 Years (Cycle Life ≥15 Years @ 25°C)
|
|||
|
MECHANICAL SPECIFICATIONS
|
||||
|
Weight (kg)
|
850kg
|
960kg
|
1650kg
|
1920kg
|
|
Dimension (L/W/H) (mm)
|
1100×792×1218mm
|
1100×792×1218mm
|
1100×792×1218mm
|
1100×792×2226mm
|
|
IP Grade
|
IP20
|
|||
|
SECURITY AND CERTIFICATIONS
|
||||
|
Safety (Pack)
|
UN38.3, MSDS, IEC62619(CB), CE-EMC
|
|||
|
Safety (Cell)
|
UN38.3, MSDS, IEC62619, CE, UL1973, UL2054
|
|||
|
Protection
|
Short-circuit protection/overcurrent protection/over-temperature protection
|
|||
|
ENVIRONMENTAL SPECIFICATIONS
|
||||
|
Operating Temperature (°C)
|
Charge 0°C-50°C; Discharge -10°C-50°C
|
|||
|
Working Altitude (m)
|
≤2000m
|
|||
|
Humidity
|
≤95% (Non-condensing)
|
|||
|
Warranty
|
10 years
|
|||
Tailored Production, Fast Delivery & Expert Installation Support
- Manufacturing: Tailored production to meet specific customer requirements.
- Shipping: Reliable packaging and prompt global delivery.
- Setup: Professional installation and on-site assistance by certified experts.
- Training: Detailed operational and maintenance training to ensure optimal use.
