48V 100Ah 5KW Stackable Lifepo4 Lithium Batteries

48V 100Ah 5KW Stackable Lifepo4 Lithium Batteries

On sale
0
0
0
0
Days
0
0
Hrs
0
0
Min
0
0
Sec

$1,379.00  $999.00

Be Our Distributors enjoy extra discount

Dawnice 48V 100Ah Stackable Lithium Ion Batteries 5KW Ground Eco 5KWH Stacked Lifepo4 akku ESS Energy Storage Battery System

  • Product Name: Stackable LiFePo4 Lithium Batteries; Lithium Battery Pack; LiFePo4 Battery Pack;
  • Model Number: DW-ST30-LV

  • Warranty: 5 years
  • Anode Material: LFP
  • Rechargeable: Yes
  • Application: Solar System ,Power Back Up ,UPS system
  • Place of Origin: China
  • ODM & OEM: Supported
  • Certification: MSDS, UN38.3, CE, IEC62619 (Cell)
  • Life Cycling(0.5C&25℃): 6000 cycles @ 0.5C;80%DOD
Inquire

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

WhatsApp
Email
Contact Us

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

WhatsApp
Email
Contact Us

Key product features and benefits

  • Modular Design: Light weight, small size
  • Larger Capacity & Higher Supporting Power: 25KWh to 100KWh
  • High Quality: A Grade lithium battery cell

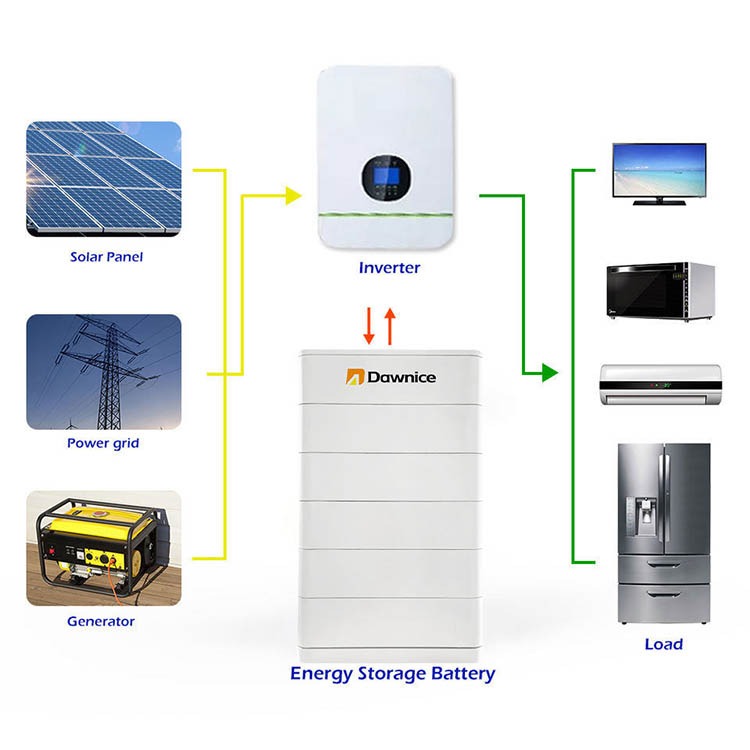

  • Widely Application: Off-Grid / Hybrid Solar Storage System; Industry Project etc.
  • BMS with RS485/CAN:100% Protection, high compatibility, available for most inverters
  • Long Service Lifespan: Up to 6000 cycles @ 0.5C;80%DOD

The Dawnice DW-48V 100Ah 5kw, a Lithium Iron Phosphate Battery, provides cutting-edge technology that is both the safest and most durable lithium chemistry. With the ability to reach over 5000 cycles, the DW-48V 100Ah 5kw can be recharged numerous times while delivering a 100% depth of discharge. This battery is ideal for various applications such as solar, Telecom, Wind, Marine RV and deep cycle applications. Furthermore, it can handle more than 200 amps of continuous charge or discharge and up to 2000 amps for starting / peak energy.

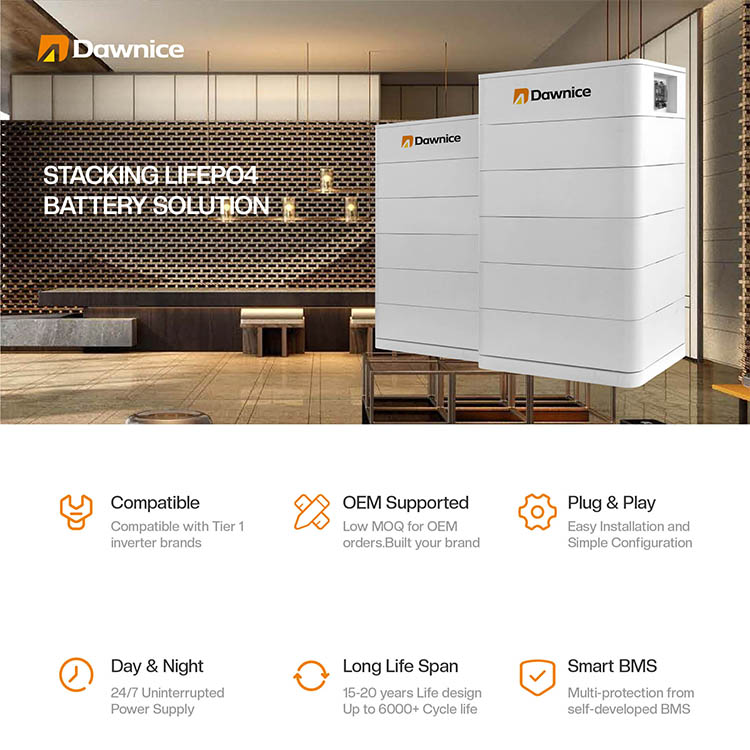

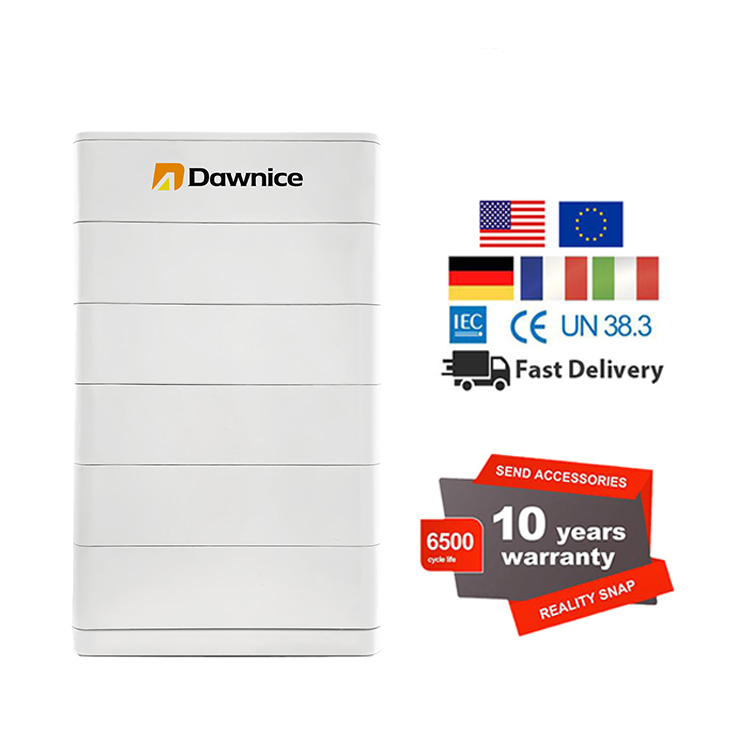

Stacked Batteries
Stacked Batteries
5kwh 10kwh 15kwh (11)

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
5-25KWH Ground Eco HV Battery Energy Storage System
Model Capacity DW-Elebox5 -HV DW-Elebox7 -HV DW-Elebox10 -HV DW-Elebox12 -HV DW-Elebox15 -HV DW-Elebox17 -HV DW-Elebox20 -HV DW-Elebox23 -HV DW-Elebox25 -HV
System Demo 30-100KWH
Battery Module ELEBOX-HV—2.56 (2.56kWh, 51.2V, 36.3kg,593/355/146.5)
Number Of Modules 2 3 4 5 6 7 8 9 10
Energy Capability 5.12kWh 7.68kWh 10.24kWh 12.8kWh 15.36kWh 17.92kWh 20.48kWh 23.04kWh 25.6kWh
Nominal Voltage 102.4V 153.6V 204.8V 256V 307.2V 358.4V 409.6V 460.8V 512V
Operation Voltage Range 94.4-113.6V 141.6-170.4V 188.8-227.2V 236-284V 283.2-340.8V 330.4-397.6V 377.6-454.4V 424.8-511.2V 472-568V
Dimension mm (H/W/D) 424/593/355 570.5/593/355 717/593/355 863.5/593/355 1010/593/3551 1157/593/355 1303/593/355 1450/593/355 1596/593/355
Weight 105.5kgs 141.5kgs 177.5kgs 213.5kgs 249.5kgs 285.5kgs 321.5kgs 357.5kgs 393.5kgs
Battery Type Cobalt free Lithium Iron Phosphate (LFP)
Standard Charge/ Discharge Current 25A@0.5C
IP Protection IP 65
Installation Wall-mounted or Floor Installation
Operation Temperature Feature 0 ℃to 45℃
DOD 80%
Cycle Life 6000 cycles @ 0.5C;80%DOD
Warranty (0.5C&25℃) 5/10 Years
Communication Port CAN/RS485
Certification CE, IEC62619(Cell&Pack),MSDS,ROHS,UN38.3
30-100KWH Ground Eco LV Battery Energy Storage System
Model Capacity DW-Elebox30 -LV DW-Elebox40 -LV DW-Elebox50 -LV DW-Elebox60 -LV DW-Elebox70 -LV DW-Elebox80 -LV DW-Elebox90 -LV DW-Elebox100 -LV
System Demo 30-100KWH
Battery Module ELEBOX-LV—10 (10.24kWh, 200AH,51.2V,96kg,736*455*258)
Battery Type LiFePo4
Number Of Modules 3 4 5 6 7 8 9 10
Energy Capacity (kW·h) 30.72 40.96 51.2 61.44 71.68 81.92 92.16 102.4
Useable Capacity(kW·h) 27.6 36.9 46.1 55.3 64.5 73.7 82.9 92.2
Normal Voltage(V) 51.2
Operating Voltage Range(V) 44.8~56
Standard Charge/ Discharge Current 300A@0.5C 400A@0.5C 500A@0.5C 600A@0.5C 700A@0.5C 800A@0.5C 900A@0.5C 1000A@0.5C
Dimension mm (W/D/H) 736*455*880 736*455*1140 736*455*1395 736*455*1653 736*455*1911 736*455*2170 736*455*2430 736*455*2685
Weight(KG) 96*3 96*4 96*5 96*6 96*7 96*8 96*9 96*10
General
Operation Temperature
0 ℃to 45℃
IP Protection
IP 60
Installation
Floor installation
Warranty
5 years
BMS Monitoring Parameters
SOC,System voltage,current ,cell voltage
Communication Port
CAN
Application
Application scenarios
Solar System ,Power Back Up ,UPS system
Life Cycling (0.5C &25℃)
6000 cycles @ 0.5C;80%DOD
Communication Port
CAN/RS485
