Dawnice 15kwh Home Energy Storage Battery
- Battery Type:Lithium ion battery
- Cycle Life:More than 6000 times
- Warranty:10 years
- Certificate: UL/CE/UN38.3/MSDS/CB/KC
![dawnice 15kw off grid solar inverter dawnice 15kw off grid solar inverter](https://www.energydawnice.com/wp-content/uploads/2024/01/dawnice-15kw-off-grid-solar-inverter.png)

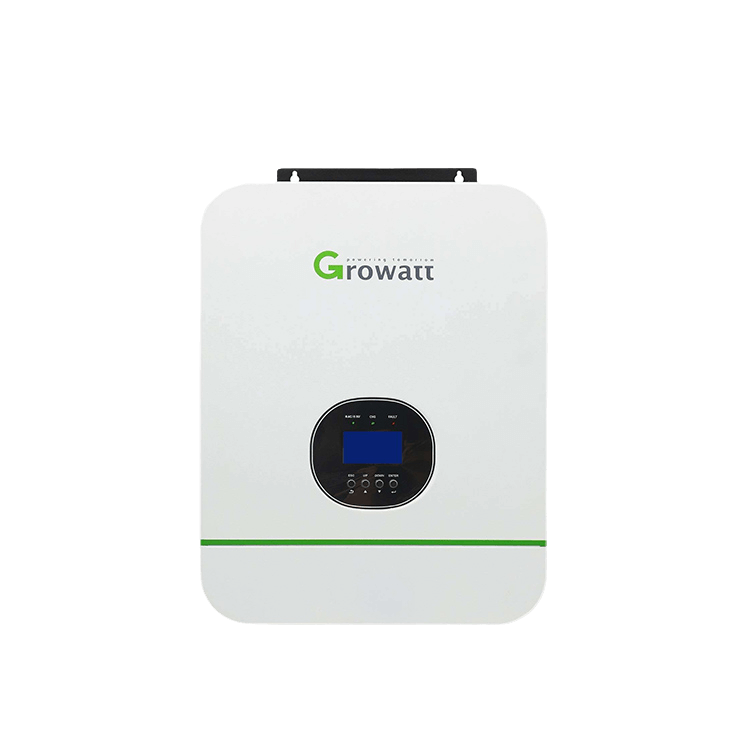

Solar Inverter
- Model Number: 5kw off grid solar inverter*3
- Max. Efficienct: 98%
- Input Voltage: 60-145VDC
- Communication: RS485/CAN
- Operating Temperature Range (℃): -45~60℃, >45℃
- Cooling: Smart cooling
- Output Voltage: 230VAC ± 5%
![panel panel](https://www.energydawnice.com/wp-content/uploads/2023/03/panel.png)
All Black Solar Panel
- 1. 500W Mono Solar Panel*60
- 2. Half Cell
- 3. Warranty: 10 Years
- 4. Brand:,JA, Longi, Jinko, Trina As Required
- 5. All Black Solar Panel Can be Supplied
![PV system installation tools PV system installation tools](https://www.energydawnice.com/wp-content/uploads/2023/03/PV-system-installation-tools.png)
PV system installation tools
- 1. Disassemble Tool
- 2. MC3 MC4 Crimper
- 3. Wire Cable Cutter & Stripper
- 4. MC4 Connector Assembly
![MC4 Connector MC4 Connector](https://www.energydawnice.com/wp-content/uploads/2023/03/MC4-Connector.png)
MC4 Connector:
- 1. Rated Current: 30A
- 2. Rated Voltage: 1500VDC
PV Cable:
- 1. AC Cable
- 2. DC Switches
- 3. AC Breaker
- 4. AC/DC Combine Box
- 5. PV Cable 4MM2 6MM2
![Mounting Structure Mounting Structure](https://www.energydawnice.com/wp-content/uploads/2023/03/Mounting-Structure.png)
Mounting Structure
- 1. Ground Solar Mounting System
- 2. Residential Roof(Pitched Roof)
- 3. Car Parking Solar Mounting System
- 4. Vertical Wall Solar Mounting System
- 5. Commercial Roof(Flat Roof&Workshop Roof)
- 6. All Aluminum Structure Solar Mounting System
How to install
1. Install the brackets
![install1 install1](https://www.energydawnice.com/wp-content/uploads/2023/03/install1.jpg)
2. Install the PV components
![install2 install2](https://www.energydawnice.com/wp-content/uploads/2023/03/install2.jpg)
3. PV Junction Box
![install3 install3](https://www.energydawnice.com/wp-content/uploads/2023/03/install3.jpg)
4. Inverter and Battery
![install4 install4](https://www.energydawnice.com/wp-content/uploads/2023/03/install4.jpg)
Dawnice advantage:
1.Intelligent and efficient:
2.Flexible operation:
3. Stable and reliable.
![Main003 Main003](https://www.energydawnice.com/wp-content/uploads/2022/11/Main003.jpg)
What can Dawnice do?
15Kw Off Grid Solar Power System Components | |||
Item | Name | Description | Quantity |
1 | Solar Panel | 500w Solar Panel | 60pcs |
2 | Inverter | 15kw Off Grid Solar Inverter | 1 set |
3 | PV Combiner Box | 6 Inputs 2 output | 1 pc |
4 | Charger Controller | 192V 100A (MPPT /PWM) | 1 pc |
5 | Battery | 48V 300AH (Lithium Battery) | 16unit |
6 | Solar Mounting Structure | Roof/Ground Install (Customized) | 1 set |
7 | PV Cable | 4 mm2 DC PV Cable | 800m |
8 | MC4 | MC4 Connector | 20prs |
9 | Standard Wooded Package + System Connecting Drawings (Easy Installing) | ||
10 | System Capacity could be adjustable according customer’s situation |
