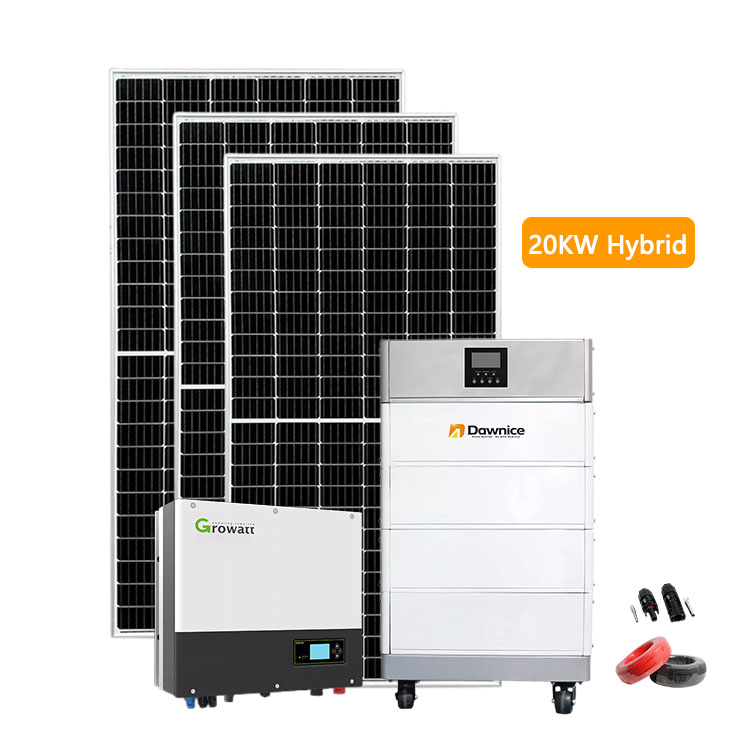

20KW hybrid solar energy system

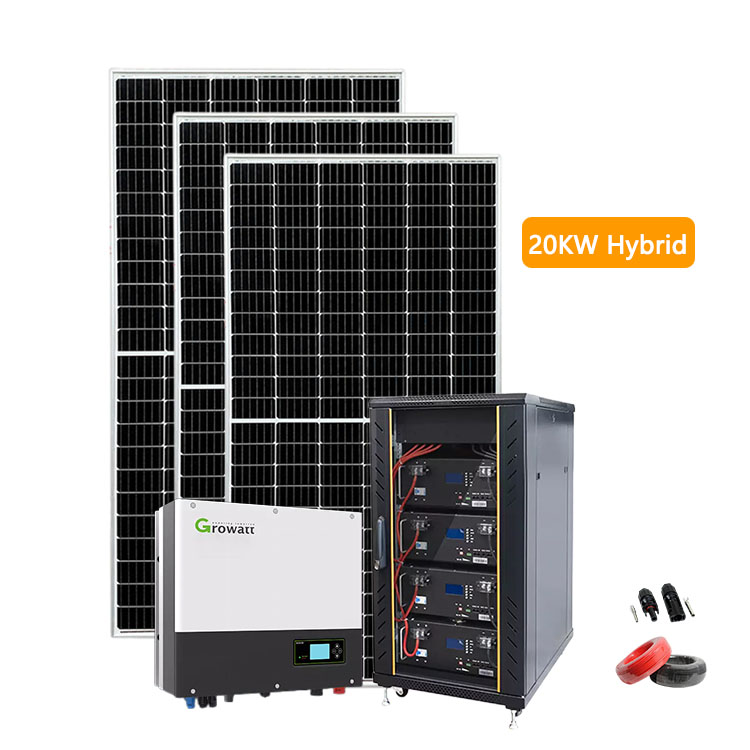

24kw hybrid solar energy system

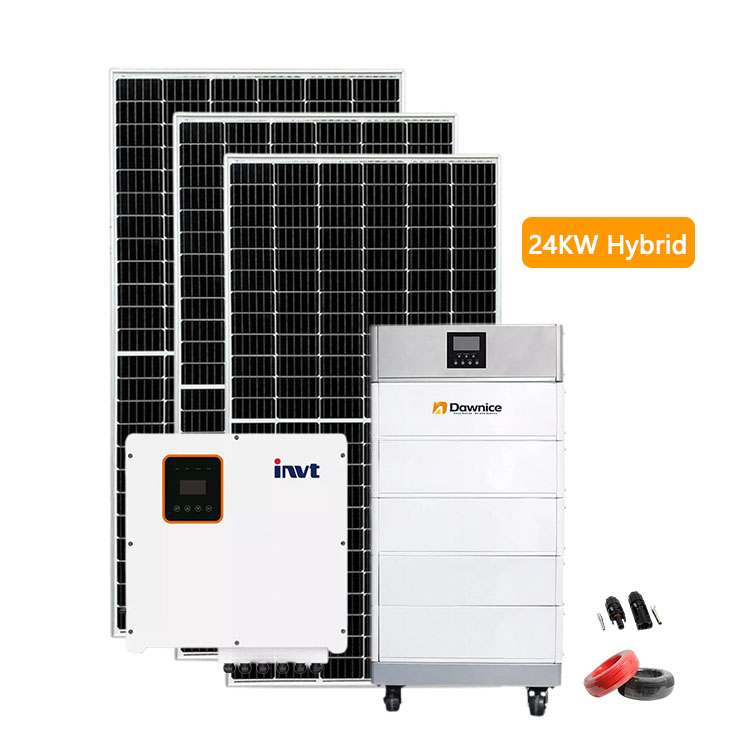

30kw hybrid solar energy

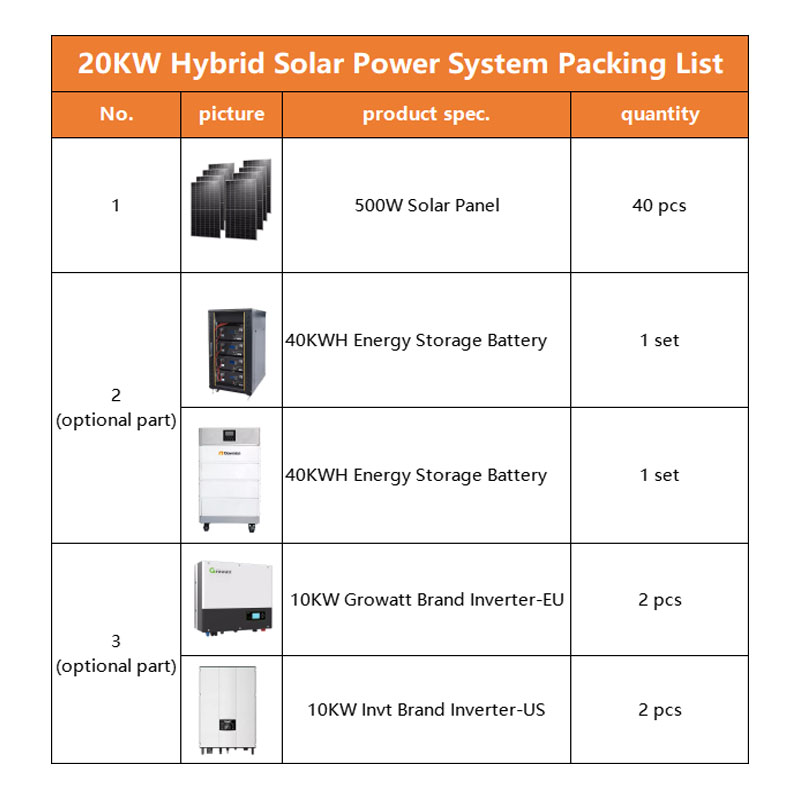

high voltage 20kw solar energy system

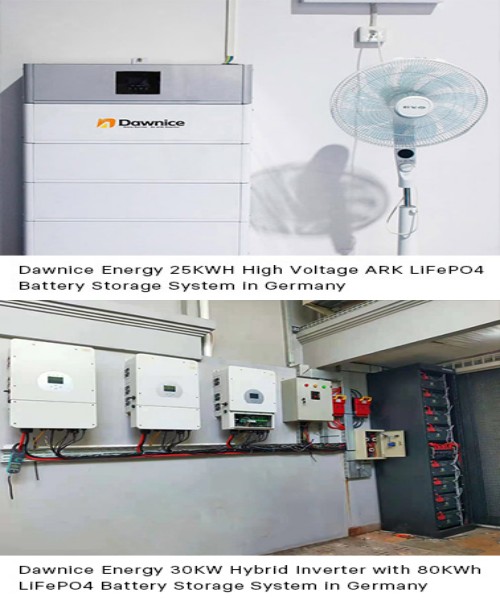

20-30KW LV lithium battery

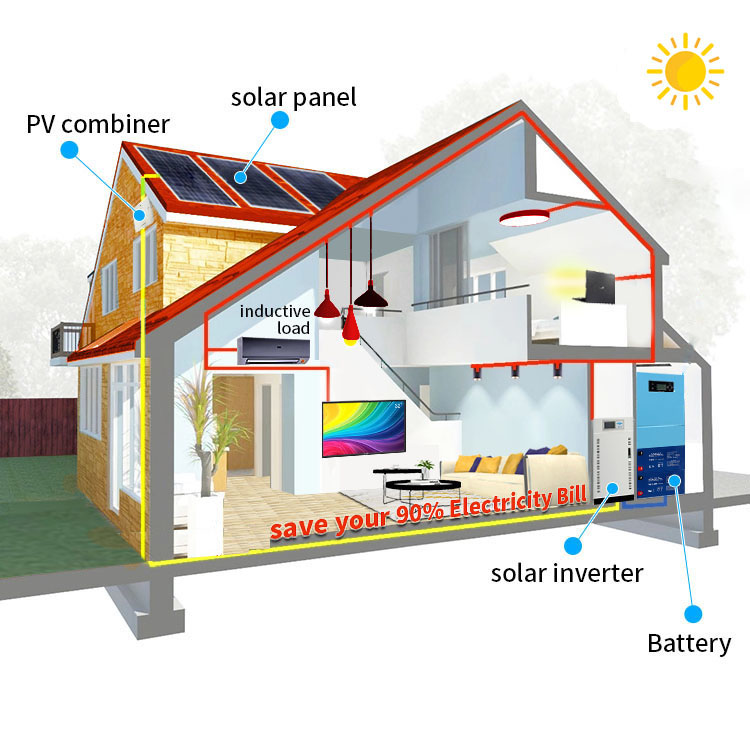

dawnice connection diagram

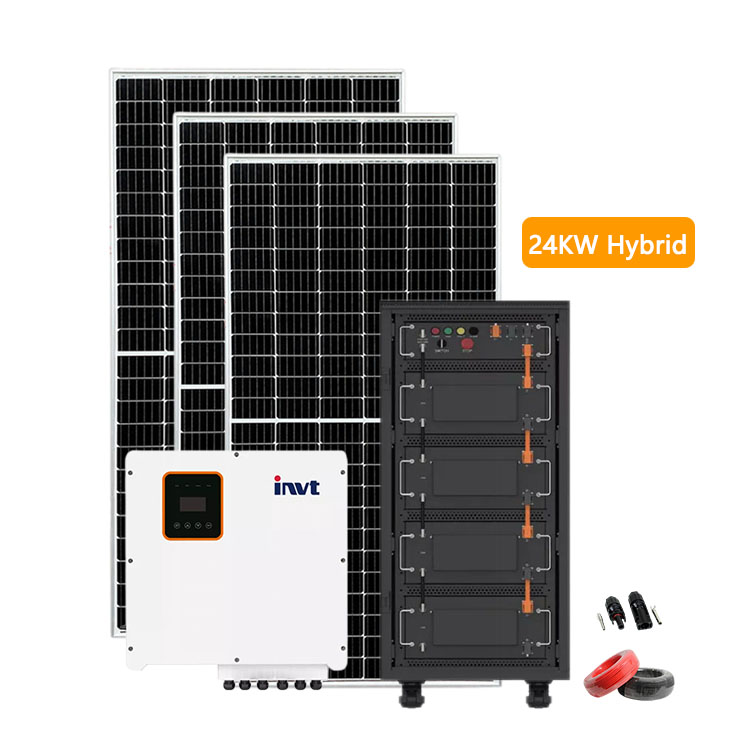

eu 20kw solar energy system

Dawnice 20KW 24KW 30KW Hybrid Solar System for EU/US with High Voltage Battery Storage System

  • Product name: Dawnice hybrid solar system
  • Model Number: DW20-40KWH-HV
  • Application: Home,Commercial,Industrial,Other
  • Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
  • Inverter Type: Hybrid inverter with MPPT controller
  • Controller Type: MPPT
  • Mounting Type: Ground Mounting/Roof Mounting
  • PV Power (KW): 20/ 24/ 30
  • Output Frequency: 50HZ/60HZ
  • Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
  • Type: Hybrid solar system
  • Solar Solution:Customized
  • Battery Input Voltage(V): 85-400(US);100-550(EU)

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Dawnice advantage:

1.Intelligent and efficient：

  • Storage of surplus electricity, improve the use rate of PV power .
  • PV and mains can charge the battery
  • Flexible configuration of lead-acid and lithium-ion batteries
  • All in one design: charging, control , inverter
  • Compatible with off-grid and on-grid modes

2.Flexible operation：

  • Various communication ：Wi-Fi/Ethernet/GPRS/RS485
  • Peak and valley time can be set, automatic peak cutting and valley filling.
  • Remote control by computer or phone
  • LCD display,easy operation

3. Stable and reliable.

  • High protectionand A grade battery cell
  • Smart BMS to ensure battery life
  • Heat dissipation, reduce failure rate
Main003
part1

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Dawnice 20-30KW HybridSolar Energy System-HV
Parameters Model DW20-40KWH-HV DW24-50KWH-HV DW30-60KWH-HV
Solar Panel Specific Model DW-SP-500 DW-SP-500 DW-SP-500
Maximum Power（Wp） 500 500 500
Open-Circuit Voltage(Voc)(V) 51.01 51.01 51.01
Operating Current (Imp)（A） 11.62 11.62 11.62
Short-Circuit Current (Isc)（A） 12.46 12.46 12.46
Quantity Pcs 40 48 60
Size(mm) 2220*1102*35
Weight(KG) 27
Warranty time 25 years
Certificate IEC61215:2016;IEC61730-1/-2:2016;
Storage Battery Model DW-40KWESS-HV DW-50KWESS-HV DW-30KWESS-HV
Cell Type Li-ion(LFP) Li-ion(LFP) Li-ion(LFP)
Nominal Voltage（V） 204.8 V(64series) 256V(80series) 307.2V(96series)
Normal Capacity 200AH 200AH 200AH
Total Energy(KWH) 40.96 51.2 61.44
Cycle times 6000 6000 6000
Communication CAN /RS485 CAN /RS485 CAN /RS485
Standard Charging / Discharging Current 50A/50A 50A/50A 50A/50A
Size(mm) 360*190 x700 /SET
Weight(KG) 460 560 660
Water proof IP21
Warranty time 10 years
Certificate UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
Hybrid Inverter Model DW－10KW-GW- EU*2 DW－10KW-INV- NA*2 DW－10KW-GW- EU*2 DW－12KW-INV– NA*2 DW－10KW-GW- EU*3 DW－12KW-INV– NA*3
Battery Input Data Battery Voltage Range (V) 100-550 85-400 100-550 85-400 100-550 85-400
Max. Charging Current (A) 25*2 80*2 25*2 80*2 25*3 80*3
Max. Charging Current (A) 25*2 880*20 25*2 80*2 25*3 80*3
PV String Input Data Max. DC Input Power (W) 13000 13000 13000 13000 13000 13000
MPP Voltage Range (V) 160V-1000V / 600V 125~500 160V-1000V / 600V 125~500 160V-1000V / 600V 125~500
Max. DC Voltage (V) 1000 500 1000 500 1000 500
Max. PV Input Current（A） 12*2 12*2 12*2 12*2 12*3 12*3
AC Output Data Rated AC Output Power 10kVA*2 10kVA*2 10kVA*2 11.4kVA*2 10kVA*3 11.4kVA*3
AC Output Voltage（V） 230V/400V (310~476V) 240V 230V/400V (310~476V) 240V 230V/400V (310~476V) 240V
Grid Voltage Range（V） — 211~264 – 211~264 – 211~264
Max. AC Output Current (A) 15.2*2 45.4*2 15.2*2 50*2 15.2*3 50*3
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Efficiency Max. Efficiency ≥ 98.2%
Efficiency ≥ 97.2%
Warranty 10 years
Water proof IP65
Size(mm) 505*453*198mm 530*660*200mm 505*453*198mm 530*660*200mm 505*453*198mm 530*660*200 mm
Weight(KG) 28 32 28 32 28 32
Certificate UL1741SA all options, UL1699B, CSA 22.2，IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III
