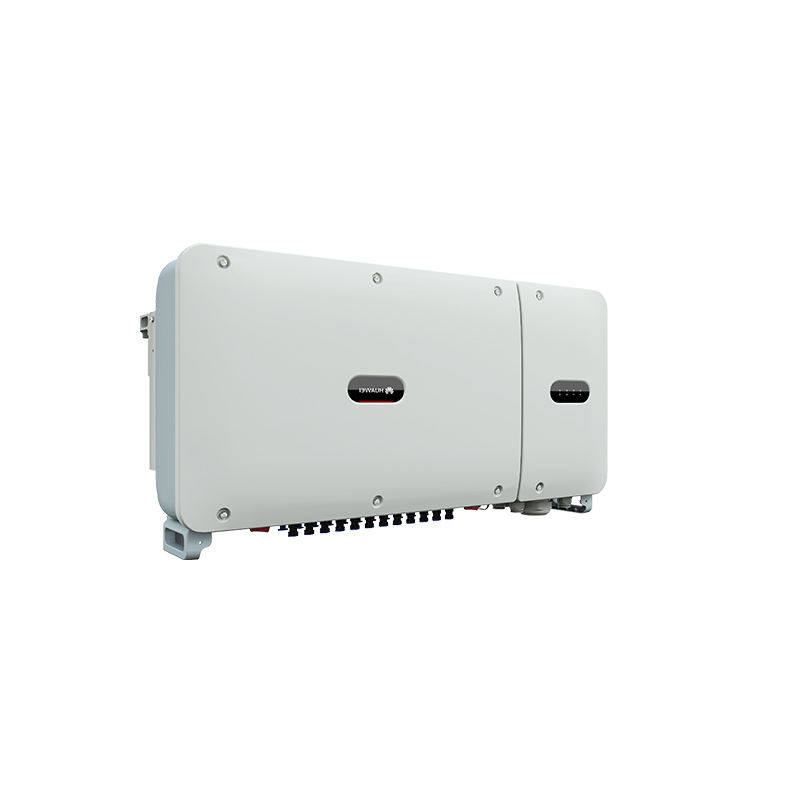

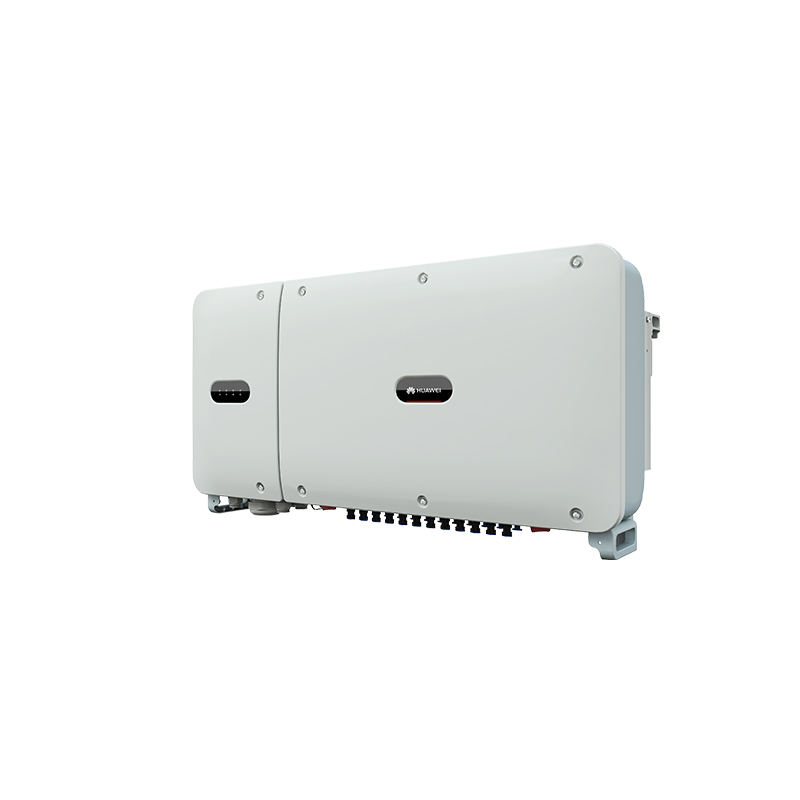

Huawei solar inverter SUN2000-60KTL-M0
Huawei solar inverter SUN2000-60KTL-M0
|
Technical Specification
|
SUN2000-60KTL-M0 | |||
|
Efficiency
|
||||
|
Max. efficiency
|
98.9% @480 V; 98.7% @380 V / 400 V | |||
|
European efficiency
|
98.7% @480 V; 98.5% @380 V / 400 V | |||
|
Input
|
||||
|
Max. Input Voltage
|
1100V | |||
|
Max. Current per MPPT
|
22A | |||
|
Max. Short Circuit Current per MPPT
|
30A | |||
|
Start Voltage
|
200V | |||
|
MPPT Operating Voltage Range
|
200V~1000V | |||
|
Rated Input Voltage
|
600 V @380 Vac / 400 Vac; 720 V @480 Vac | |||
|
Number of MPP trackers
|
6 | |||
|
Max. input number per MPP tracker
|
2 | |||
|
Output
|
||||
|
Rated AC Active Power
|
60,000 W | |||
|
Max. AC Apparent Power
|
66,000 VA | |||
|
Max. AC Active Power (cosφ=1)
|
66,000 W | |||
|
Rated Output Voltage
|
220 V / 380 V, 230 V / 400 V, default 3W + N + PE; 3W + PE optional in settings; 277 V / 480 V, 3W + PE | |||
|
Rated AC Grid Frequency
|
50 Hz / 60 Hz | |||
|
Rated Output Current
|
91.2 A @380 V, 86.7 A @400 V, 72.2 A @480 V | |||
|
Max. Output Current
|
0.8 leading… 0.8 lagging | |||
|
Max. Total Harmonic Distortion
|
＜3% | |||
|
Protection
|
||||
|
Input-side Disconnection Device
|
Yes | |||
|
Anti-islanding Protection
|
Yes | |||
|
AC Overcurrent Protection
|
Yes | |||
|
DC Reverse-polarity Protection
|
Yes | |||
|
PV-array String Fault Monitoring
|
Yes | |||
|
DC Surge Arrester
|
Type II | |||
|
AC Surge Arrester
|
Type II | |||
|
DC Insulation Resistance Detection
|
Yes | |||
|
Residual Current Monitoring Unit
|
Yes | |||
|
Communication
|
||||
|
Display
|
LED indicators; WLAN adaptor + FusionSolar APP | |||
|
RS485
|
Yes | |||
|
USB
|
Yes | |||
|
Monitoring BUS (MBUS)
|
Yes (isolation transformer required) | |||
|
Smart Dongle-4G
|
4G / 3G / 2G via Smart Dongle – 4G (Optional) | |||
|
General Data
|
||||
|
Dimensions (W x H x D)
|
1,075 x 555 x 300 mm (42.3 x 21.9 x 11.8 inch) | |||
|
Weight (with mounting plate)
|
74 kg (163.1 lb.) | |||
|
Operating Temperature Range
|
-25°C ~ 60°C (-13°F ~ 140°F) | |||
|
Cooling Method
|
Natural Convection | |||
|
Max. Operating Altitude
|
4,000 m (13,123 ft.) | |||
|
Relative Humidity
|
0 ~ 100% | |||
|
DC Connector
|
Amphenol Helios H4 | |||
|
AC Connector
|
Waterproof PG Terminal + Terminal Clamp | |||
|
Protection Degree
|
IP65 | |||
|
Topology
|
Transformerless | |||
|
Nighttime Power Consumption
|
< 2 W | |||
|
Standard Compliance (more available upon request)
|
||||
|
Certificate
|
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683 | |||
|
Grid Connection Standards
|
IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, VDE 4120, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11 |
|||
