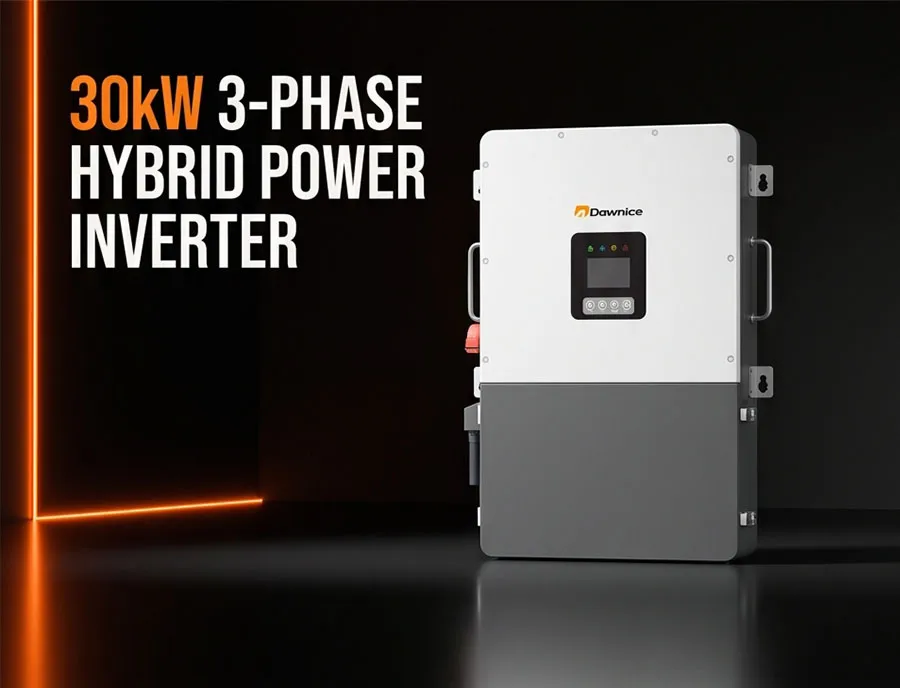

DWH-30K-HP3SA-S Three Phase Hybrid Inverter
-
High-Efficiency Performance: Delivers superior performance with 100% unbalanced three-phase output, achieving a maximum inverter efficiency of 98.00% and an exceptional MPPT efficiency of 99.90%.
-
Advanced MPPT & Solar Input: Features 4 MPPTs (2+2+2+2 strings) supporting up to 60kW maximum PV input power, a wide MPPT voltage range of 150-950Vd.c., and supports 1.67X PV oversizing.
-
Versatile Battery System: Compatible with Lithium and Lead-acid batteries across a 150-700Vd.c. voltage range, equipped with two independent high-voltage battery inputs, and delivers a maximum charge/discharge current of 2*100A for large LFP systems.
-
Reliable EPS Capability: Ensures critical power continuity with a fast switch time of <20ms, dual AC inputs for seamless grid and diesel generator switching, and a 2X enhanced bypass capability handling up to 60kW.
-

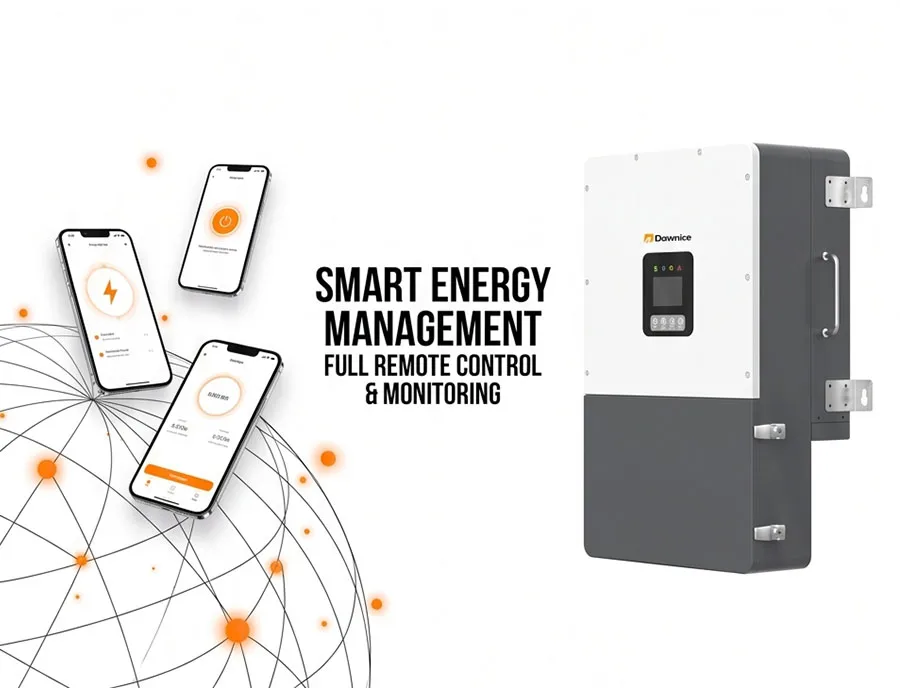

Smart Monitoring & Safety: Designed with All-SiC technology and an IP66 rating for harsh outdoors, featuring App, LED, and LCD interfaces, alongside robust protections including ground fault monitoring and residual current detection.

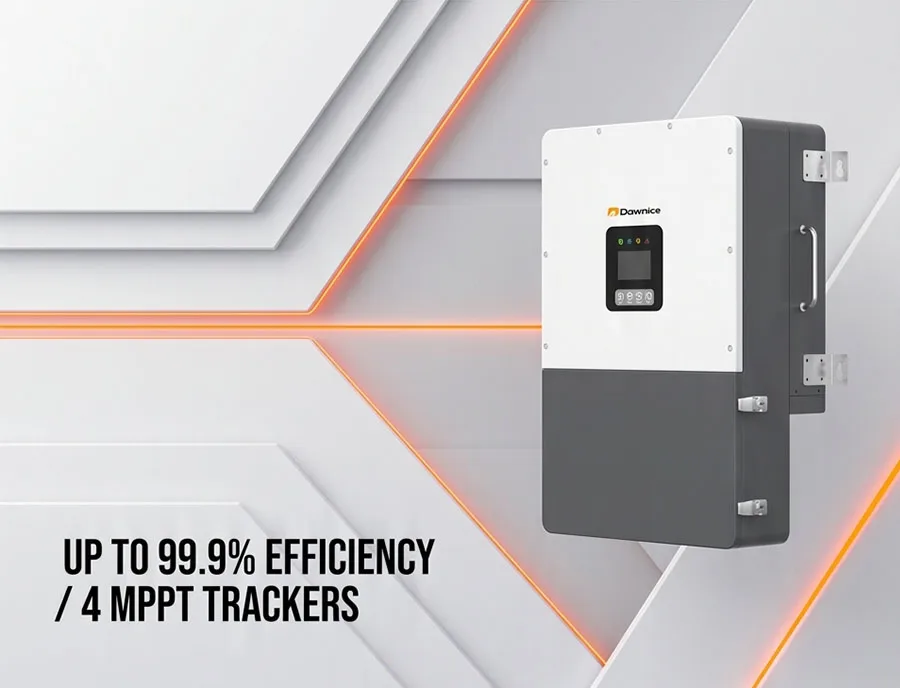

Q1: What is the maximum efficiency of the DWH-30K-HP3SA-S hybrid inverter?
A: The inverter delivers a maximum efficiency of 98.00%, with an impressive MPPT efficiency of up to 99.90%.
Q2: Can this inverter handle high inrush loads and generator inputs?
A: Yes, it features a 2X enhanced bypass capability (up to 60kW) for high inrush loads and supports dual AC inputs with automatic seamless switching between the grid and a diesel generator.
Q3: Does it require an external transformer for 127/220V grids?
A: No, the inverter features native 127/220V grid compatibility specifically designed for LATAM and Caribbean split-phase grids, requiring no external transformers.
Q4: How many MPPT trackers does the inverter have, and what is its maximum PV input?
A: It is equipped with 4 MPPT trackers supporting up to 60kW maximum PV input power and allows for 1.67X PV oversizing.

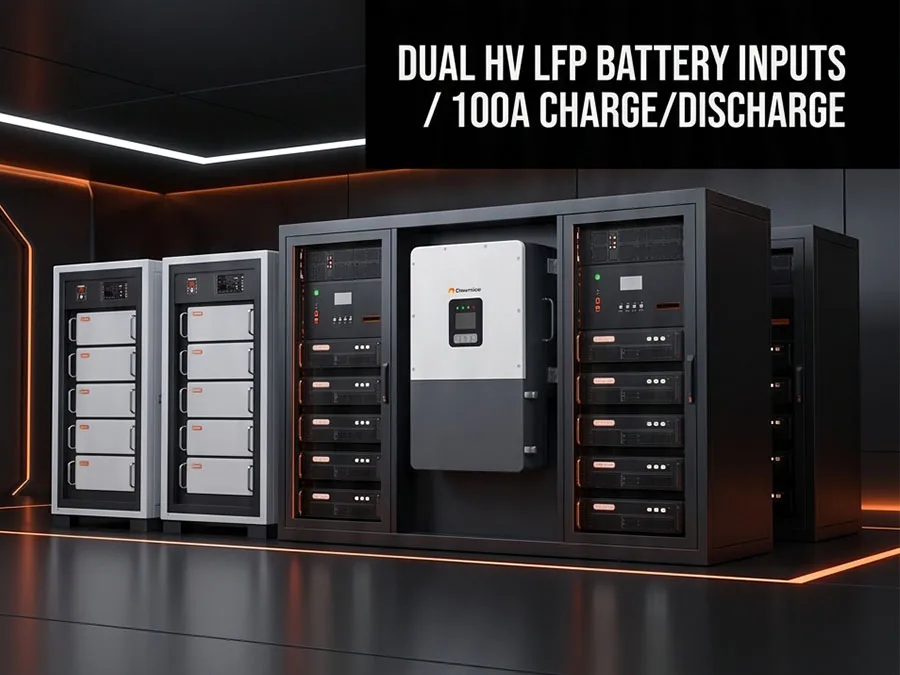

Q5: What are the battery compatibility and charging specifications?
A: The inverter is compatible with both Lithium and Lead-acid batteries, featuring dual independent high-voltage battery inputs with a maximum charge and discharge current of 100A per port.

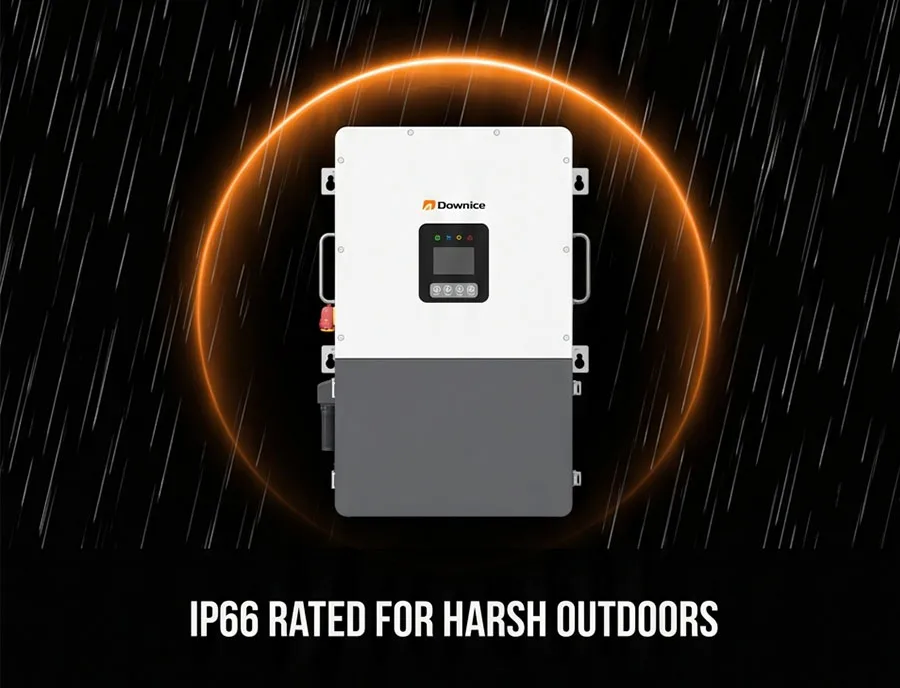

Q6: Is the inverter suitable for harsh outdoor environments?
A: Yes, it has an IP66 protection degree and utilizes All-SiC technology, ensuring robust safety and durability in harsh outdoor conditions.
