Deye 20KW Hybrid Inverter Product Description
1.Deye inverter is easy to operate, convenient and fully functional.
2.Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.
3.Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.
4.High efficiency up to 99%. Ingress protection IP65.
5.App store support IOS/Android.
6.Dawnice solar energy system product supply chain has received favors and praises from various overseas home use customers, small business customers , government projects.
Deye 20kva Hybrid Solar Inverter Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

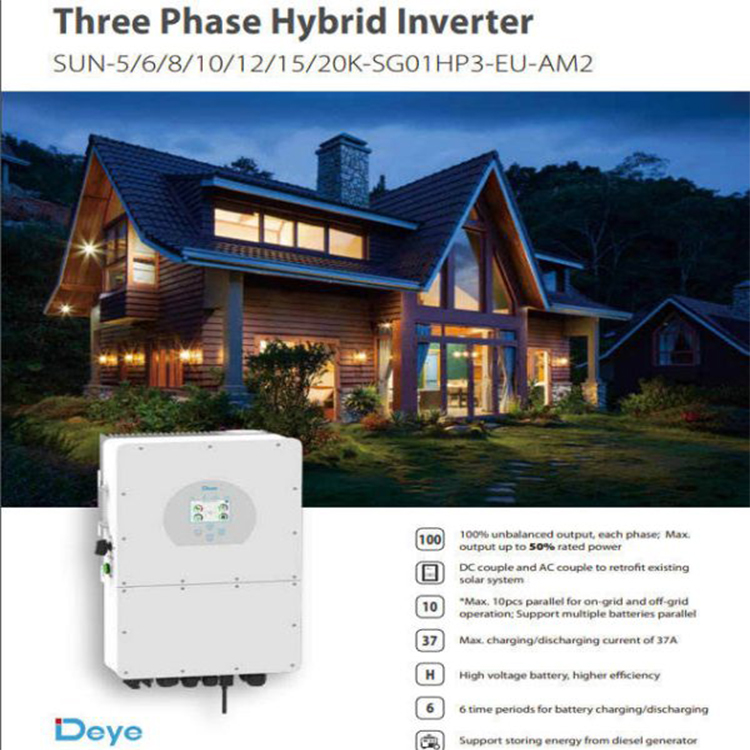

Deye 20kw 3 Phase Hybrid Inverter Features
What can Dawnice do?
|
Model
|
SUN-20K-SG01HP3-EU-AM2 | |
|
Battery Input Data
|
||
|
Battery Type
|
Lithium-ion | |
|
Battery Voltage Range (V)
|
160~700V | |
|
Max. Charging Current (A)
|
37 | |
|
Max. Discharging Current (A)
|
37 | |
|
Number of battery input
|
1 | |
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS | |
|
PV String Input Data
|
||
|
Max. DC Input Power (W)
|
26000W | |
|
Max. DC Input Voltage (V)
|
1000 | |
|
Start-up Voltage (V)
|
180V | |
|
MPPT Range (V)
|
150V-850V | |
|
Full Load DC Voltage Range (V)
|
500-850 | |
|
Rated DC Input Voltage (V)
|
600 | |
|
PV Input Current (A)
|
26A+26A | |
|
Max. PV ISC (A)
|
39A+39A | |
|
Number of MPPT / Strings per MPPT
|
2/2 | |
|
AC Output Data
|
||
|
Rated AC Output and UPS Power (W)
|
20000W | |
|
Max. AC Output Power (W)
|
22000W | |
|
Peak Power (off grid)
|
1.5 times of rated power, 10 S | |
|
AC Output Rated Current (A)
|
30.4/29 | |
|
Max. AC Current (A)
|
35 | |
|
Max. Continuous AC Passthrough (A)
|
80A | |
|
Output Frequency and Voltage
|
50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |
|
Grid Type
|
Three Phase | |
|
DC injection current (mA)
|
<0.5%1n | |
|
Efficiency
|
||
|
Max. Efficiency
|
97.60% | |
|
Euro Efficiency
|
97.00% | |
|
MPPT Efficiency
|
99.90% | |
|
Protection
|
||
|
PV Input Lightning Protection
|
Integrated | |
|
Anti-islanding Protection
|
Integrated | |
|
PV String Input Reverse Polarity Protection
|
Integrated | |
|
Insulation Resistor Detection
|
Integrated | |
|
Residual Current Monitoring Unit
|
Integrated | |
|
Output Over Current Protection
|
Integrated | |
|
Output Shorted Protection
|
Integrated | |
|
Surge protection
|
Integrated | |
|
Output Over Voltage Protection
|
DC Type II / AC Type Ⅲ | |
|
Certifications and Standards
|
||
|
Grid Regulation
|
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |
|
General Data
|
||
|
Operating Temperature Range (℃)
|
-40~60℃, >45℃ Derating | |
|
Cooling
|
Smart cooling | |
|
Noise (dB)
|
<55 dB | |
|
Communication with BMS
|
RS485; CAN | |
|
Weight (kg)
|
35 | |
|
Size (mm)
|
840W*345H*375D | |
|
Protection Degree
|
IP65 | |
|
Installation Style
|
Wall-mounted | |
|
Warranty
|
5 years | |
