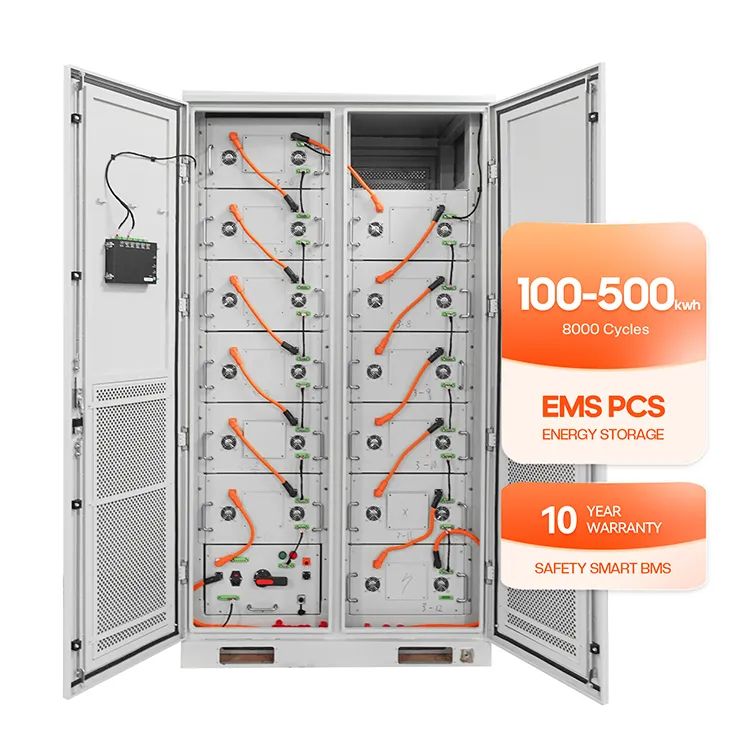

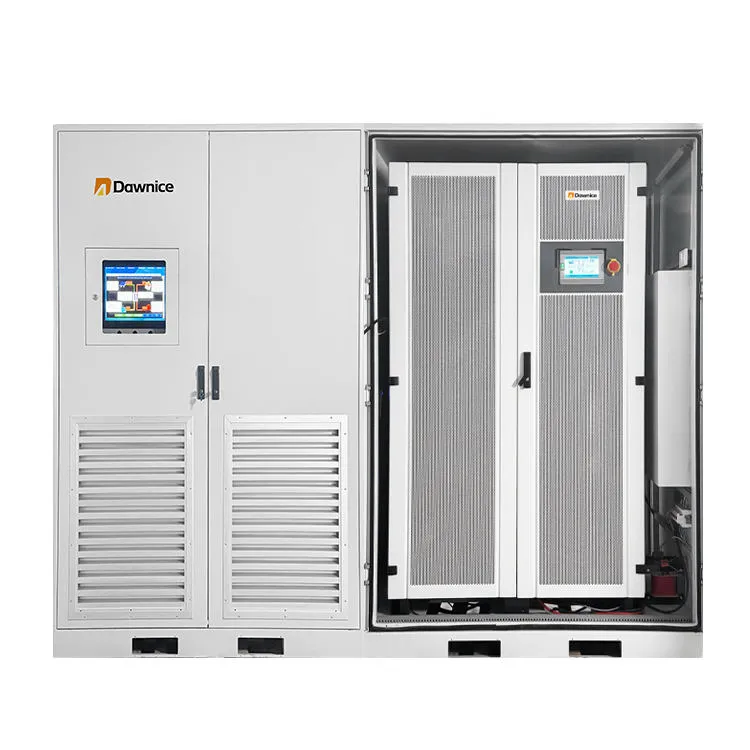

Product Descriptions for 100 kilowatt 200kwh 300 kwh
400 kwh 500 kwh lithium ion battery pack
Specification
|
Product Model
|
PLPF0280C0-2227R2A | PLPF0280C0-3712R0A |
|
Cell Type
|
3.2V 280Ah LFP Battery | |
|
Cell Life
|
≥6000Time@100%DOD,80%EOL | |
|
Capacity
|
623.616KWh | 1039.36KWh |
|
Rated Voltage
|
626.4-846.8V | 626.4-846.8V |
|
Rated Output Power
|
250kW | 500kW |
|
AC Output Power
|
360A | 720A |
|
Rated Grid Voltage
|
400V | 400V |
|
Grid Voltage Range
|
±15% | |
|
Rated Grid Frequency
|
50Hz/60Hz | |
|
Grid Frequency Range
|
±2.5Hz | |
|
AC Off Grid Voltage
|
400V | |
|
Container Size
|
6058 * 2896X 2438mm | 9125 * 2896X2438mm |
|
Humidity Range
|
0-95% (without condensation) | |
|
Operating Temperature Range
|
30-60 ℃ (>40 ℃ derating) | |
|
Converter Cooling Method
|
Forced Air Cooling | |
|
Temperature Control System
|
Industrial grade temperature controlled air conditioning | |
|
Fire Protection System
|
FM200 fire protection system+water fire protection (optional) | |
Our advantages
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
2. Protection : Each battery built-in BMS — Battery Management System.
3. Communication port : RS485/RS232/CAN,
4. Compatible : All hybrid and off grid inverter (Except Huawei, all inverters on the market can be make compatible by our engineer. only need to provide the inverter communication protocol)
5. Warranty : 5years. For long term cooperation customer, we can up to 10 years.
6. Maintenance free & Low self discharge & Fast & efficient charging.
7. Free cables + paper version user manual.

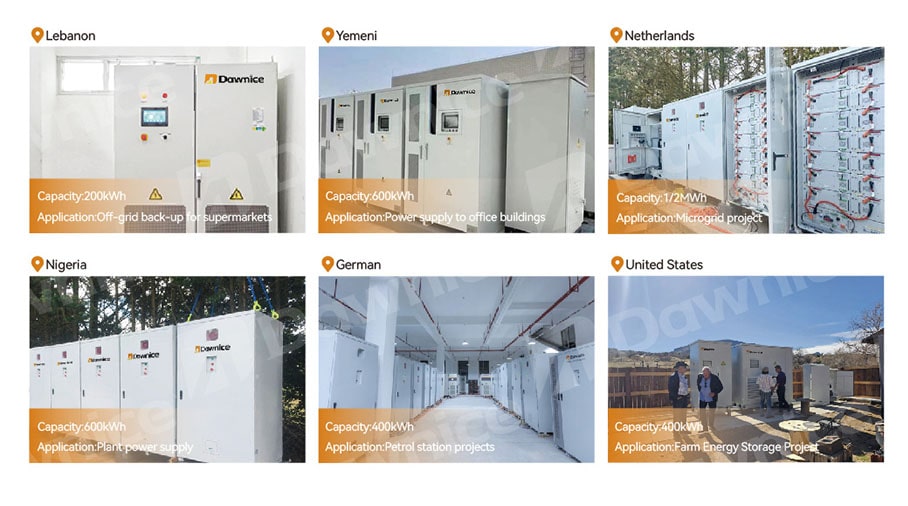

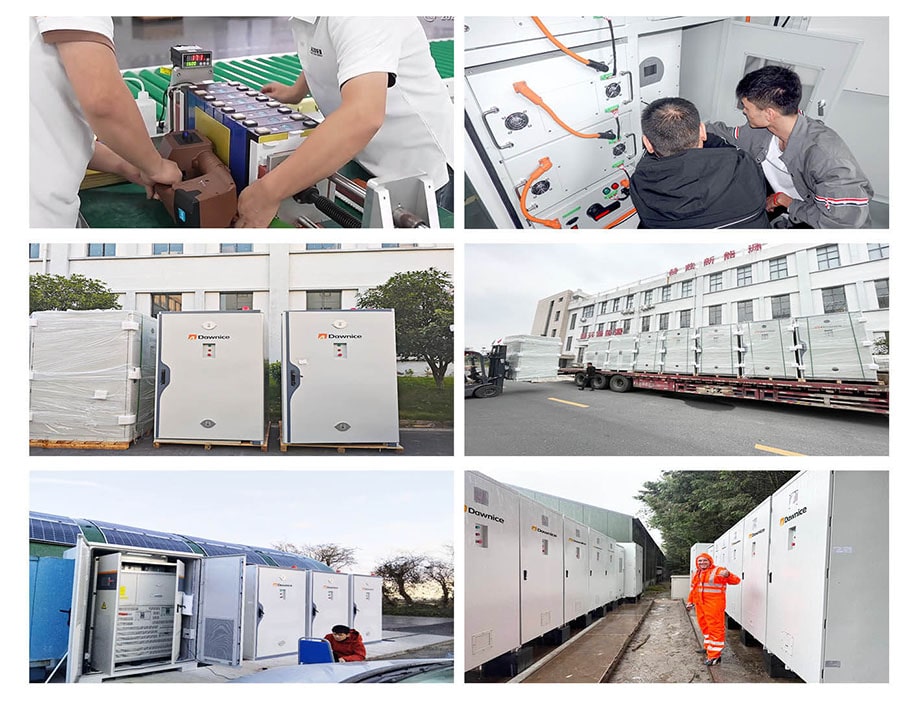

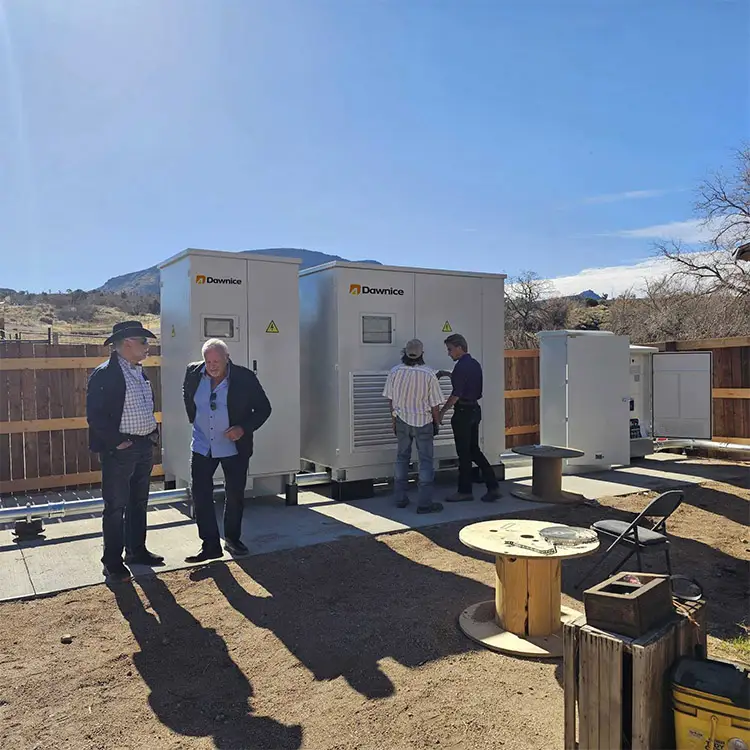

Application project

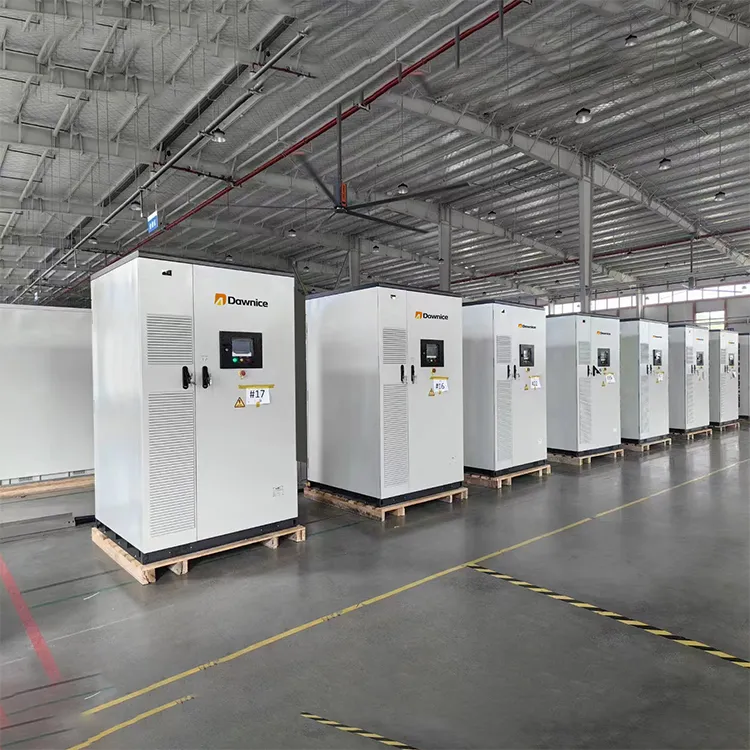

Company Profile
Dawnice factory was established in 2009, with 30 product patent certificates, specializing in BESS, ENERGY STORAGE BATTERY , Solar Energy Systems. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to global customers. Supply to more than 50 traders, and export to the United States, Canada,Germany, Australia, Lebanon, the Philippines and other countries.
