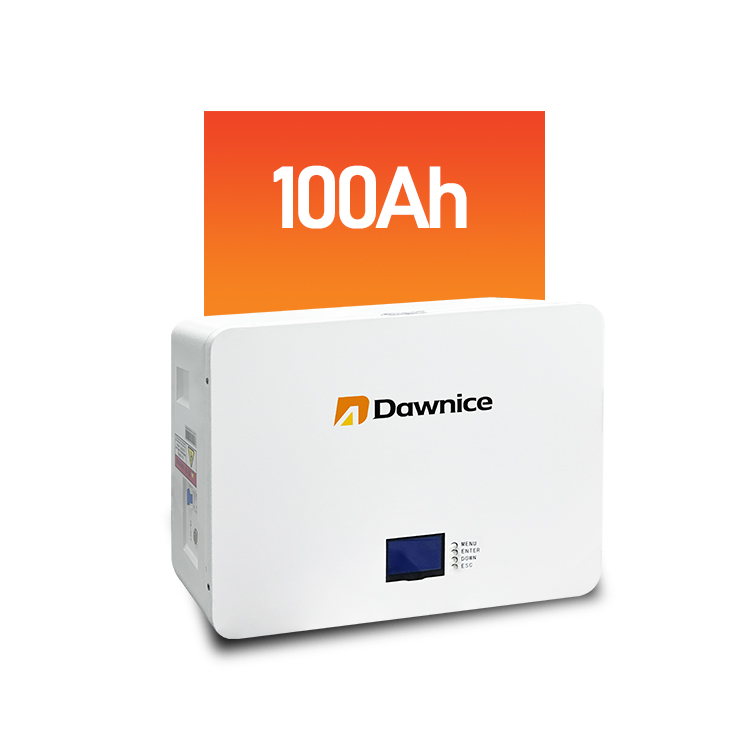

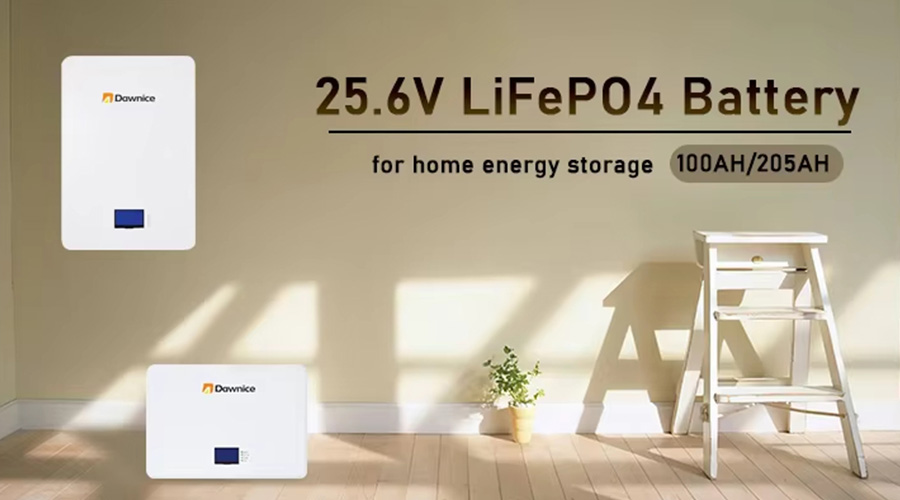

Dawnice 24v 100ah Lifepo4 Battery

Product Name: Dawnice 2.5 kWh lithium battery
Model Number: HZEB-LCT-2.5

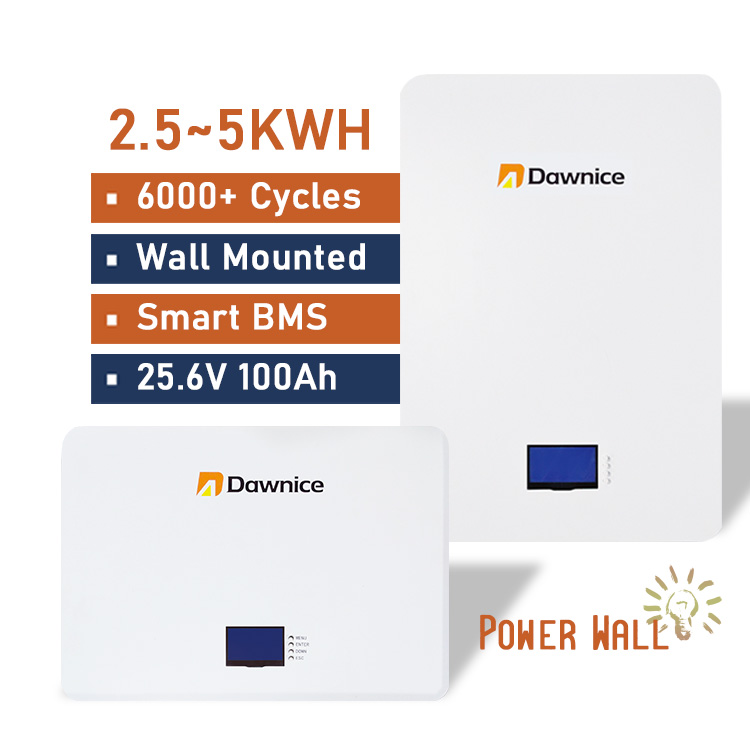

Features: 10 years long warranty period, Higher energy density, Smaller volume
Maximum support 15 units in parallel, Built-in BMS monitors operation,Wall mounted, More space saving

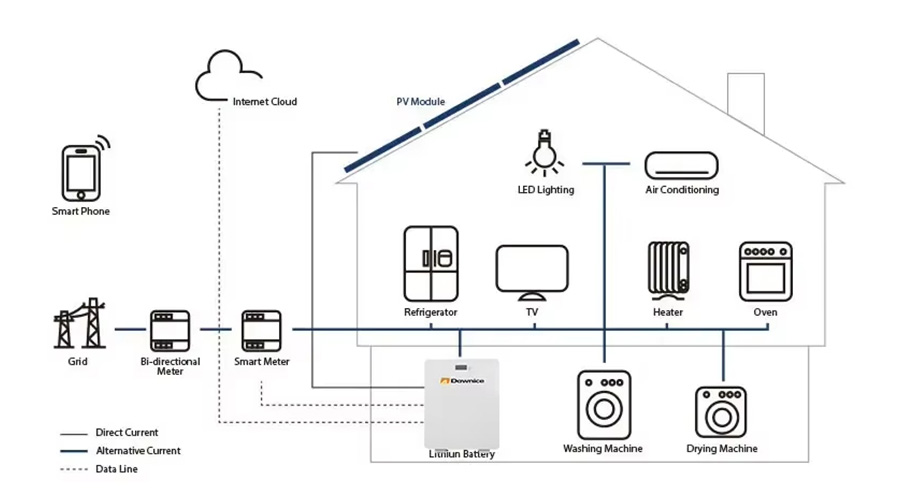

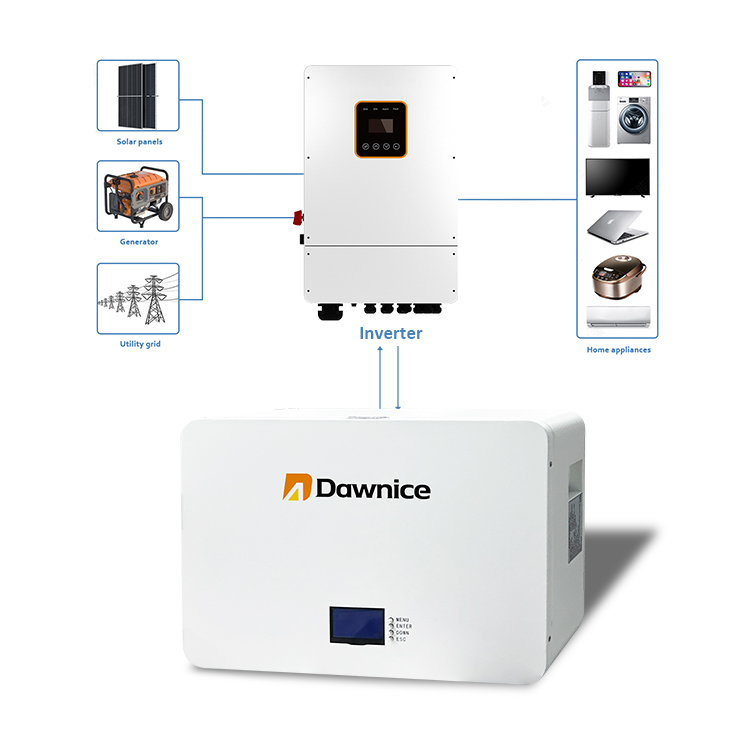

Grid Type: Hybrid/Off Grid
Certification: Cell: IEC/CE/UN38.3/MSDS
Cycle Life: ≥6000Cycles@25℃, 80%DOD
Waterproof: IP20
Battery :25.6v 100ah Battery

Send Inquiry

Factory Direct Price

Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house & commercial solar system solution customization services.

Email

Contact Us

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Email

Contact Us

Product Specifications

Model	HZEB-LCT-2.5	HZEB-LCT-5-24
Nominal Voltage	25.6V
Capacity	100Ah	205Ah
Rated Energy	2.56kWh	5.25kWh
Max.Charge/Discharge Current	50A/50A	100A/100A
Voltage Range(Vdc)	22.4-28.8V
Scalability	Up to 15 parallel
Communication	CAN/RS485
Cycle Life	≥6,000times，25±2℃,100%DOD，0.5C，80%SOH
Design Life	≥15Years(25℃)

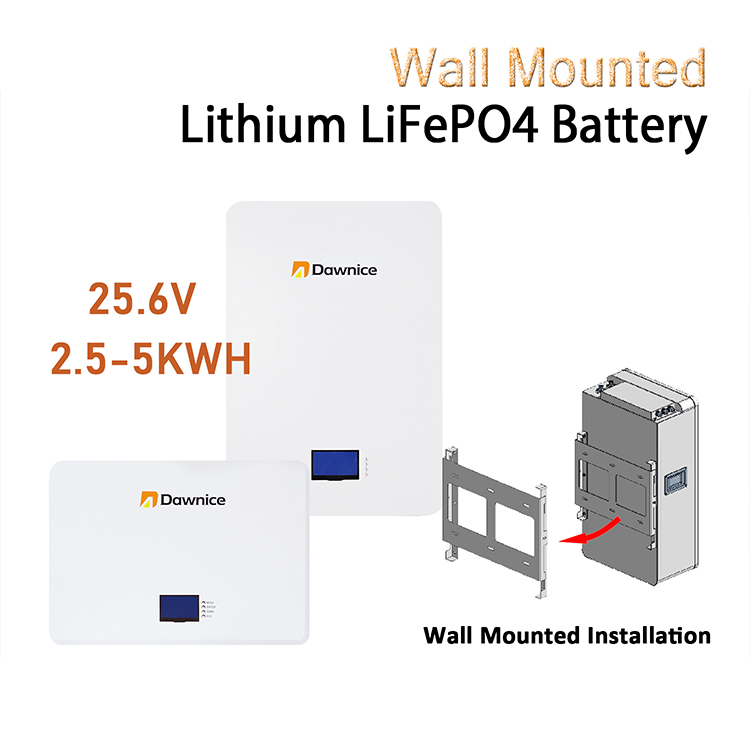

Installation Mode	Wall Mounnted
IP Grade	IP20
Safety	MSDS/UN38.3
Protection	Short circuit protection, overcharge protection, discharge protection, overcurrent protection, over temperature protection
Operating Temperature(C)	Charge 0°C~50℃;Discharge-10°C~-50C
Altitude(m)	≤2000
Humidity	≤95%(Non-condensing)
