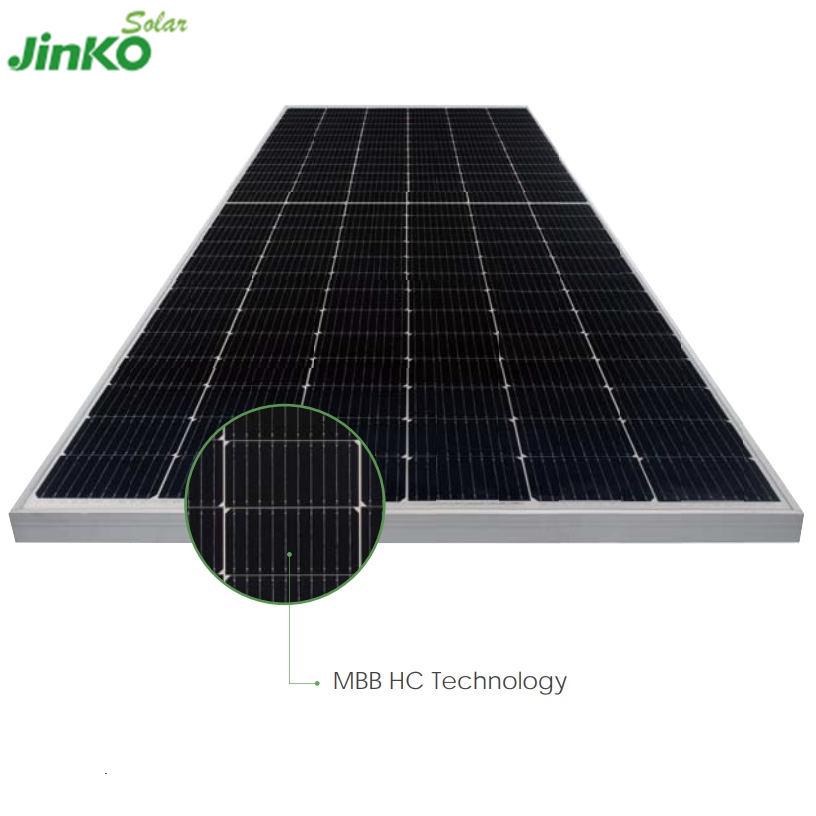

Jinko 525-545w Tiger Pro 72HC-TV solar panel
- Place of Origin: Yichun, China
- Brand Name: Jinko
- Model Number: JKM545M-72HL4-BDVP
- Cell Size: 182mmx182mm
- Type: PERC, Bifacial, Double-glass
- Panel Dimensions: 2274*1134*30 mm
- Panel Efficiency: 21.13%
- Certificate: IEC
- Warranty: 25 years
- Front Glass: 3.2mm Tempered Glass
Featutres
- Multi Busbar Technology
- PID Resistance
- Higher Power Output
- Longer life-time power yield
- Enhanced mechanical load
- Linear performance warranty
What can Dawnice do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
|
Product number
|
JKM525M-72HL4-TV | JKM530M-72HL4-TV | JKM535M-72HL4-TV | JKM540M-72HL4-TV | JKM545M-72HL4-TV |
|
quality assurance
|
|||||
|
product quality assurance
|
12 years | ||||
|
Power output guaranteed
|
30-year 84.95% output power guarantee | ||||
|
Electrical performance parameters (STC)
|
|||||
|
Peak power (Pmax)
|
525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp |
|
Peak working voltage (Vmpp)
|
40.61 V | 40.71 V | 40.81 V | 40.91 V | 41.07 V |
|
Peak operating current (Impp)
|
12.93 A | 13.02 A | 13.11 A | 13.2 A | 13.27 A |
|
Open circuit voltage (Voc)
|
49.27 V | 49.35 V | 49.42 V | 49.49 V | 49.65 V |
|
Short circuit current (Isc)
|
13.64 A | 13.71 A | 13.79 A | 13.87 A | 13.94 A |
|
Component efficiency
|
20.36% | 20.55% | 20.75% | 20.94% | 21.13% |
|
Power deviation (positive)
|
3% | 3% | 3% | 3% | 3% |
| Standard test conditions (STC): solar radiation flux 1000W/m2, atmospheric parameter 1.5, module temperature 25℃. | |||||
|
Electrical performance parameters (NOCT)
|
|||||
|
Peak power (Pmax)
|
391 Wp | 394 Wp | 398 Wp | 402 Wp | 405 Wp |
|
Peak working voltage (Vmpp)
|
37.74 V | 37.88 V | 37.98 V | 38.08 V | 38.18 V |
|
Peak operating current (Impp)
|
10.35 A | 10.41 A | 10.48 A | 10.55 A | 10.62 A |
|
Open circuit voltage (Voc)
|
46.5 V | 46.58 V | 46.65 V | 46.71 V | 46.86 V |
|
Short circuit current (Isc)
|
11.02 A | 11.07 A | 11.14 A | 11.2 A | 11.26 A |
|
maximum endurance temperature
|
45±2 °C | ||||
| Cell nominal operating temperature (NOCT): solar radiation flux 800W/m2, atmospheric parameter 1.5, ambient temperature 20°C, wind speed 1 m/s. | |||||
|
temperature characteristics
|
|||||
|
Operating temperature
|
-40~85 °C | ||||
|
Temperature coefficient (Pmax)
|
-0.35 %/°C | ||||
|
Temperature Coefficient (Voc)
|
-0.28 %/°C | ||||
|
Temperature Coefficient (Isc)
|
0.048 %/°C | ||||
|
System Integration Parameters
|
|||||
|
Maximum system voltage
|
1500 V | ||||
|
Fuse rated current
|
30 A | ||||
|
physical parameters
|
|||||
|
Component size (height/width/thickness)
|
2274x1134x35 mm | ||||
|
weight
|
28 kg | ||||
|
Cell type
|
double sided | ||||
|
Number of cells
|
144 | ||||
|
glass type
|
Anti-reflective coating, tempered | ||||
|
glass thickness
|
3.2 mm | ||||
|
border type
|
Anodized aluminum alloy | ||||
|
Junction box protection class
|
IP 68 | ||||
|
Cable cross section
|
4 mm2 | ||||
