Dawnice 5KW 8KW 12KW Hybrid Solar System for EU/US with Low Voltage Battery Storage System

  • Product name: Dawnice hybrid solar system
  • Model Number: DW01LV-5KW-12KW LP1-EU/US
  • Application: Home,Commercial,Industrial,Other
  • Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
  • Inverter Type: Hybrid inverter with MPPT controller
  • Controller Type: MPPT
  • Mounting Type: Ground Mounting/Roof Mounting
  • PV Power (KW): 5 / 8 / 12
  • Output Frequency: 50HZ/60HZ
  • Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
  • Type: Hybrid solar system
  • Solar Solution:Customized
  • Battery Input Voltage(V): 40-60

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

WhatsApp
Email
Contact Us

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

WhatsApp
Email
Contact Us

Dawnice advantage:

1.Intelligent and efficient：

  • Storage of surplus electricity, improve the use rate of PV power .
  • PV and mains can charge the battery
  • Flexible configuration of lead-acid and lithium-ion batteries
  • All in one design: charging, control , inverter
  • Compatible with off-grid and on-grid modes

2.Flexible operation：

  • Various communication ：Wi-Fi/Ethernet/GPRS/RS485
  • Peak and valley time can be set, automatic peak cutting and valley filling.
  • Remote control by computer or phone
  • LCD display,easy operation

3. Stable and reliable.

  • High protectionand A grade battery cell
  • Smart BMS to ensure battery life
  • Heat dissipation, reduce failure rate
  • 4.EU/US MARKET AVAILABLE
  • Completely system , high transformation efficiency,
  • More than 6000 cycle life .
  • 48V low voltage battery, transformer isolation design
Main003
part1

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

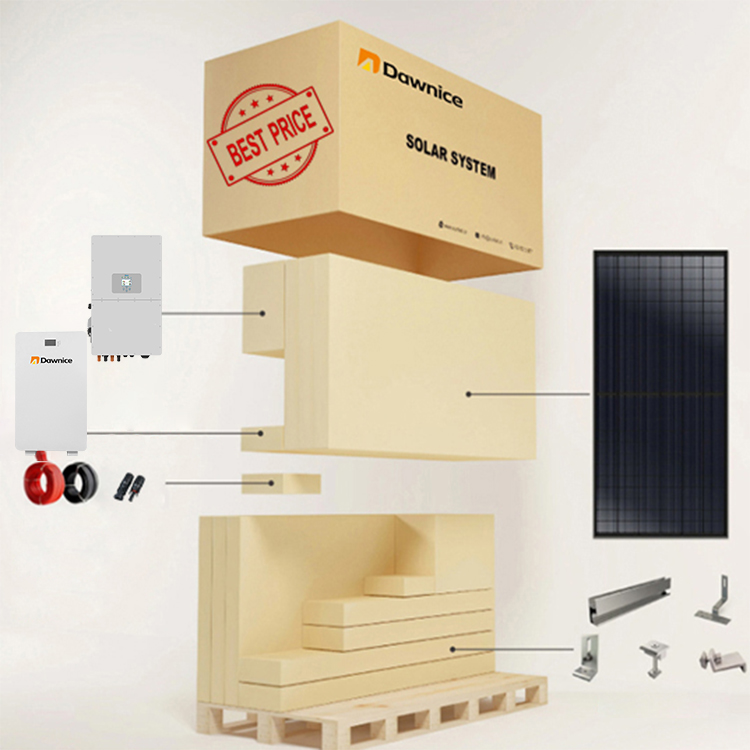

Dawnice 5-12KW Hybrid Solar Energy System
Parameters Model DW01LV-5KW-10 LP1-EU/US DW01LV-8KW-20 LP1-EU/US DW01LV-12KW-30 LP1-EU/US

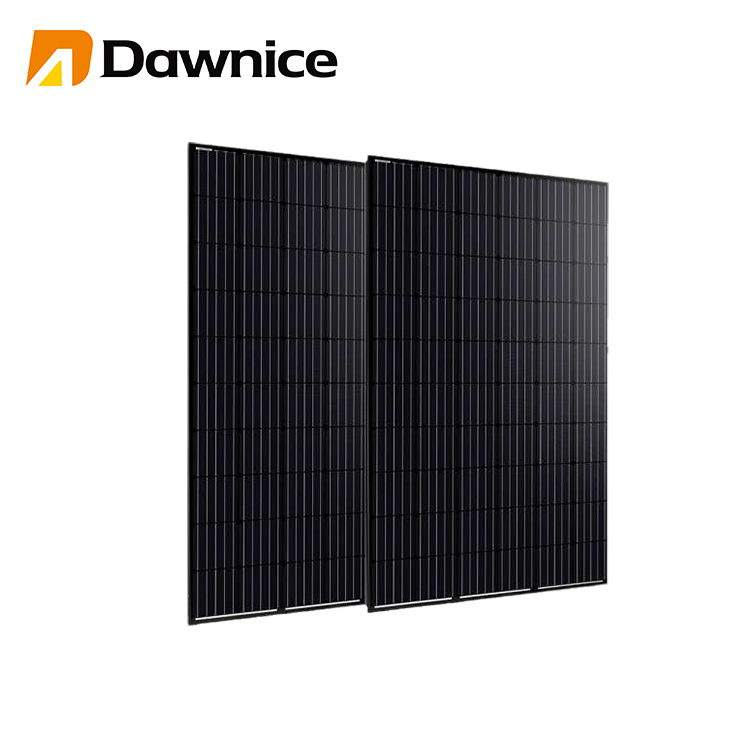

Solar Panel Specific Model DW-SP-500 DW-SP-500 DW-SP-500
Maximum Power（Wp） 500 500 500
Open-Circuit Voltage(Voc)(V) 51.01 51.01 51.01
Operating Current (Imp)（A） 11.68 11.68 11.68
Short-Circuit Current (Isc)（A） 12.46 12.46 12.46
Quantity Pcs 10 16 24
Size(mm) 2220*1102*35
Weight(KG) 27
Warranty time 25 years
Certificate IEC61215:2016;IEC61730-1/-2:2016;

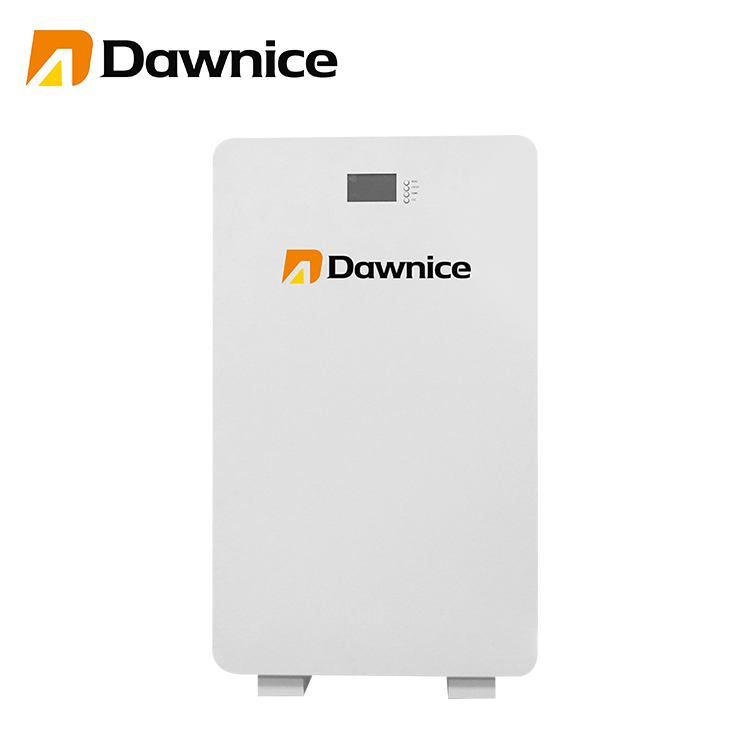

Storage Battery
Model
 DW-10KWESS*1 DW-10KWESS*2 DW-10KWESS*3
Cell Type
 Li-ion(LFP)
Nominal Voltage（V）
 51.2
Normal Capacity
 200AH
Total Energy(KWH)
 10.24 20.48 30.72
Cycle times
 6000
Communication
 CAN /RS485
Standard Charging / Discharging Current
 100A/100A
Size(mm)
 360*190 x700 /SET
Weight(KG)
 98/SET
Water proof
 IP21
Warranty time
 10 years
Certificate
 UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

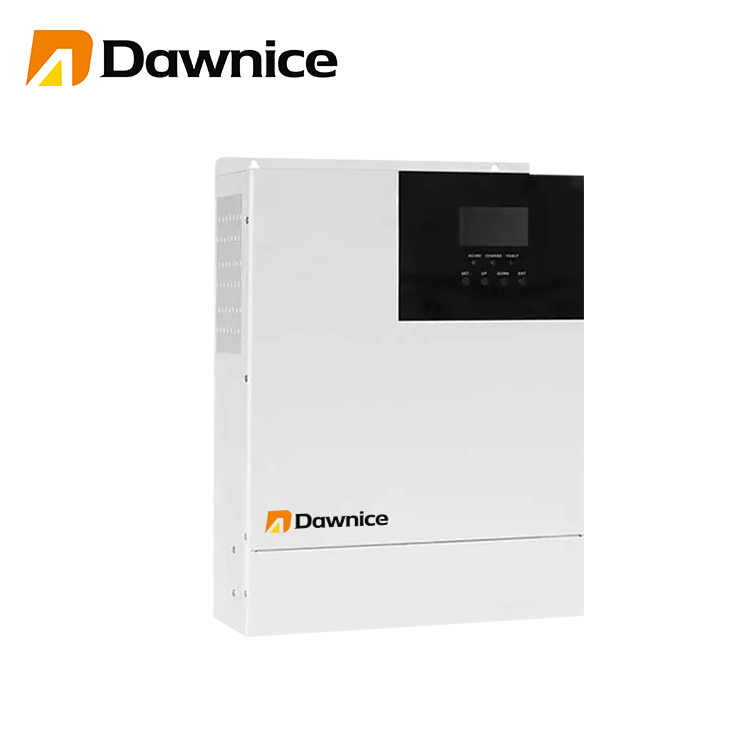

Hybrid Inverter Model DW－5KW-DY-EU DW－5KW-DY-US DW－8KW-DY-EU DW－8KW-DY-US DW－12KW-DY-EU
Battery Input Data Battery Voltage Range (V) 40~60 40~60 40~60
Max. Charging &Discharging Current (A) 120 190 240
PV String Input Data Max. DC Input Power (W) 6500 10400 15600
Rated PV Input Voltage (V) 370 (125~500) 370 (125~500) 550 (160-800)
MPPT Range (V) 150-425 150-425 200-650
PV Input Current (A) 13+13 26+26 26+13
AC Output Data Rated AC Output and UPS Power (W) 5000 8000 120000
Max. AC Output Power (W) 5500 8800 13200
AC Output Rated Current (A) 22.7 20.8 / 24 36.4 33.3 / 38.5 52.2
Max. AC Output Current (A) 25 22.9 / 26.4 40 36.7 / 42.3 /
Output Frequency and Voltage 50/60Hz; 220/230Vac 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) 50/60Hz; 220/230Vac (single phase) 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) 50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type Single Phase Split phase; Single Phase Single Phase Split Phase;Single Phase Three phase
Efficiency Max. Efficiency 97.60%
MPPT Efficiency 99.90%
Warranty 5 years
Water proof IP65
Size(mm) 330W×580H×232D 420W×670H×233D 330W×580H×232D 420W×670H×233D 464W×798.4H×300D
Weight(KG) 20.5 32 20.5 32 48.5
Certificate IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
