Dawnice 5KW 8KW 12KW Hybrid Solar System for EU/US with High Voltage Battery Storage System
- Product name: Dawnice hybrid solar system
- Model Number: DW01HV-5KW-12KW LP1-EU/US
- Application: Home,Commercial,Industrial,Other
- Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
- Inverter Type: Hybrid inverter with MPPT controller
- Controller Type: MPPT
- Mounting Type: Ground Mounting/Roof Mounting
- PV Power (KW): 5 / 8 / 12
- Output Frequency: 50HZ/60HZ
- Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
- Type: Hybrid solar system
- Solar Solution:Customized
- Battery Input Voltage(V): 85-400(US);100-550(EU)
Dawnice advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
What can Dawnice do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
| Dawnice 5-12KW Hybrid Solar Energy System – HV | |||||
| Parameters | Model | DW01HV-5KW-10 LP1-EU/US | DW01HV-8KW-20 LP1-EU/US | DW01HV-12KW-30 LP1-EU/US | |
| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.62 | 11.62 | 11.62 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||

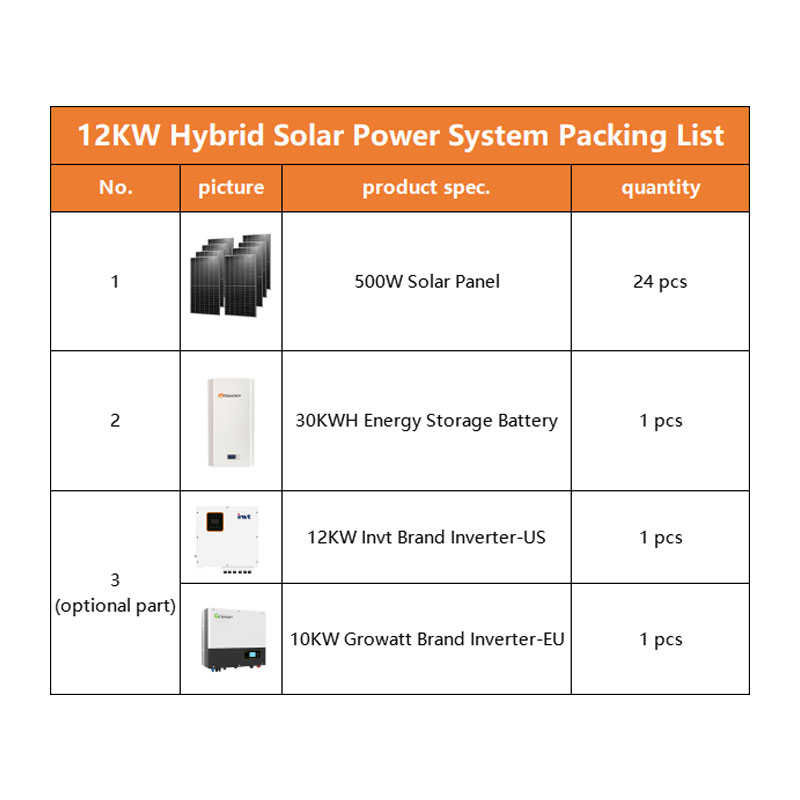

| Quantity | Pcs | 10 | 20 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
| Storage Battery | Model | DW01HV-ECO10 | DW01HV-ECO20 | DW01HV-ECO30 |
| Cell Type | Li-ion(LFP) | Li-ion(LFP) | Li-ion(LFP) | |
| Nominal Voltage（V） | 204.8 | 409.6 | 307.2 | |
| Normal Capacity | 100AH | 100AH | 100AH | |
| Total Energy(KWH) | 10.24 | 20.48 | 20.48 | |
| Cycle times | 6000 | 6000 | 6000 | |
| Communication | CAN /RS485 | CAN /RS485 | CAN /RS485 | |
| Standard Charging / Discharging Current | 25A/25A | 25A/25A | 50A/50A | |
| Size(mm) | 360*190 x700 /SET | |||
| Weight(KG) | 195 | 260 | 360 | |
| Water proof | IP21 | |||
| Warranty time | 10 years | |||
| Certificate | UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) | |||
| Hybrid Inverter | Model | DW－5KW-GW-EU | DW－6KW-INV-US | DW－10KW-GW- EU | DW－10KW-INV– US | DW－10KW-GW- EU | DW－12KW-INV– US | |
| Battery Input Data | Battery Voltage Range (V) | 100-550 | 85-400 | 100-550 | 85-400 | 100-550 | 85-400 | |
| Max. Charging Current (A) | 25 | 80 | 25 | 80 | 25 | 80 | ||
| Max. Charging Current (A) | 25 | 80 | 25 | 80 | 25 | 80 | ||
| PV String Input Data | Max. DC Input Power (W) | 6500 | 7800 | 13000 | 13000 | 13000 | 15600 | |
| MPP Voltage Range (V) | 160V-1000V / 600V | 125~500 | 160V-1000V / 600V | 125~500 | 160V-1000V / 600V | 125~500 | ||
| Max. DC Voltage (V) | 1000 | 500 | 1000 | 500 | 1000 | 500 | ||
| Max. PV Input Current（A） | 12 | 12 | 12 | 12 | 12 | 12 | ||
| AC Output Data | Rated AC Output Power | 5kVA | 6kVA | 10kVA | 10kVA | 10kVA | 11.4kVA | |
| AC Output Voltage（V） | 230V/400V (310~476V) | 240V | 230V/400V (310~476V) | 240V | 230V/400V (310~476V) | 240V | ||
| Grid Voltage Range（V） | — | 211~264 | – | 211~264 | – | 211~264 | ||
| Max. AC Output Current (A) | 7.6 | 36.4 | 15.2 | 45.4 | 15.2 | 50 | ||
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||
| Efficiency | Max. Efficiency | ≥ 98.2% | ||||||
| Efficiency | ≥ 97.2% | |||||||
| Warranty | 10 years | |||||||
| Water proof | IP65 | |||||||
| Size(mm) | 505*453*198mm | 530*660*200mm | 505*453*198mm | 530*660*200mm | 505*453*198mm | 530*660*200 mm | ||
| Weight(KG) | 28 | 32 | 28 | 32 | 28 | 32 | ||
| Certificate | UL1741SA all options, UL1699B, CSA 22.2，IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III | |||||||
