Dawnice EU Version 20KW Solar Energy System Full Set 3 Phase 20KVA Hybrid Solar System

  • Product name: Dawnice hybrid solar system
  • Model Number: DW01LV-20KWKW LP1-EU

  • Application: Home,Commercial,Industrial,Other
  • Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
  • Inverter Type: Hybrid inverter with MPPT controller
  • Controller Type: MPPT
  • Mounting Type: Ground Mounting/Roof Mounting
  • PV Power (KW):20
  • Output Frequency: 50HZ/60HZ
  • Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
  • Type: Hybrid solar system
  • Solar Solution:Customized
  • Battery Input Voltage(V): 40-60(EU)

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

DW01LV-ECO40 40kwh Solar Energy Battery

DW01LV-ECO40 40kwh Solar Energy Battery

  • 1.Capacity: 40kwh
  • 2.Grade A CATL Cells
  • 3.With Bms Inside
  • 4.6000+ Cycle Time
  • 5.10 Years Warranty

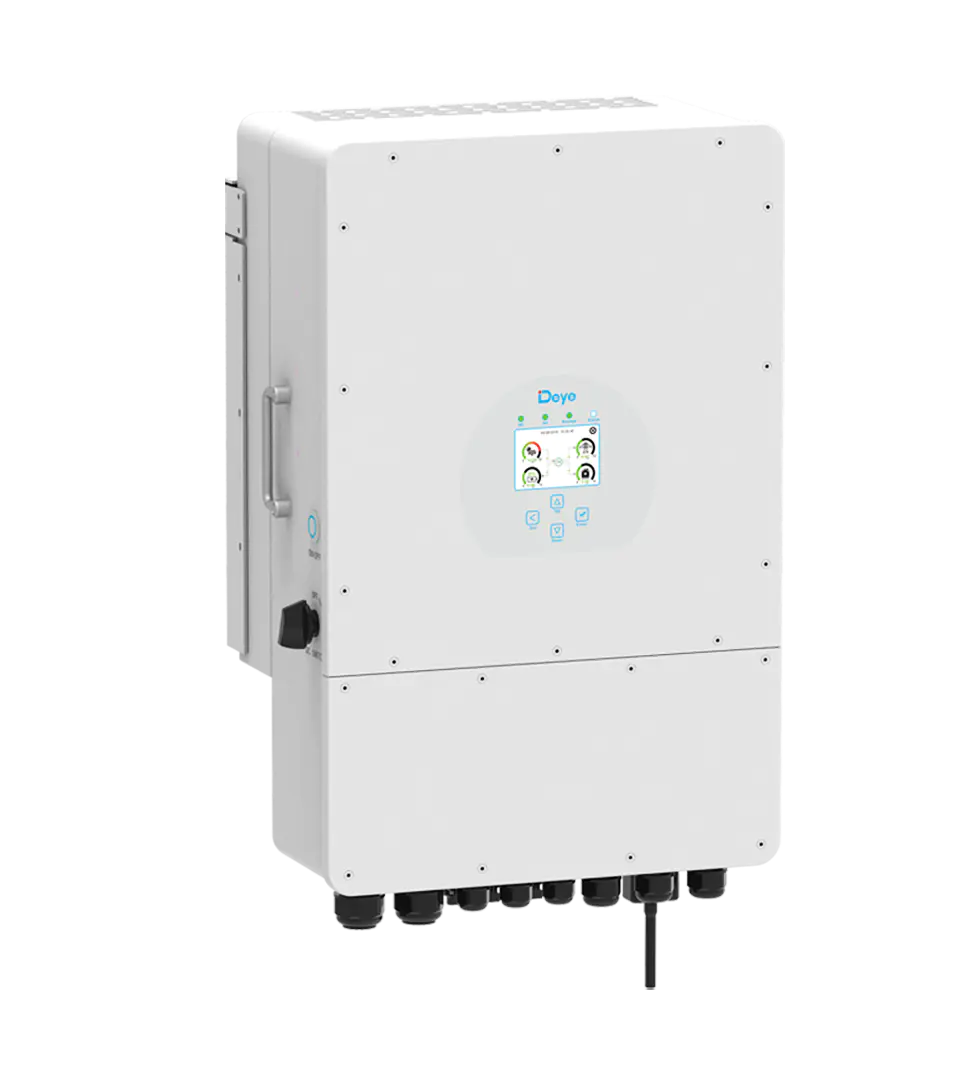

solar inverter

48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Max. charging/discharging current of 240A
DC couple and AC couple to retrofit existing solar system
Support storing energy from diesel generator
100% unbalanced output, each phase; Max. output up to
50% rated power
Max. 10pcs parallel for on-grid and off-grid operation
Support multiple batteries parallel

solar panel

All Black Solar Panel

  • 1. 500W Mono Facial
  • 2. Half Cell All Black
  • 3. SIZE:2094 X 1134 X 35MM(25 Year Warranty)
  • 4. (MOQ:1 Pallet 36pcs/Pallet)
PV system installation tools

PV system installation tools

  • 1. Disassemble Tool
  • 2. MC3 MC4 Crimper
  • 3. Wire Cable Cutter & Stripper
  • 4. MC4 Connector Assembly
MC4 Connector

MC4 Connector:

  • 1. Rated Current: 30A
  • 2. Rated Voltage: 1500VDC

PV Cable:

  • 1. AC Cable
  • 2. DC Switches
  • 3. AC Breaker
  • 4. AC/DC Combine Box
  • 5. PV Cable 4MM2 6MM2
Mounting Structure

Mounting Structure

  • 1. Ground Solar Mounting System
  • 2. Residential Roof(Pitched Roof)
  • 3. Car Parking Solar Mounting System
  • 4. Vertical Wall Solar Mounting System
  • 5. Commercial Roof(Flat Roof&Workshop Roof)
  • 6. All Aluminum Structure Solar Mounting System

How to install

1. Install the brackets

install1

2. Install the PV components

install2

3. PV Junction Box

install3

4. Inverter and Battery

install4

Dawnice advantage:

1.Intelligent and efficient:

  • Storage of surplus electricity, improve the use rate of PV power .
  • PV and mains can charge the battery
  • Flexible configuration of lead-acid and lithium-ion batteries
  • All in one design: charging, control , inverter
  • Compatible with off-grid and on-grid modes

2.Flexible operation:

  • Various communication :Wi-Fi/Ethernet/GPRS/RS485
  • Peak and valley time can be set, automatic peak cutting and valley filling.
  • Remote control by computer or phone
  • LCD display,easy operation

3. Stable and reliable.

  • High protectionand A grade battery cell
  • Smart BMS to ensure battery life
  • Heat dissipation, reduce failure rate
  • 4.EU/US MARKET AVAILABLE
  • Completely system , high transformation efficiency,
  • More than 6000 cycle life .
  • 48V low voltage battery, transformer isolation design
Main003
part1

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Dawnice 20KW Eu Verison 3 Phase Hybrid Solar Energy System
Parameters Model DW01LV-5KW-10 LP1-EU/US DW01LV-8KW-20 LP1-EU/US DW01LV-12KW-30 LP1-EU/US
Solar Panel Specific Model DW-SP-500 DW-SP-500 DW-SP-500
Maximum Power(Wp) 500 500 500
Open-Circuit Voltage(Voc)(V) 51.01 51.01 51.01
Operating Current (Imp)(A) 11.68 11.68 11.68
Short-Circuit Current (Isc)(A) 12.46 12.46 12.46
Quantity Pcs 10 16 24
Size(mm) 2220*1102*35
Weight(KG) 27
Warranty time 25 years
Certificate IEC61215:2016;IEC61730-1/-2:2016;
Storage Battery
Model
DW-10KWESS*1 DW-10KWESS*2 DW-10KWESS*3
Cell Type
Li-ion(LFP)
Nominal Voltage(V)
51.2
Normal Capacity
200AH
Total Energy(KWH)
10.24 20.48 30.72
Cycle times
6000
Communication
CAN /RS485
Standard Charging / Discharging Current
100A/100A
Size(mm)
360*190 x700 /SET
Weight(KG)
98/SET
Water proof
IP21
Warranty time
10 years
Certificate
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
Model
SUN-5K-SG04LP3-EU SUN-6K-SG04LP3-EU SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
120 150 190 210 240
Max. Discharging Current (A)
120 150 190 210 240
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Yes
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
6500 7800 10400 13000 15600
Rated PV Input Voltage (V)
550(160-800)
Start-up Voltage (V)
160
MPPT Voltage Range (V)
200-650
Full Load DC Voltage Range (V)
350-650
PV Input Current (A)
13+13 26+13
Max. PV ISC (A)
17+17 34+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1+1 2+1
