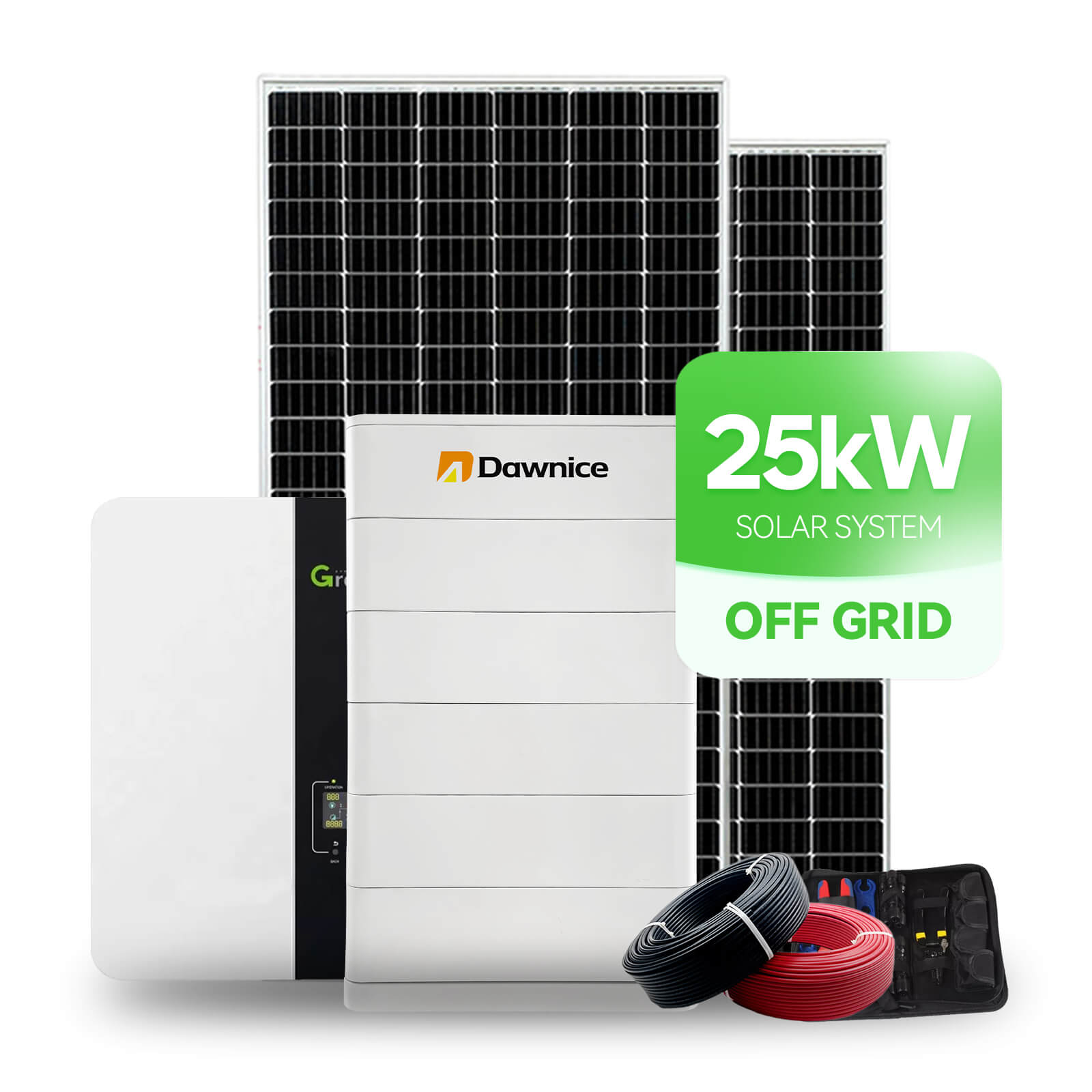

25kw off grid solar system

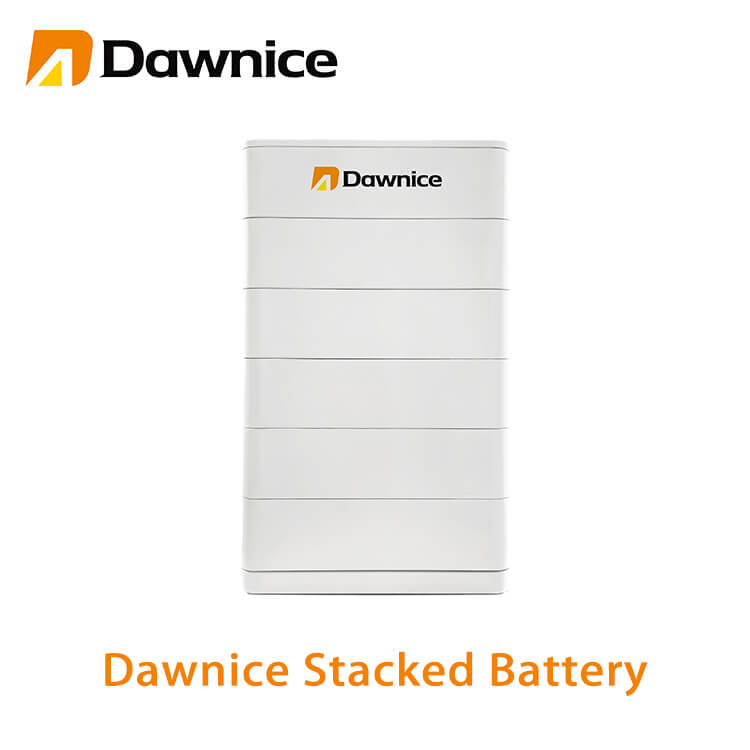

25kwh solar system battery

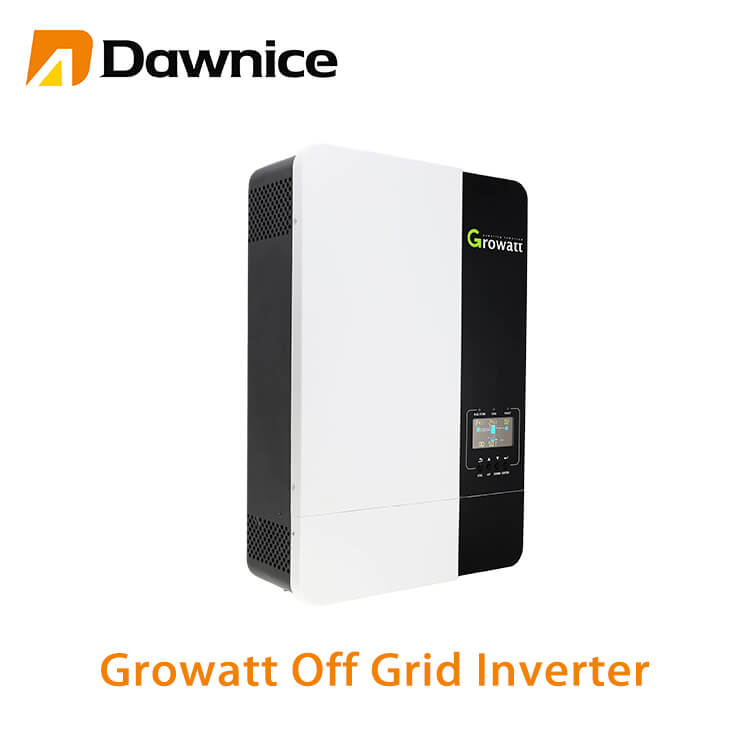

25kw off grid system inverter

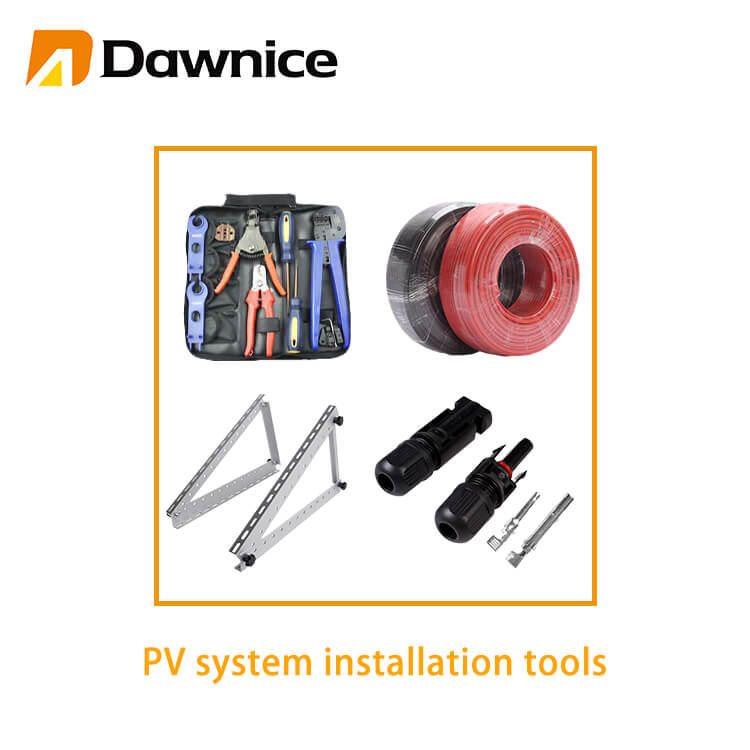

25kw PV system installation tools

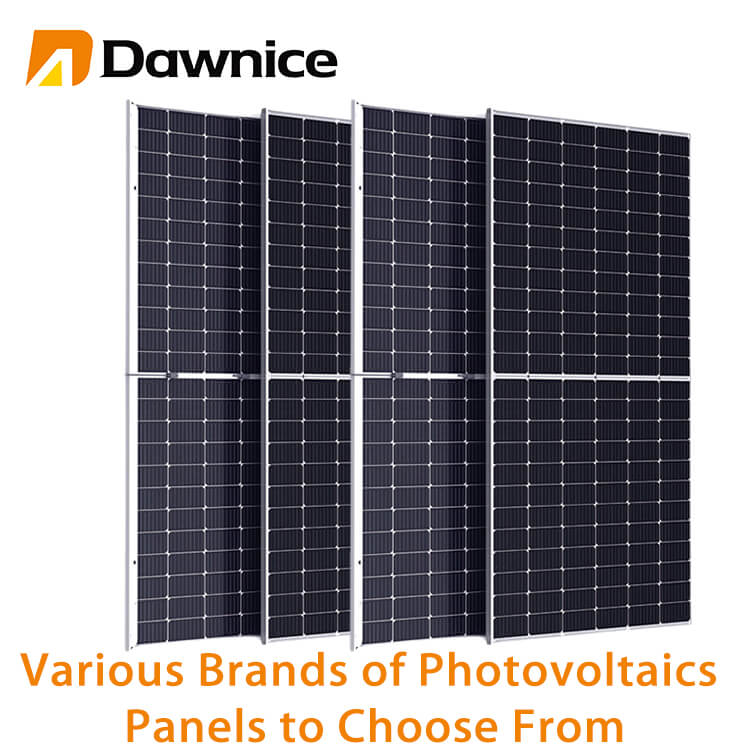

25kw solar panel

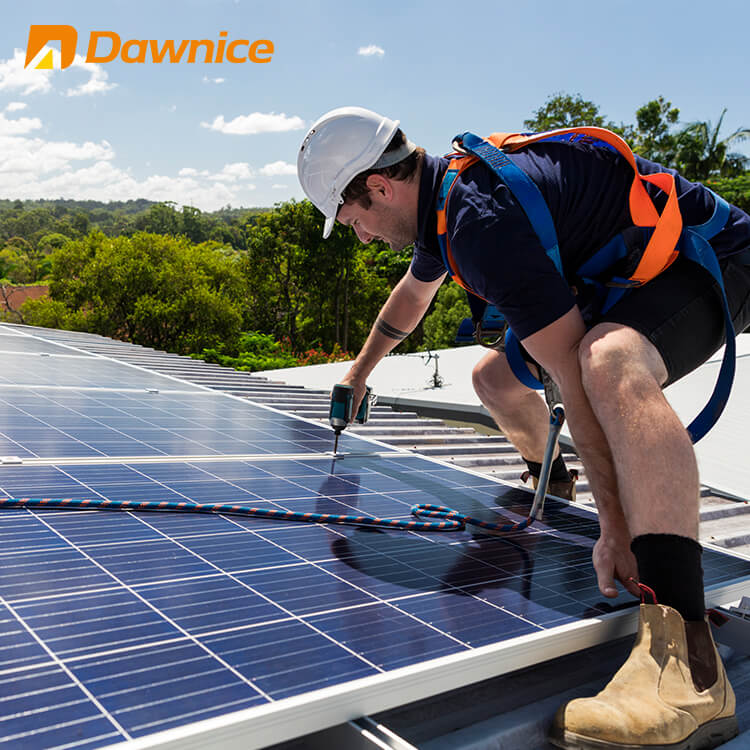

25kw solar system

Dawnice 25kw Home Off Grid Solar Power Systems with Lithium Battery

  • Product name: Dawnice 25kva Off Grid Solar System
  • Model Number: DW-25kw-Off Grid
  • Application: Home Electricity Generation, Backup Power, Electric Vehicle Charging, Energy Independence
  • Battery Type: Lithium Batteries, Lifepo4 Battery Cells, LFP
  • Inverter Type: 25kw Off Grid inverter with MPPT controller
  • Controller Type: MPPT
  • Mounting Type: Ground Mounting/Roof Mounting
  • PV Power (KW): 25
  • Output Frequency: 50HZ/60HZ
  • Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
  • Type: Off Grid solar system
  • Solar Solution:Customized
  • Warranty: 25 years

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

Factory Direct Price

MOQ 1 only. Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house solar system solution customization services.

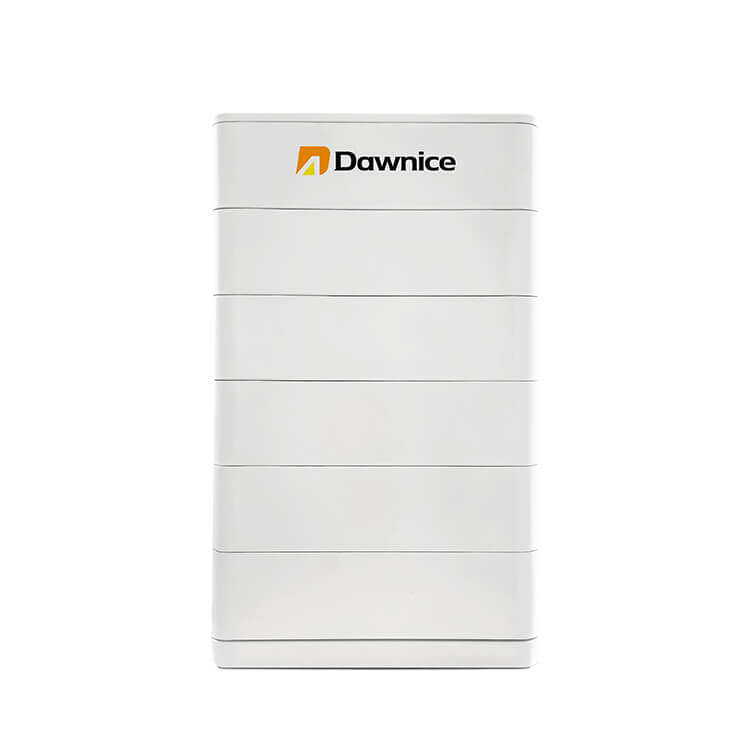

dawnice 25kwh stacked batteries

Dawnice 25kwh Stacked Batteries

  • HZEB-LCT-25kWh
  • Capacity: 25kwh
  • Grade A CATL Cells
  • With Bms Inside
  • 6000+ Cycle Time
  • 10 Years Design Life
  • Wifi Support wif, LCD display
  • Customizable rollers provide flexibility

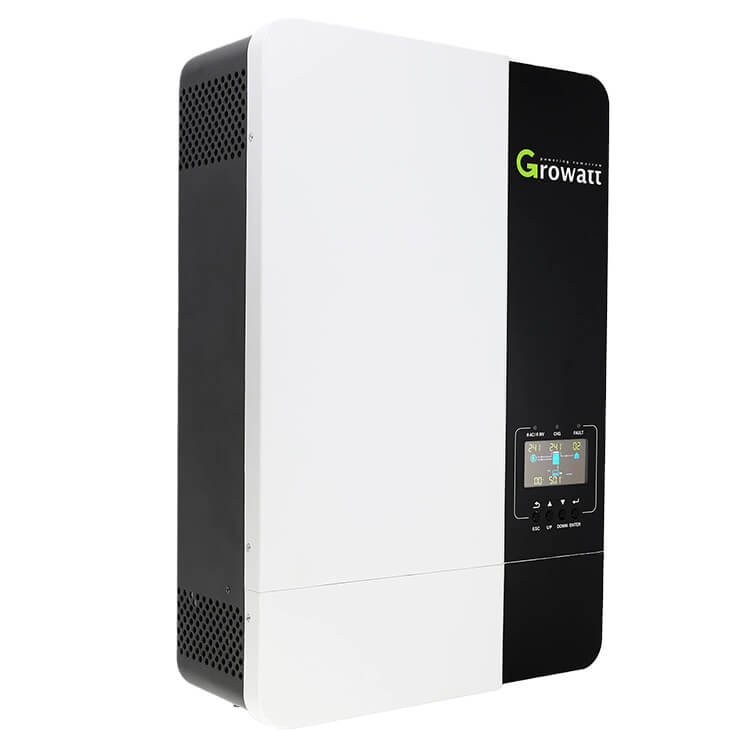

growatt off grid solar inverters

Solar Inverter

  • Model Number: 48V Growatt SPF 5000es*5
  • Battery Voltage:48VDC
  • Reted Power: 5000VA/ 5000W
  • Parallel Capability:6 units maximum
  • AC Voltage Regulation (Battery Mode)：230VAC +- 5% @ 50/60Hz
  • Surge Power：1000VA
panel

All Black Solar Panel

  • 1. Mono Facial Solar Panel
  • 2. 415W/500W/535W/555W
  • 3. Mainstream solar panel brands to choose from: Longi, JA, Trina, Jinko
  • 4. (MOQ:1 Pallet 36pcs/Pallet)
PV system installation tools

PV system installation tools

  • 1. Disassemble Tool
  • 2. MC3 MC4 Crimper
  • 3. Wire Cable Cutter & Stripper
  • 4. MC4 Connector Assembly
MC4 Connector

MC4 Connector:

  • 1. Rated Current: 30A
  • 2. Rated Voltage: 1500VDC

PV Cable:

  • 1. AC Cable
  • 2. DC Switches
  • 3. AC Breaker
  • 4. AC/DC Combine Box
  • 5. PV Cable 4MM2 6MM2
Mounting Structure

Mounting Structure

  • 1. Ground Solar Mounting System
  • 2. Residential Roof(Pitched Roof)
  • 3. Car Parking Solar Mounting System
  • 4. Vertical Wall Solar Mounting System
  • 5. Commercial Roof(Flat Roof&Workshop Roof)
  • 6. All Aluminum Structure Solar Mounting System

How to install

1. Install the brackets

install1

2. Install the PV components

install2

3. PV Junction Box

install3

4. Inverter and Battery

install4

Dawnice advantage:

1.Intelligent and efficient：

  • Storage of surplus electricity, improve the use rate of PV power .
  • PV and mains can charge the battery
  • Flexible configuration of lead-acid and lithium-ion batteries
  • All in one design: charging, control , inverter
  • Compatible with off-grid and on-grid modes

2.Flexible operation：

  • Various communication ：Wi-Fi/Ethernet/GPRS/RS485
  • Peak and valley time can be set, automatic peak cutting and valley filling.
  • Remote control by computer or phone
  • LCD display,easy operation

3. Stable and reliable.

  • High protectionand A grade battery cell
  • Smart BMS to ensure battery life
  • Heat dissipation, reduce failure rate
  • 4.EU/US MARKET AVAILABLE
  • Completely system , high transformation efficiency,
  • More than 6000 cycle life .
  • 48V low voltage battery, transformer isolation design
Main003
part1

What can Dawnice do?

  • High Quality Products
  • DDP Service
  • Friendly and Professional Customer Service
  • Solar system solution design
  • Solar inverter, lithium battery storage system also are available.
  • Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Parts Description Quantity
5KW 10KW 15KW 20KW 25KW 30KW
MPPT Controller Inverter Model:48V/5000W
Input：48VDC
AC Output：220V/50Hz, 5000W
Max Charge Current：80A		 1 PC 2 PC 3 PC 4 PC 5 PC 6 PC
Lifepo4 battery pack Model:48V 100AH
Rated Voltage：51.2V
Rated Capacity：100AH
Net Weight：45kg
DOD depth：100%		 1 PC 2 PC 3 PC 4 PC 5 PC 6 PC
PV Panel Model:PV380P
Mono Type Vmp:38V ;
Imp:9.19A; Voc：46V；
Isc：9.64A；
Rate Power：380W；
Size：1979*992*40mm
Weight：24.0 kg		 8 PC 16 PC 24 PC 32 PC 40 PC 48 PC
PV Panel Mounting
Bracket		 Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting 1 Set 1 Set 1 Set 1 Set 1 Set 1 Set
Power Distribution Box Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc 1 Set 1 Set 1 Set 1 Set 1 Set 1 Set
Cable Model:PV-1*6mm2
Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃		 40M 80M 120PCS 160PCS 200PCS 240PCS
PV Waterproof Connector Model:MC4
Rated Voltage: 1000V DC
Rated Current: 30A
IP Rate: IP67		 10 Pairs 20 Pairs 30 Pairs 40 Pairs 50 Pairs 60 Pairs

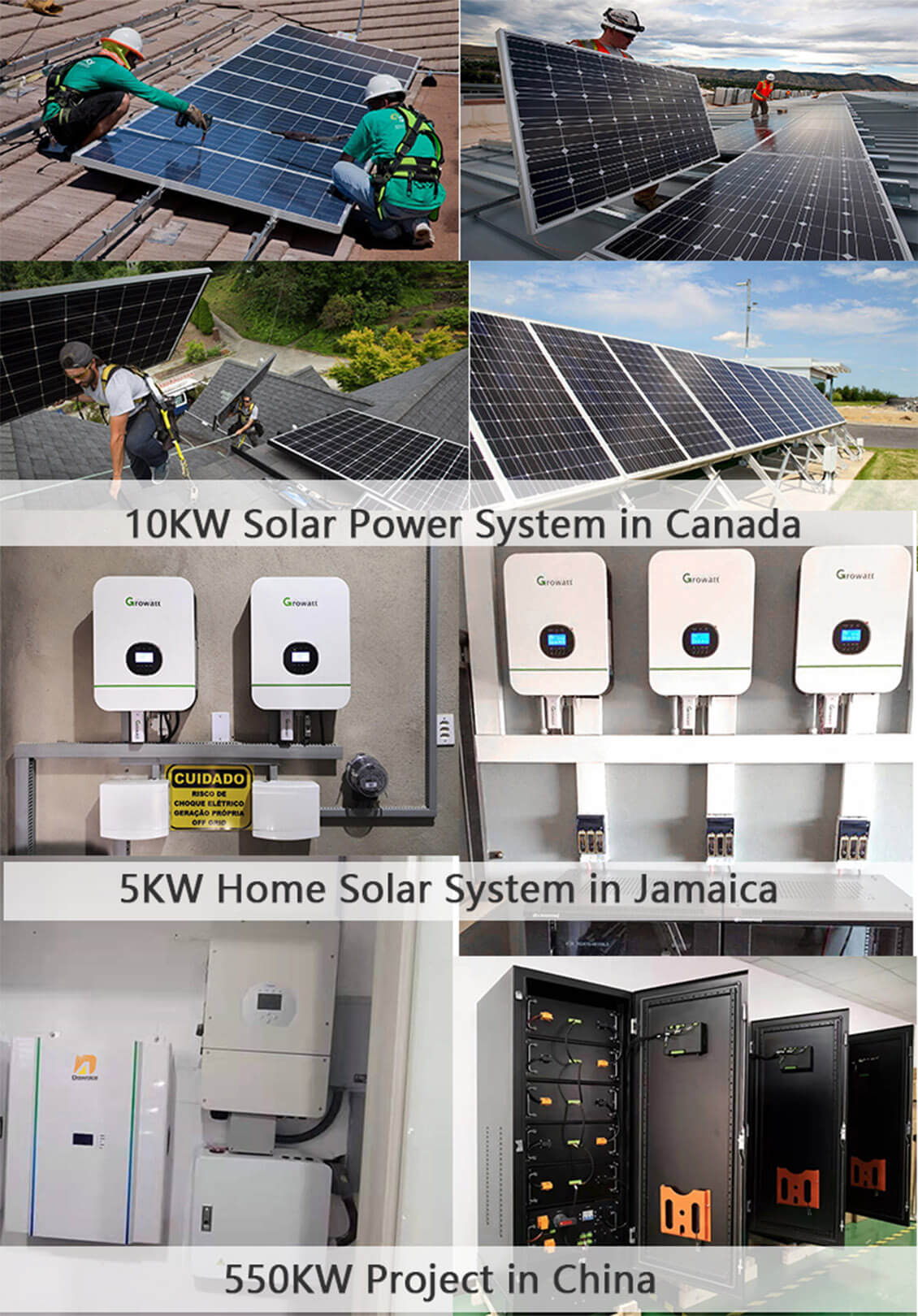

Home Solar Systems Projects

25kw pv systems projects
dawnice company profile

Yichun Dawnice Manufacture & Trade Co., Ltd.

Our technical and sales teams are ready to meet your requirements and answer any question involving the various applications that use our product’s.
