EU Verison 10KW Off Grid Solar Energy System
EU Verison 10KW Off Grid Solar Energy System
48V 200Ah 10Kwh Solar Energy Battery
- 1. Capacity: 51.2V 200Ah(10kwh)
- 2. Grade A CATL Cells
- 3. With Bms Inside
- 4. 6000+ Cycle Time
- 5. 10 Years Warranty
Solar Inverter
Model Number: 48V Growatt SPF 5000es
Battery Voltage:48VDC
Reted Power: 5000VA/ 5000W
Parallel Capability:6 units maximum
AC Voltage Regulation (Battery Mode)：230VAC +- 5% @ 50/60Hz
Surge Power：1000VA
All Black Solar Panel
- 1. 410W Mono Facial
- 2. Half Cell All Black
- 3. SIZE:1723*113*30MM(25 Year Warranty)
- 4. (MOQ:1 Pallet 36pcs/Pallet)
PV system installation tools
- 1. Disassemble Tool
- 2. MC3 MC4 Crimper
- 3. Wire Cable Cutter & Stripper
- 4. MC4 Connector Assembly
MC4 Connector:
- 1. Rated Current: 30A
- 2. Rated Voltage: 1500VDC
PV Cable:
- 1. AC Cable
- 2. DC Switches
- 3. AC Breaker
- 4. AC/DC Combine Box
- 5. PV Cable 4MM2 6MM2
Mounting Structure
- 1. Ground Solar Mounting System
- 2. Residential Roof(Pitched Roof)
- 3. Car Parking Solar Mounting System
- 4. Vertical Wall Solar Mounting System
- 5. Commercial Roof(Flat Roof&Workshop Roof)
- 6. All Aluminum Structure Solar Mounting System
How to install
1. Install the brackets
2. Install the PV components
3. PV Junction Box
4. Inverter and Battery
Dawnice advantage:
1.Intelligent and efficient：
2.Flexible operation：
3. Stable and reliable.
What can Dawnice do?
| Dawnice 10KW Eu Verison 1 Phase Hybrid Solar Energy System | |||||
| Parameters | Model | DW01LV-5KW-10 LP1-EU/US | DW01LV-8KW-20 LP1-EU/US | DW01LV-12KW-30 LP1-EU/US | |

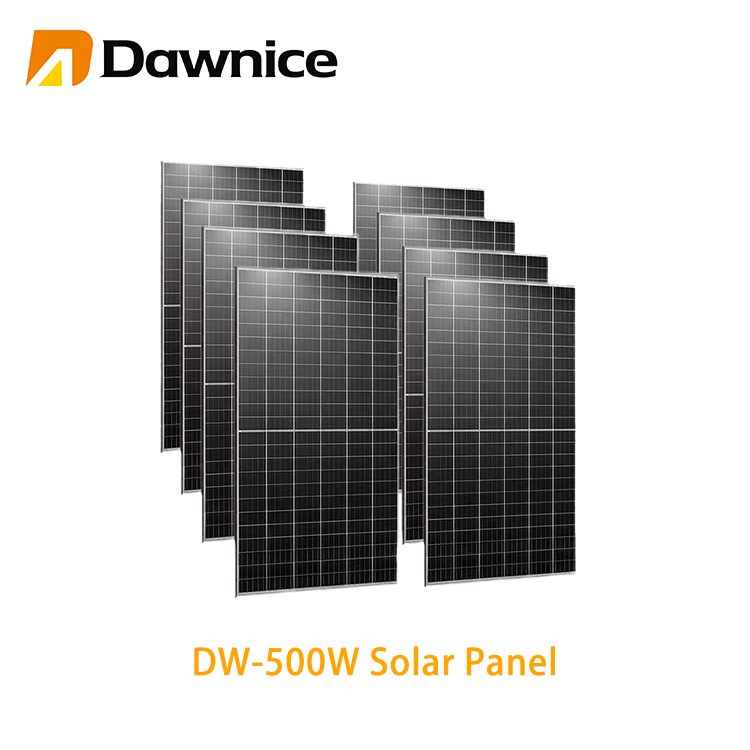

| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.68 | 11.68 | 11.68 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||
| Quantity | Pcs | 10 | 16 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
| Storage Battery |
Model
|
DW-10KWESS*1 | DW-10KWESS*2 | DW-10KWESS*3 |
|
Cell Type
|
Li-ion(LFP) | |||
|
Nominal Voltage（V）
|
51.2 | |||
|
Normal Capacity
|
200AH | |||
|
Total Energy(KWH)
|
10.24 | 20.48 | 30.72 | |
|
Cycle times
|
6000 | |||
|
Communication
|
CAN /RS485 | |||
|
Standard Charging / Discharging Current
|
100A/100A | |||
|
Size(mm)
|
360*190 x700 /SET | |||
|
Weight(KG)
|
98/SET | |||
|
Water proof
|
IP21 | |||
|
Warranty time
|
10 years | |||
|
Certificate
|
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) | |||
|
Inverter
|
||||
|
Model
|
SPF 5000 US | |||
|
Battery Voltage
|
48VDC | |||
|
Battery Type
|
Lithium/Lead-acid | |||
|
Inverter Output
|
||||
|
Reted Power
|
5000VA/ 5000W | |||
|
Parallel Capability
|
Yes,6 units maximum | |||
|
AC Voltage Regulation (Battery Mode)
|
230VAC +- 5% @ 50/60Hz | |||
|
Surge Power
|
1000VA | |||
|
Efficiency (Peak)
|
93% | |||
|
Waveform
|
Pure sine wave | |||
|
Transfer Time
|
10 ms typical 20 ms max |
|||
|
Solar Charger
|
||||
|
Maximum PV Array Power
|
6000W | |||
|
MPPT Range @ Operating Voltage
|
120VDC – 430VDC | |||
|
Maximum PV Array Open Circuit Voltage
|
450VDC | |||
|
Maximum Solar Charge Current
|
100A | |||
|
AC Charger
|
||||
|
Charge Current
|
80A | |||
|
AC Input Voltage
|
230 VAC | |||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers): 90-280 VAC (For Home Appliances) | |||
|
Frequency Range
|
50Hz/60Hz (Auto sensing) | |||
|
Physical
|
||||
|
Protection Degree
|
IP20 | |||
|
Dimension (D/W/H)
|
330*485*135mm | |||
|
Net Weight (kgs)
|
12kgs | |||
|
Operating Environment
|
||||
|
Humidity
|
5% to 95% RelativeHumidity(Non-condensing) | |||
|
Operating Temperature
|
0°C – 55℃ | |||
|
Storage Temperature
|
-15°℃ – 60℃ | |||
