Complete Hybrid Solar Energy Storage System
Complete Hybrid Solar Energy Storage System
Dawnice Complete Hybrid Solar Energy Storage System 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery
- Product name: Dawnice Hybrid/Off Grid/On Grid solar system
- Application: Home,Commercial,Industrial,Other
- Battery Type: Lithium Ion, Lithium Ion Battery Lithium-Polymer
- Inverter Type: Hybrid inverter with MPPT controller
- Controller Type: MPPT
- Mounting Type: Ground Mounting/Roof Mounting
PV Power (KW): 20KW-1MW
- Output Frequency: 50HZ/60HZ
- Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
- Type: Hybrid solar system
- Solar Solution:Customized
- Battery Input Voltage(V): 85-400(US);100-550(EU)

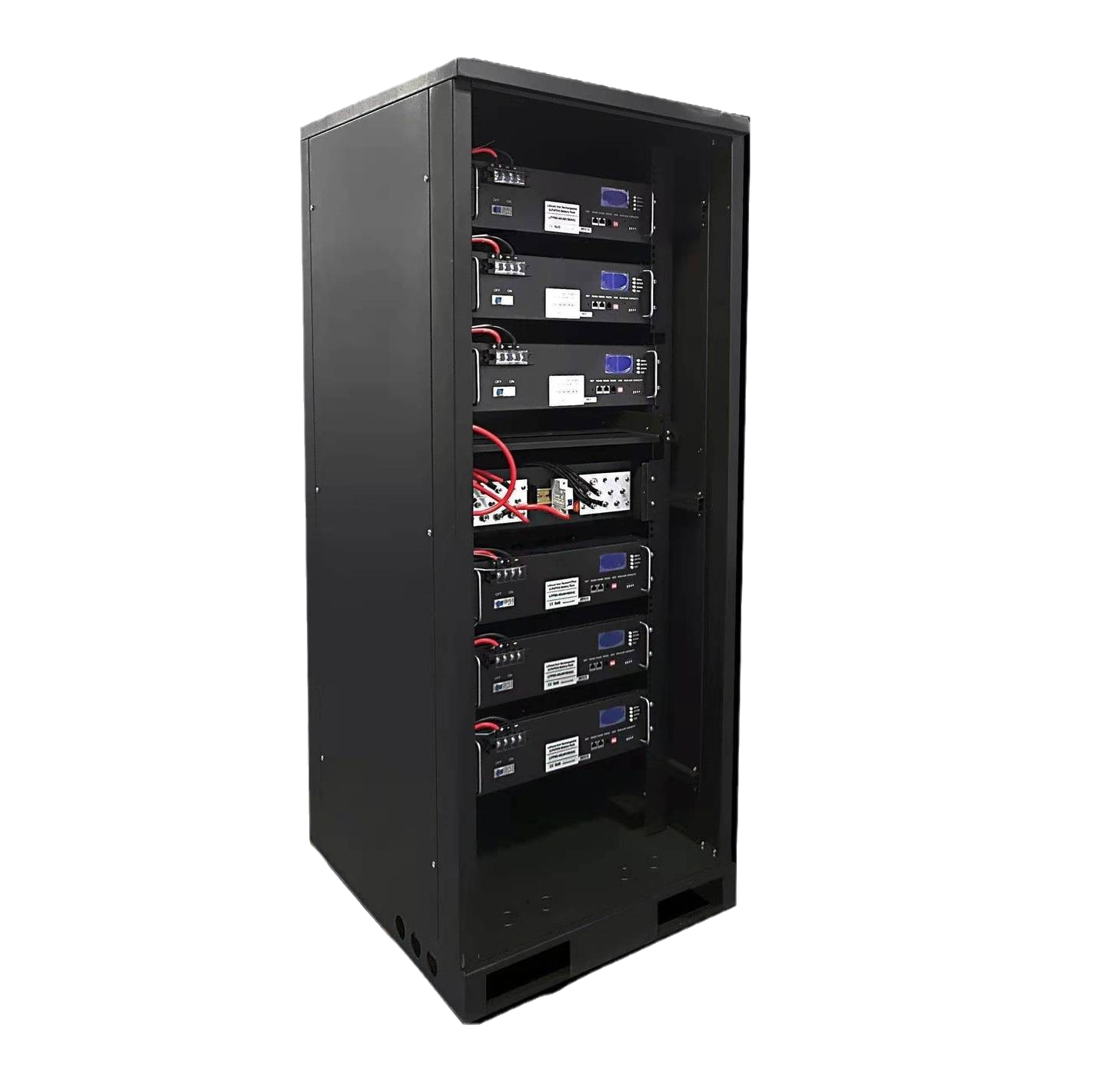

Dawnice Solar Energy Battery
- 1. Capacity: Customized
- 2. Grade A CATL Cells
- 3. With Bms Inside
- 4. 6000+ Cycle Time
- 5. 10 Years Warranty
Hybrid Solar Inverter
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system
All Black Solar Panel
- 1. 500W Mono Facial
- 2. Half Cell All Black
- 3. SIZE:2094 X 1134 X 35MM(25 Year Warranty)
- 4. (MOQ:1 Pallet 36pcs/Pallet)
PV system installation tools
- 1. Disassemble Tool
- 2. MC3 MC4 Crimper
- 3. Wire Cable Cutter & Stripper
- 4. MC4 Connector Assembly
MC4 Connector:
- 1. Rated Current: 30A
- 2. Rated Voltage: 1500VDC
PV Cable:
- 1. AC Cable
- 2. DC Switches
- 3. AC Breaker
- 4. AC/DC Combine Box
- 5. PV Cable 4MM2 6MM2
Mounting Structure
- 1. Ground Solar Mounting System
- 2. Residential Roof(Pitched Roof)
- 3. Car Parking Solar Mounting System
- 4. Vertical Wall Solar Mounting System
- 5. Commercial Roof(Flat Roof&Workshop Roof)
- 6. All Aluminum Structure Solar Mounting System
How to install
1. Install the brackets
2. Install the PV components
3. PV Junction Box
4. Inverter and Battery
Dawnice advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Dawnice do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
| Model | SP-30KW-HY | SP-50KW-HY | SE-100KW-HY |
| Half Cut Mono 550W Solar Panel | 55 Pieces | 91 Pieces | 180 Pieces |
| PV Combiner Box | 5 Input 1 output 1Piece | 7 Input 1 output 1Piece |
5 Input 1 output /3PCS 3 Input 1 output /1PCS |
| Hybrid Inverter | HPS30 | HPS50 | HPS100 |
| High Voltage LiFePo4 Battery Bank | 30Kwh | 50Kwh | 100Kwh |
| DC Cable 4mm2 | 500 meter | 1000 meter | 1500 meter |
| MC4 Connector | 20 Pairs | 30 Pairs | 90 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||
| Model | SP-120KW-HY | SP-150KW-HY | SP-200KW-HY |
| Half Cut Mono 550W Solar Panel | 216 Pieces | 264 Pieces | 360 Pieces |
| PV Combiner Box | 6 Input 1 output /3PCS 3 Input 1 output /1PCS |
8 Input 1 output /3PCS 3 Input 1 output /1PCS |
5 Input 1 output /6PCS 3 Input 1 output /2PCS |
| Hybrid Inverter | HPS120 | HPS150 | HPS100/2PCS |
| High Voltage LiFePo4 Battery Bank | 120Kwh | 150Kwh | 200Kwh |
| DC Cable 4mm2 | 1800 meter | 2400 meter | 3000 meter |
| MC4 Connector | 100 Pairs | 120 Pairs | 180 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||
| Model | SP-300KW-HY | SP-400KW-HY | SP-500KW-HY |
| Half Cut Mono 550W Solar Panel | 540 Pieces | 720 Pieces | 900 Pieces |
| PV Combiner Box | 5 Input 1 output /9PCS 3 Input 1 output /3PCS |
5 Input 1 output /12PCS 3 Input 1 output /4PCS |
5 Input 1 output /15PCS 3 Input 1 output /5PCS |
| Hybrid Inverter | HPS100/3PCS | HPS100/4PCS | HPS100/5PCS |
| High Voltage LiFePo4 Battery Bank | 300Kwh | 400Kwh | 500Kwh |
| DC Cable 4mm2 | 4500 meter | 6000 meter | 7500 meter |
| MC4 Connector | 270 Pairs | 360 Pairs | 450 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||
